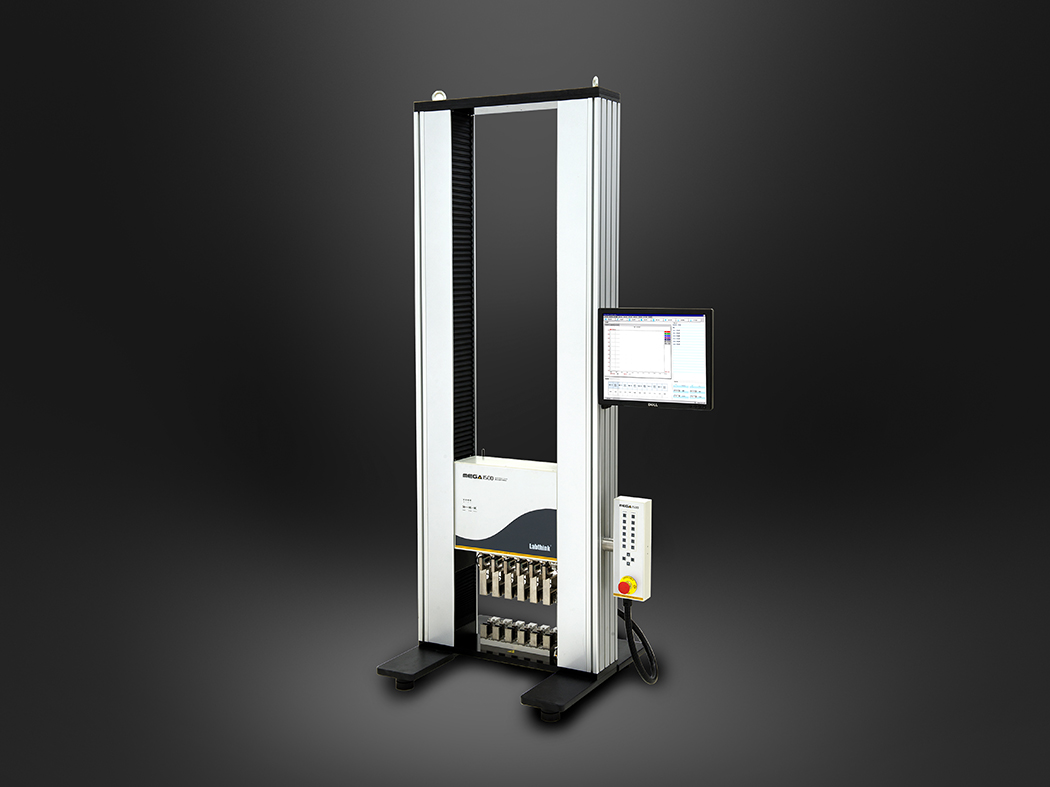

MEGA 1500 Auto Tensile Tester
MEGA 1500 Auto Tensile Tester is professionally designed for the determination of tensile strength, peel strength, tear strength, heat seal strength and adhesiveness of plastic films, composite films, flexible packaging materials, adhesives, adhesive tapes, pressure sensitive tapes, medical patches, protective films, release paper, rubber and paper, etc.
WhatsappOverview
Product Features
Professional Technology
- Double-column ball screw driving mechanism ensures high precision and steady working of the instrument
- Multiple testing modes are available including tensile strength, deformation, peeling and tearing, etc. which can meet the testing demands of the customers
- Stress at defined elongation, elastic modulus and stress and strain etc. can be analyzed
- 1200mm extra-long stroke satisfies the test needs of various materials with extreme deformation rate
- 6 working stations and pneumatic specimen clamping facilitate to test multiple specimens simultaneously
- Load cells with different test ranges and stepless speed change from 1 to 500mm/min can meet the requirements for various testing conditions
- The embedded computer controller system, with membrane switch is convenient for instrument operation
- Multi-level over-travel protection, overload protect, automatic position reset and intelligent error alerts for safe test operation
- Embedded computer controlled system effectively guarantees the system security and the reliability of data management as well as test operation
- The instrument can be operated with one monitor, one mouse and one keyboard, not requiring a computer
- The system is equipped with four USB ports and two net connection interfaces, which is convenient to data expansion
- Professional operating software supports superposition analysis of test curves of group specimens and statistical analysis of maximum, minimum, average and standard deviation of test results
Standards
This instrument conforms to multiple standards including:
ISO 37, ASTM E4, ASTM D882, ASTM D1938, ASTM D3330, ASTM F88, ASTM F904, GB 8808, GB/T 1040.1-2006, GB/T 1040.2-2006, GB/T 1040.3-2006, GB/T 1040.4-2006, GB/T 1040.5-2008, GB/T 4850-2002, GB/T 12914-2008, GB/T 17200, GB/T 16578.1-2008, GB/T 7122, GB/T 2790, GB/T 2791, GB/T 2792, GB/T 17590, JIS P8113, QB/T 2358, QB/T 1130
Applications
This instrument is equipped with more than 100 grips for tests of more than 1000 materials. And customization is also available for special material tests. Examples of instrument applications:
| Basic Applications | |
|---|---|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
| Extended Applications (Additional Accessories Required) |
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
Technical Specifications
| Specifications | MEGA 1500 |
|---|---|
| Load Cell Capacity | 500N (Standard) 50N, 100N, 250N, 1000N (Optional) |
| Accuracy | 1% FS |
| Test Speed | 1 ~ 500mm/min (Stepless Speed Change) |
| Number of Stations | 6 |
| Number of Specimens | 1 ~ 6 |
| Specimen Width | 25mm (Standard Sample Grip) |
| Clamping Way | Pneumatic Specimen Clamp |
| Stroke | 1200 mm |
| Gas Supply Pressure | 0.6MPa ~ 0.7MPa (Outside of Supply Scope) |
| Port Size | Φ6mm PU Tubing |
| Instrument Dimension | 850 mm (L) x 700 mm (W) x 2030 mm (H) |
| Power Supply | 220VAC 50Hz / 120VAC 60Hz |
| Net Weight | 168 kg |
Configurations
Standard Configurations
Instrument, Professional Software, Pedal Switch, LCD Monitor, Keyboard, Mouse, Pneumatic Clamping System, Wireless Data Interface, Wireless Data Module, Micro-printer, Standard Sample Grip (25mm)
Optional Parts
Sample Cutter SetNote 1, High Gain Antenna, Installing Support
Note
1. The gas supply port of the instrument is Φ6 mm PU tubing;
2. Customers will need to prepare gas supply.
