Implantable Device Coating Systems

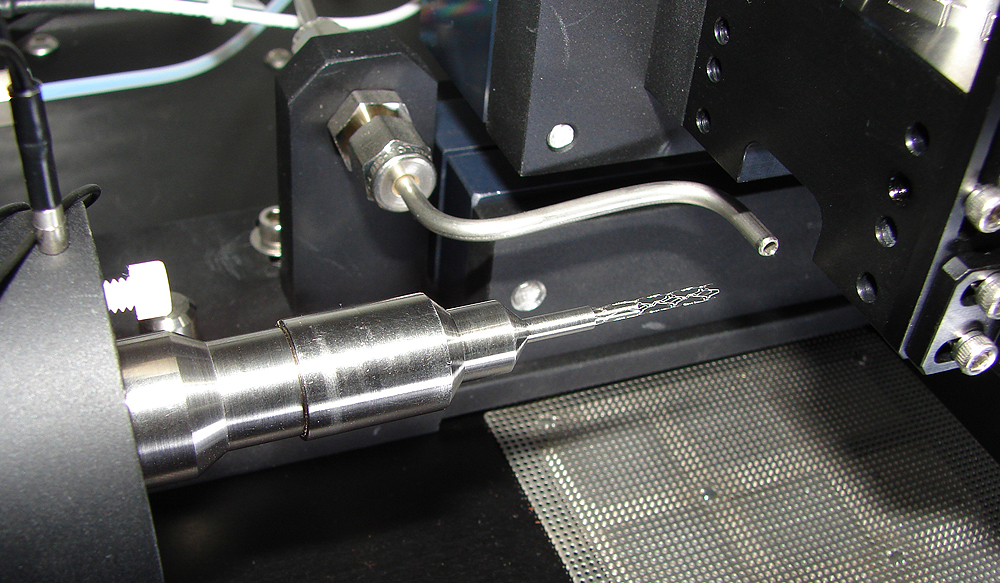

Uniform anti-restenosis drug coatings onto cardiac, peripheral, biodegradable, and other implantable stents.



• Highly controllable and repeatable spray.
• Non-clogging ultrasonic technology.
• Ability to spray at flow rates in the microliter per hour range.
• Droplet sizes as small as 9 microns (with organic solvents) with very tight drop distributions.
• Low velocity spray adheres to stents without bounceback or overspray.
• Proven process for coating implantable stents & other precision medical devices.
• Highly durable coatings will not flake or peel.



Configurations

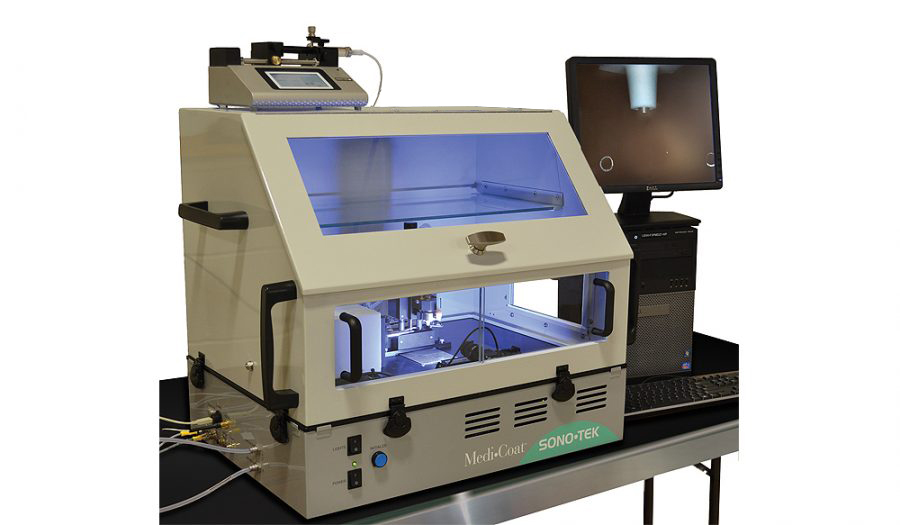

MediCoat DES 3000 – a sealed, exhausted benchtop glovebox enclosure for small volume production.

MediCoat DES 4000 – an alternate enclosure with process viewing windows and easy access front load door for applications that don’t require a glovebox environment.



Basic Specifications

DIMENSIONS: 939.8mm L x 628.7mm H x 50.8mm W (37” L x 24.75” H x 22.75” W)

WORK AREA: 69.85mm (2.75”) max linear movement

CONTROL: PC connect, Windows-based software

POWER REQUIREMENTS: 100-240 VAC, 50/60 Hz single phase, 2.5A (5x outlets)

AIR: 100-1000 kPa (15-150 PSI), clean, dry air or gas

MOTORS: 1.8 degree stepper drive

CERTIFICATION: CE

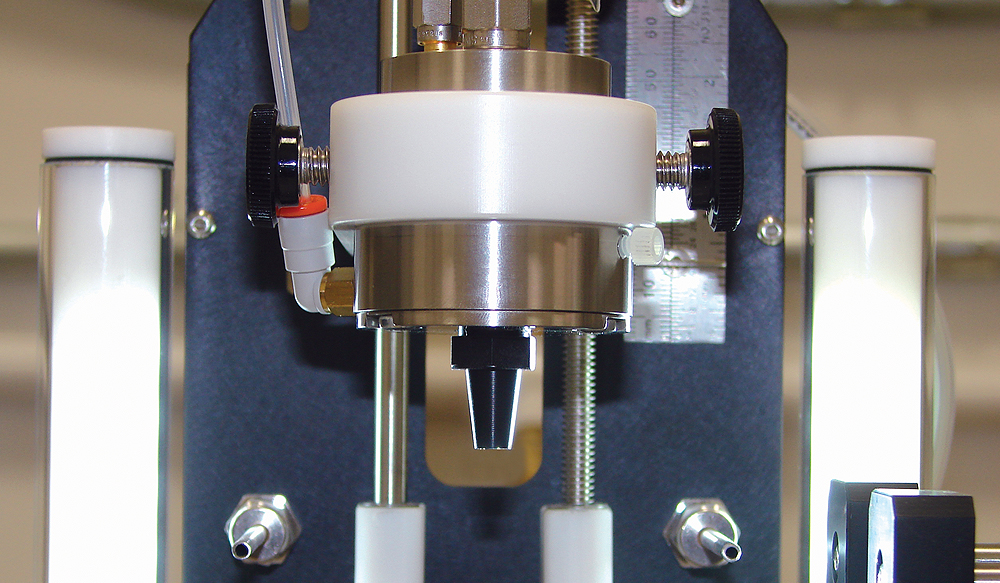

ULTRASONIC NOZZLE DESIGNS: MicroMist, AccuMist
