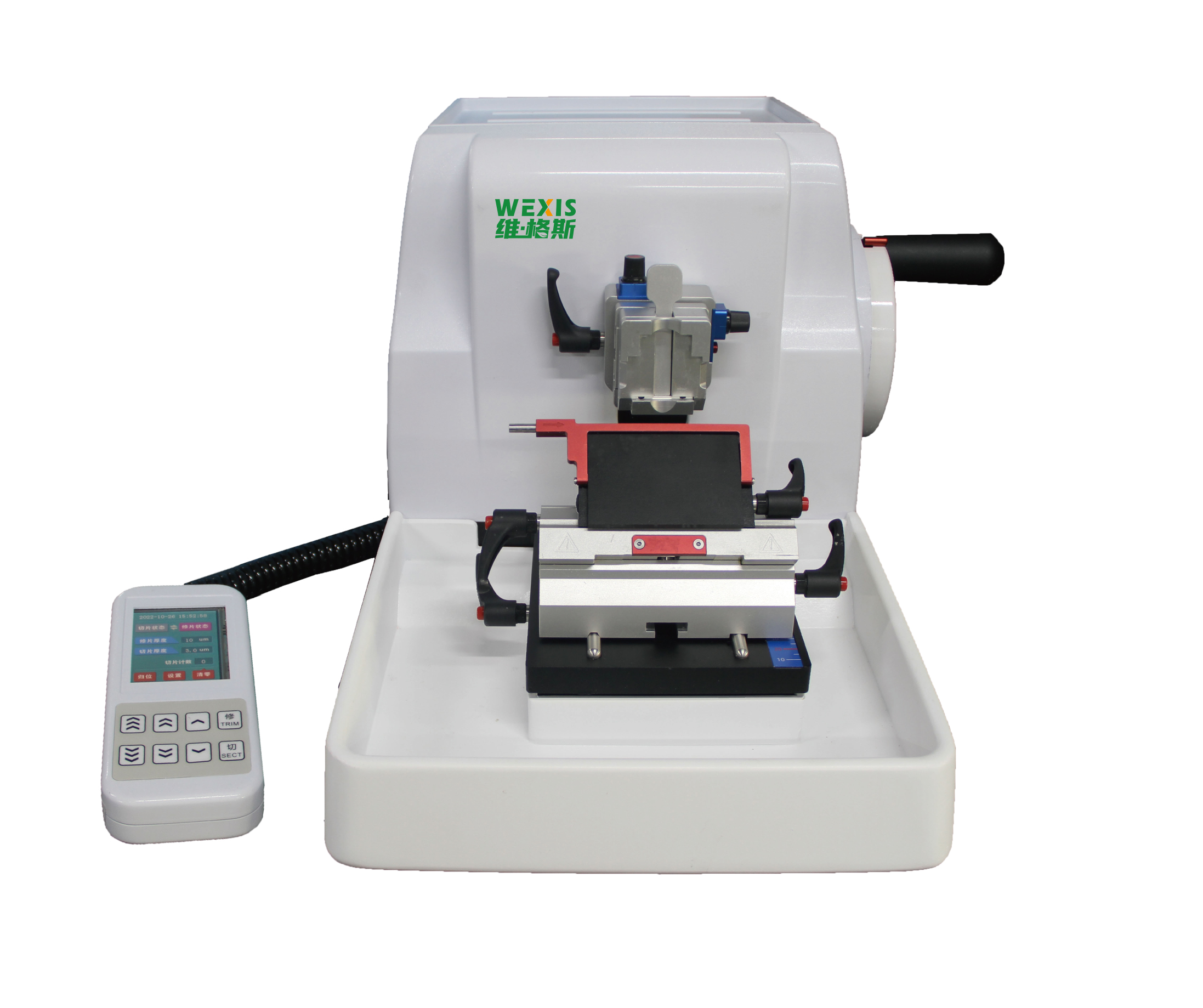

Microtome

Features

• Safe, convenient, comfortable operation function
• Advanced and presise micro system for specimen advance
• Ergonomic and unique design



Specifications

	M3050	M3055
Dimensions (L*W*H)	550mm*465mm*280mm	560mm*470mm*320mm
Net Weight	25kg	35kg
Technical Data
Section Thickness Range	1~60μm	1~60μm (best sectioning thickness3~5μm)
Selected Thickness	0.5μm~2μm, 0.5μm increments 2μm~10μm, 1μm increments 10μm~20μm, 2μm increments 20μm~60μm, 5μm increments Thickness Deviation: ±20%	1μm~10μm, 1μm increments 10μm~20μm, 2μm increments 20μm~60μm, 5μm increments Trim Thickness: 10μm and 30μm
Other	Specimen Horizontal Stroke: 23mm Specimen Vertical Strock: 53mm Specimen Clamp Adjustable Angle: 8° Blade Horizontal Stroke: 25mm	Specimen Retraction: about 60μm Coarse feed: Manual operation through coarse handwheel Specimen Positioning: Horizontal 8°, vertical 8° Max Specimen Size: 60*50*40(mm)
