AOTF-NIR Spectrometer (In-line Process)

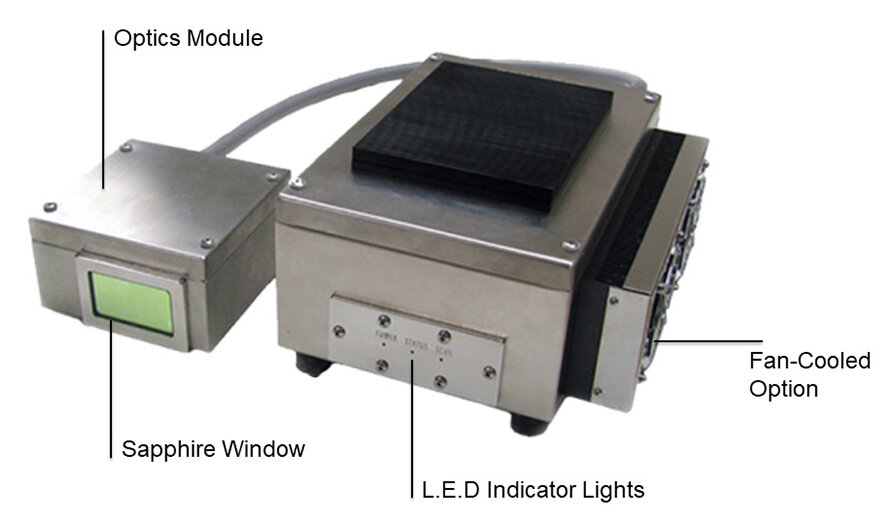

Brimrose’s Luminar 7030-IP55 Miniature Stainless Steel FreeSpace Process AOTF-NIR Analyzer is built to be placed directly into the production line. Its rugged design and solid-state technology allows an installation right into the production environment,and its miniature size allows implementation where space istight, such as small vacuum dryers, pipes, fluid beds, etc. This high speed NIR Analyzer is based on diffuse reflectance optics and can be integrated in a vast variety of housings to match your process area needs. Electronic Controller Unit is in a stainless steel box, with IP55 water tight  dust tight enclosure. Optical module is in a stainless steel box, water tight, dust tight.



Brimrose offers this rugged solid-state analyzer in a variety of different configurations to meet the high demand of different industries and applications. The Stainless Steel FreeSpace meets all requirements and standards for on-line applications in the pharmaceutical industry and is built to work reliably even in the

toughest environmental conditions. The integrated AOTF-NIR technology offers outstanding S/N ratio combined with ultra high speed scanning rates and makes it possible to analyze in real time, online and with laboratory accuracy.



Real-time Applications

• Blender Control:Real-time homogeneity monitoring and blending control process
• Pharmaceutical: 100% inspection of solids, gels, liquids and powders
• Agricultural/Food: On-line food analysis for fat, protein, moisture, starch, etc.
• Polymer: In-site measurement of pellets, films, and coatings
• Textile: Cotton/polyester ratio directly in the web
• Drying Process: Direct placement on spray or fluid-bed dryers
• Pulp & Paper: Thickness and coating analysis -on-line
• Tobacco: Measurement of nicotine, sugars,potassium, etc



Options:

• Input/Output (I/O) Capability
• “SEALED” Battery Operation
• Vortex Cooler with Heat Exchanger
• Wireless Communication
• Proximity Sensor / Gravity Switch



Accessories:

• 731-S: Stand with Rotating cup
