Luminar 5030 AOTF-NIR Spectrometer

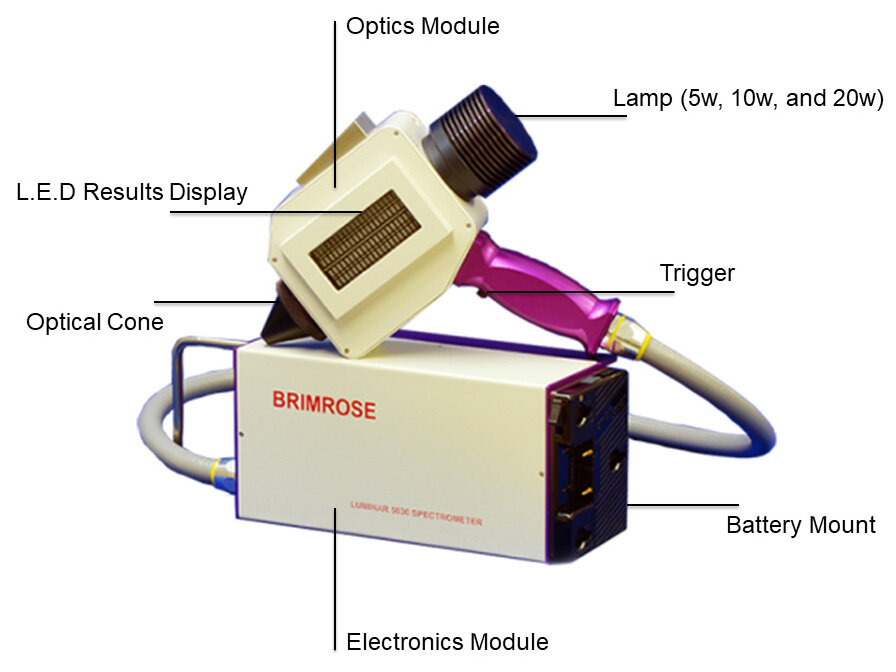

The extremely popular Brimrose solid-state Luminar 5030 is a miniature, hand-held AOTF-NIR analyzer. This portable platform does an exceptional job when conducting non-destructive and contact/noncontact analytical testing and inspection.
WhatsappOverview
The Brimrose Luminar 5030 AOTF-NIR Spectrometer is the most flexible unit. The 5030 has an aluminum housing and can be used in the following ways:
-
Hand-Held
-
Laboratory – with the use of a lab stand
-
Mounted – with the use of a mounting plate; when stainless steel not required
Designed with flexibility in mind, the Luminar 5030 has the widest range of customer applications including: Blending Uniformity, Fluid Bed Dryers, Material Identification, Peanut and Soybean Sorting, Hay and Alfalfa, Olives, Brix, etc.
Measurements
- Moisture
- Fat/Sugar/Protein
- Active Ingredients
- Coating Weight
- Blend Assay
- Recycled Plastic ID
Real-time Applications
- On-line Blend Uniformity
- FBD in Micro-encapsulation and Drying Process
- Incoming Raw Material Inspection
- Agricultural/Food: On-line food analysis for fat, protein, moisture, starch, etc.
- Polymer: Measurements of pellets and resins
- Paper and Textile Goods: On-Line thickness measurements
- Measurements of Tobacco and Tobacco Leaves
- Wine and Grape Applications: Measurements for Brix, pH, TA, etc
Technical Specification
| Spectral Range Options | 600-1100 nm, 850-1700 nm, 900-1800 nm, 1100-2300 nm (standard) |
| Measurement Modes | Diffuse Reflection, liquid transmission with probe attachment |
| Spectral Resolution | 2-10 nm |
| Wavelength Accuracy | ± 0.5 nm |
| Wavelength Repeatability | ± 0.01 nm |
| Wavelength Increment | Software Selectable 1-10 nm |
| Ambient Light Rejection | > 106 |
| S/N at 70% Range | < 30μabs in reflectance and transmission, for<5 seconds integration time |
| Wavelength Access Time | < 66 μsec |
| Photometric Range | 3.5 AU |
| Linearity | Better than 0.15% |
| Signal Digitalization | 16-bit A/D (1 part in 65,536) |
| Sampling Speed | 16,000 wavelength/sec |
| Sampling Area | Ø6 mm |
| Sampling Distance | 40 mm |
| Diagnostic | 10 Built-in monitoring sensors |
| Power Requirements | 12VDC, (24VDC special order), 90Watts, 110VAC 60Hz, 220VAC 50Hz |
| Cooling Options | Fan-cooled |
| Communication | Wireless, TCP/IP Ethernet |
| Enclosure (W x H x D) | Optics: 25 mm x 25 mm x 13 mm Electronics: 25 mm x 20 mm x 50 mm |
