AOTF-NIR Spectrometer (In-line Process)

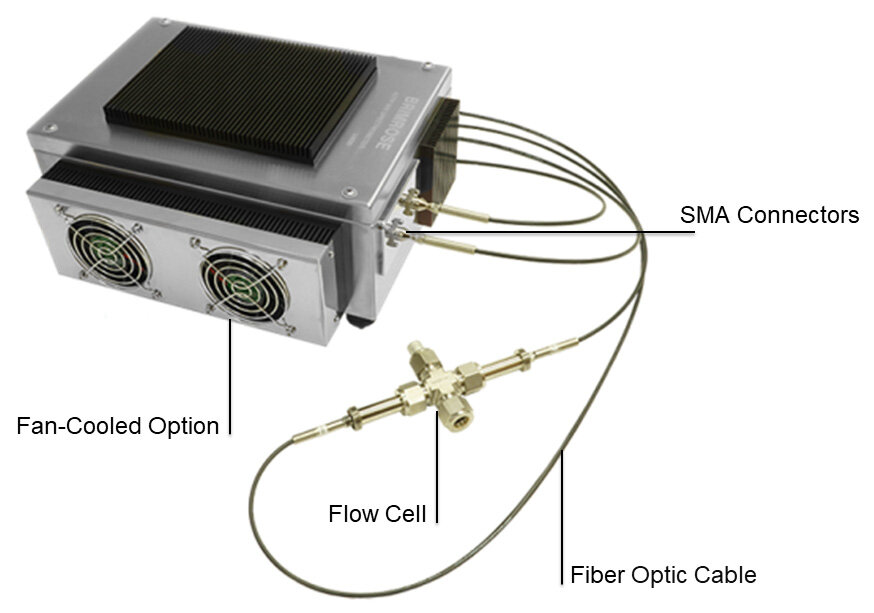

The Brimrose Luminar 4010 AOTF-NIR Spectrometer is designed and built for in-line or at-line measurement using a probe or flow cell together with fiber optics in a production facility. The 4010 has a stainless-steel housing. The fiber-optic configuration uses a fiber-optic cable to transmit the light from the spectrometer to a probe or flow cell that is mounted in position. The light returns through the fiber from the attachments for analysis. The length of the fiber-optic cable can be up to 300 m with almost no signal degradation.



Technical Specification

Spectral Range Options	850-1700 nm, 900-1800 nm, 1100-2300 nm (standard)
Measurement Modes	Transmission, Reflectance and Transflectance
Spectral Resolution	2-10 nm
Wavelength Accuracy	± 0.5 nm
Wavelength Repeatability	± 0.01 nm
Wavelength Increment	Software Selectable 1-10 nm
Ambient Light Rejection	> 106
S/N at 70% Range	< 30μabs in reflectance and transmission, for<5 seconds integration time
Wavelength Access Time	< 66 μsec
Photometric Range	3.5 AU
Linearity	Better than 0.15%
Signal Digitalization	16-bit A/D (1 part in 65,536)
Sampling Speed	16,000 wavelength/sec
Sampling Distance	40 mm (or 65 mm with Ø10 mm Sample Area)
Diagnostic	10 Built-in monitoring sensors
Power Requirements	12VDC, (24VDC special order), 90Watts, 110VAC 60Hz, 220VAC 50Hz
Cooling Options	Fan-cooled, Vortex-cooled
Communication	Wireless, OPC UA, Modbus (Serial or TCP), I/O with 4-20mA, TCP/IP Ethernet
Enclosure (W x H x D)	300 mm x 256 mm x 145 mm Stainless Steel NEMA 4X; Explosion-proof options available
