AOTF-NIR Spectrometer (In-line Process)

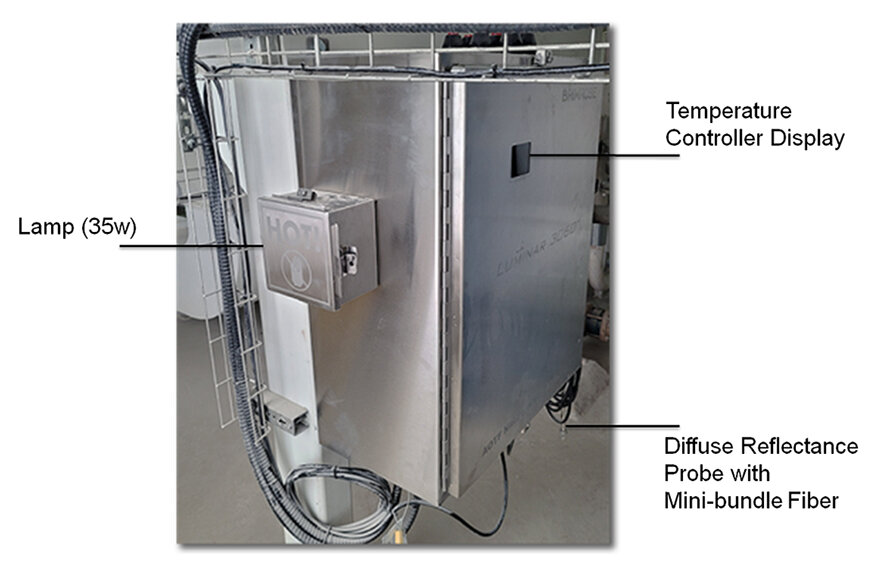

The Brimrose Luminar 3060 Multiplexer AOTF-NIR Spectrometer is designed for at-line measurement in a production facility with up to 16 active channels. Each channel is connected to a probe or flow cell with fiber-optic cable. A single spectrometer is multiplexed by rapidly switching the light source from each channel into the detector. All 16 channels can be sequentially analyzed in less than 1 minute.

The 3060 can be a cost-effective option when needing multiple test points and not wanting to purchase multiple 4030’s (or another Brimrose AOTF-NIR model). Choosing between a 4030 and 3060 depends upon the number of test points required and the location of each test point due to the length of fiber-optics required to be run.



Technical Specification

Spectral Range Options	850-1700 nm, 900-1800 nm, 1100-2300 nm (standard)
Measurement Modes	Transmission, Reflectance and Transflectance
Spectral Resolution	2-10 nm
Wavelength Accuracy	± 0.5 nm
Wavelength Repeatability	± 0.01 nm
Ambient Light Rejection	> 106
S/N at 70% Range (closed loop)	< 10μabs in transmission, and < 40μabs in reflectance
Non-Linearity	0.1 %
Signal Digitalization	16-bit A/D (1 part in 65,536)
Sampling Speed	16,000 wavelength/sec
Diagnostic	10 Built-in monitoring sensors
Optical Fiber Cables	Low OH Silica Fiber for Near-IR/Fluoride Fiber for Extended Near-IR
Channel Number	Up to 16
Switching Time	< 0.25sec for any channels
Power Requirements	24 VDC, 110Watts, 110VAC 60Hz, 220VAC 50 Hz
Cooling Options	Fan-cooled, A/C-cooled, Vortex-cooled, TE-cooled
Communication	OPC UA, Modbus (Serial or TCP), I/O with 4-20mA, TCP/IP Ethernet
Enclosure (W x H x D)	720 mm x 794 mm x 325 mm Stainless Steel NEMA 4X, 12X; Explosion-proof options available
