Overview

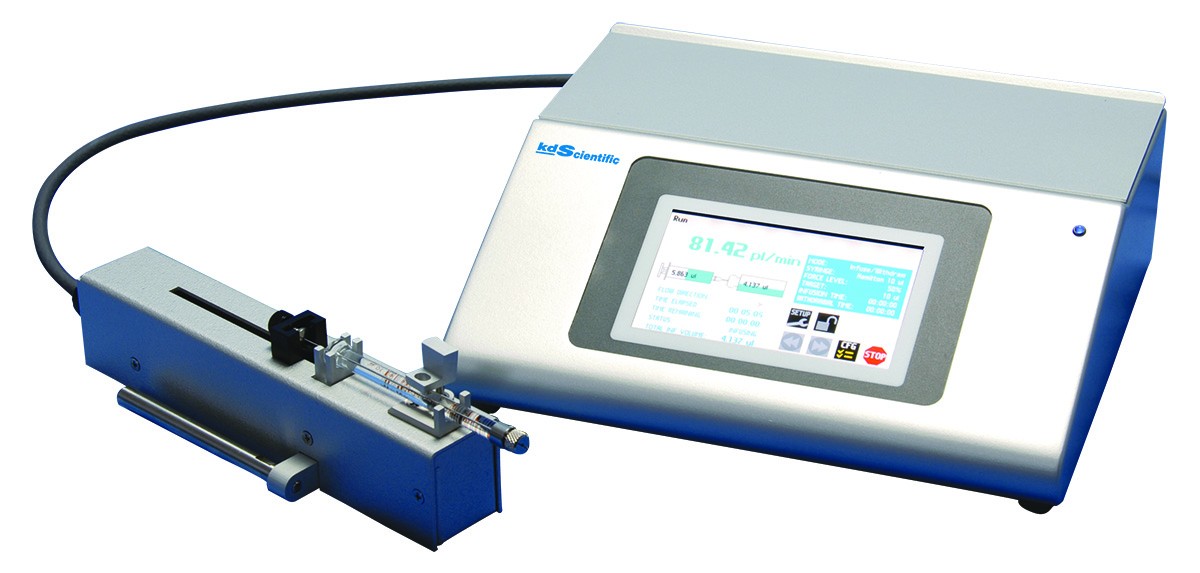

SINGLE SYRINGE, PROGRAMMABLE TOUCH SCREEN, NANOLITER, INFUSION/WITHDRAWAL PUMP
Single syringe infuse/withdraw with program option for 2 programs. 50 steps each. Holds one syringes from 0.5 µl to 1000 µl. User definable flow rates with selectable target volume or time values to control the total infusion volume.
Features
- Holds one syringe from 0.5 µl to 1000 µl
- High resolution color touch screen
- Unparalleled ease of use
- Touch pad "lock" feature
- LED light on front panel
- Full metal chassis
- Built in syringe table
- Up to 11 lb linear force
- Advanced microstepping techniques
- Built in RS485 interface
- USB port
- I/O & TTL interface
- Continuous mode of operation
- Spill dam
Specifications
| Accuracy |
±0.5% |
|---|---|
| Syringes (Min/Max) |
0.5 µl to 1000 µl |
| Flow Rate |
Minimum (0.5 µl syringe): 3.66 pl/min Maximum (1000 µl syringe): 3.818 ml/min |
| Display |
4.3 WQVGA TFT Color Display with Touchpad |
| Non-Volatile Memory |
Stores all Settings |
| Connectors |
RS485 - IEEE-1394 6 pos USB - Type B I/O & TTL - 15 pin D-Sub Connector Footswitch - mini phono jack |
| Linear Force (Max) |
5 kg (11 lb) @ 100% Force Selection |
| Drive Motor |
1.8° Stepper Motor |
| Motor Drive Control |
Microprocessor with 1/16 microstepping |
| Number of Microsteps per one rev.of Lead Screw |
3,200 |
| Step Rate - Minimum |
27.5 sec/µstep |
| Step Rate - Maximum |
52 usec/µstep |
| Pusher Travel Rate - Minimum |
0.433 µm/min |
| Pusher Travel Rate - Maximum |
228.97 mm/min |
| Input Power |
12-30 VDC |
| Input Power Connection |
2.5 mm ID x 5.5 mm OD male plug |
| Power |
100-240 VAC: 50/60 Hz, 50 W, 0.5 A fuse |
| Dimensions |
22.6 x 17.78 x 9.32 cm (9 x 7 x 3.67 in) |
| Weight |
1.96 kg (4.32 lb) |
| Operating Temperature |
4 degree C to 40 degree C (40 degree F to 104 degree F) |
| Storage Temperature |
-10 degree C to 70 degree C (14 degree F to 158 degree F) |
| Humidity |
20% to 80% RH non condensing |
| Mode of Operation |
Continuous |
| Classification |
Class 1 |
| Pollution Degree |
1 |
| Installation Category |
11 |
| Regulatory Certification |
CE, EU RoHS |
