Filtration System

Lafil series vacuum filtration system is the world’s first filtration system which combines vacuum source and filtration ware into one unit. Its compact design can save much bench space as compared with traditional platform. In addition, its fence-like design prevents filtration ware from being tipped over by user's carelessness. Lafil series vacuum filtration system can be used with a variety of filtration ware for different applications.



Features

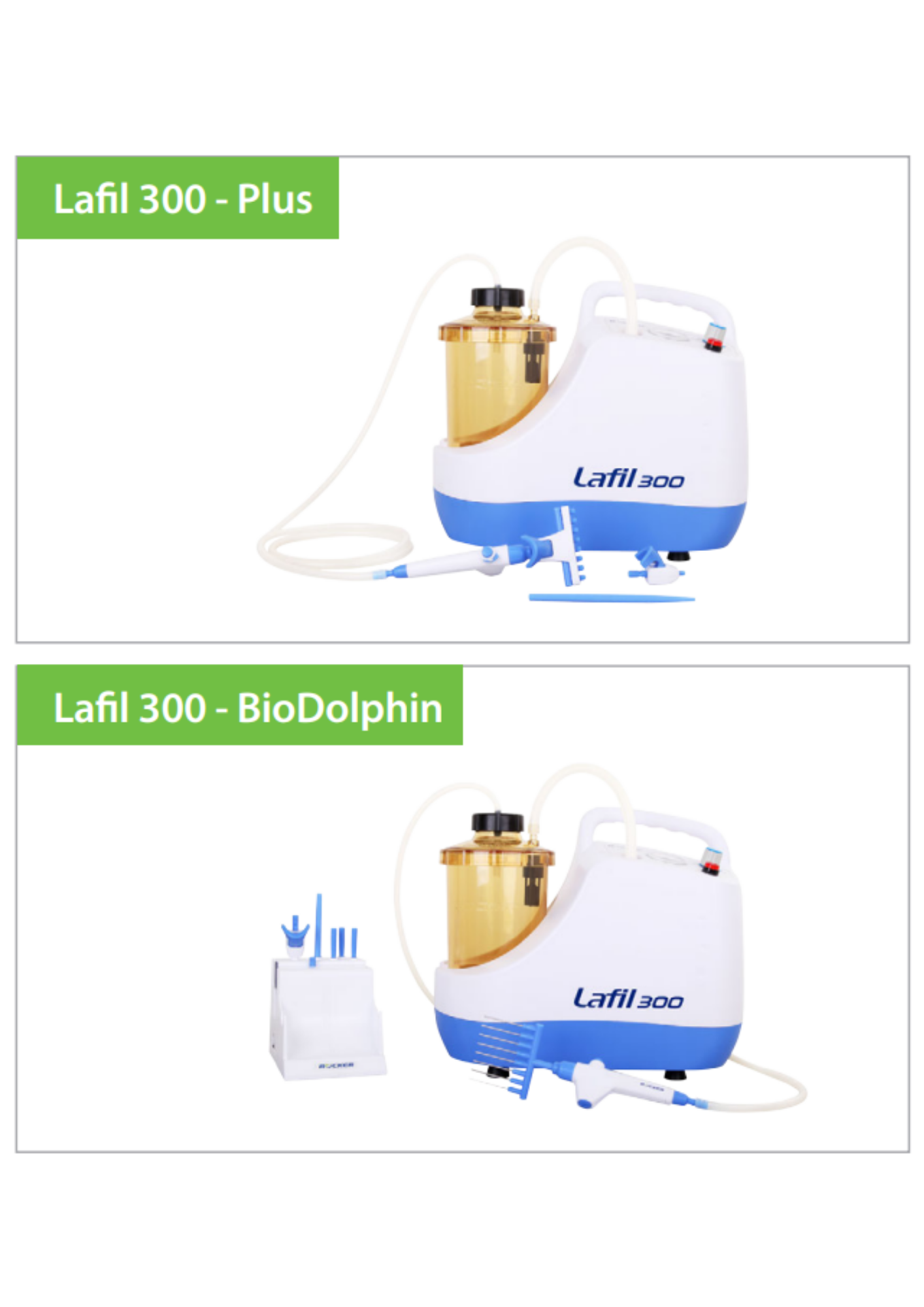

Lafil 300 - Plus / BioDolphin integrates vacuum source, waste bottle and suction kit into single one system. Saves 50% bench space.

(1)The fence-like platform design prevents negligence from tipping over the waste bottle.

(2)The overflow protection prevents the liquid from overflowing when bottle is full.

Built-in oil free vacuum pump, without the need of lubricant, regular oil changes and maintenance; with no oil pollution.

Convertible to space-saving vacuum filtration system with suitable filtration wares.

Autoclavable



Specification

Max. vacuum: 105 mbar

Max. flow rate: 20 L/min

Aspiration rate: 18 mL/sec

Waste bottle: 1200 ml PES vacuum bottle



Comes with:

• Handle

• 1-channel tip adaptor (150 mm)

• 1-channel tip adaptor with ejector

• 8-channel tip adaptor with ejector
