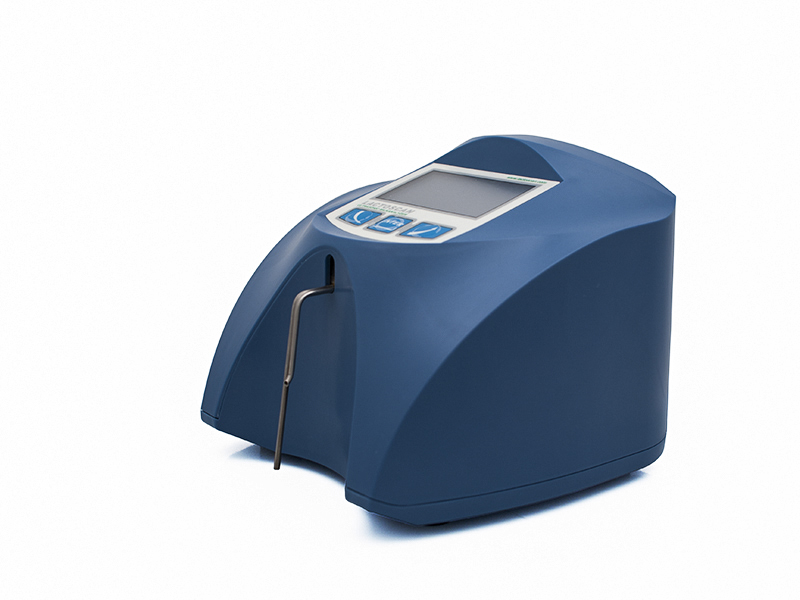

Lactoscan SP - Basic Model Milk Analyzer
Lactoscan SP is a user-friendly ultrasonic milk analyzer. Direct measurement of cold milk samples, starting at 5°C. No need of periodical calibration.
WhatsappOverview
Features
- User-friendly: simple in operation, maintenance, calibration and installation
-
60 samples/hour, 60 sec. measurement
-
For farms
-
Portable and compact design
- Very small quantity of milk required
- Low power consumption
- No use of hazardous chemicals
- Measuring accuracy adjustment can be done by the user RS 232 Interface
- ESC POS Printer Support
- Two samples self-calibration
- Easily readable results
- Possibility connecting pH probe
- Self calibration without computer
Calibrations
Cow, Sheep, UHT milk*
* On Customers request milk analyzer LACTOSCAN SP standard can be calibrated for measuring buffalo, whey, skimmed milk (0.01% FAT), concentrated milk (up to 1160 kg/m³ ), recovered milk, etc.
Measuring Parameters
|
Parameter |
Measure Range |
Accuracy |
|---|---|---|
|
FAT |
from 0.01% to 25% |
±0.06% |
|
Solids-non-fat (SNF) |
from 3% to 15% |
±0.15% |
|
Density |
from 1015kg/m³ to 1040kg/m³ |
±0.3kg/m³ |
|
Protein |
from 2% to 7% |
±0.15% |
|
Lactose |
from 0.01% to 6% |
±0.2% |
|
Added water |
from 0% to 70% |
±3 |
|
Milk sample temperature |
from 1°C to 40 °C |
±1% |
|
Freezing point |
from –0.4°C to –0.7°C |
±0.001% |
|
Salts |
from 0.4% to 1.5% |
±0.05% |
Environmental Conditions
- Ambient air temperature — 10–40°C (opt. 43 °C)
- Milk temperature —1°C –40°C
- Relative humidity — 30% – 80%
Electrical Parameters
- AC Power Supply voltage – 220V/110VDC
- Power Supply voltage – 12V to 14,2V
- Power Consumption – 30W max
Mechanical Parameters
- Dimensions (W x D x H) 175x175x150 mm
- Weight < 1,5 kg
