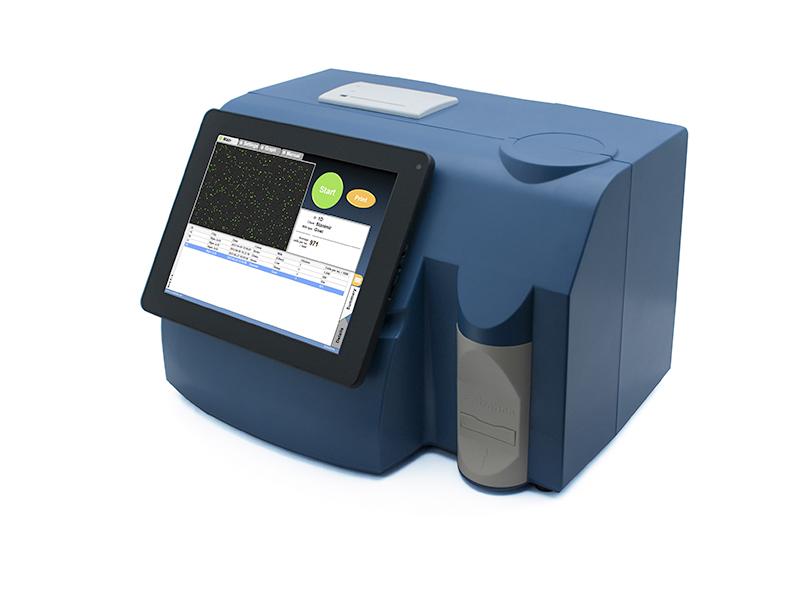

Somatic Cell Counter

Features

• High-end direct fluorescent, low magnification microscope with fast autofocus and cell counting software
• Fast, accurate, reliable somatic cells analysis of cow, sheep, goat, buffalo and human milk.
• Designed for use in Farms, Laboratories and Milk Collection Centers;
• Possibility of reference analysis
• Detects subclinical and clinical mastitis
• Lowest cost per test of Somatic Cell Counts
• Easy readable results within 20 to 60 seconds
• Takes a maximum of 60 images by computer controlled X:Y movements and then processes these by the image analysis software
• Stores unlimited number of record in the database
• Results are color coded
• Automatic software update and remote service
• Portable and compact design
• 10'' fully functional touchscreen tablet
• Embedded printer
• Wireless keyboard and mouse
• Use of 4 channels disposable LACTOCHIPS
• Low power consumption



Deviation range

Number of cell/mL	*CV%
100 000	5%
400 000	3%
600 000	2%

* Coefficient of Variation



Environmental Conditions

• Ambient air temperature: 10°C –40°C
• Milk temperature: 1°C – 40°C
• Relative humidity: 30% – 80%



Electrical Parameters

• AC Power Supply voltage: 220V/110V
• DC Power Supply voltage: 12V, 5 A
• Power Consumption: 60W max



Mechanical Parameters

• Dimensions (W x D x H): 390x300x260 mm
• Weight < 7.300 kg
• Plastic cover box
