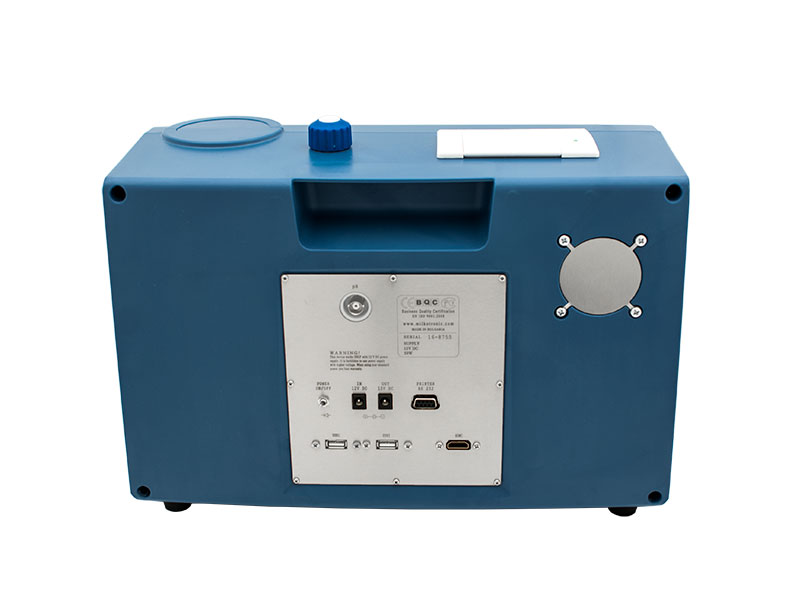

Milk Analyzer

Features

• User-friendly: simple in operation, maintenance, calibration and installation

• 60 (120 option) samples/hour, 60 (30) sec. measurement

• Designed for use in Laboratories and Milk Collection Centers;

• Integrated 7" fully functional display;

• Cleaning with peristaltic pump;

• Portable and compact design;
• Very small quantity of milk required;
• Low power consumption;
• No use of hazardous chemicals;
• Measuring accuracy adjustment can be done by the user RS232 Interface;
• ESC POS Printer Support;
• Two samples self-calibration;
• Easily readable results;
• Possibility of connecting weighing scale;
• Possibility of connecting pH probe;
• Integrated pH and conductivity measuring;
• Function Real time clock;
• USB;
• USB flash drive;
• Embedded Windows tablet.



Calibrations

Cow, UHT milk, Cream 45%*

* On Customers request milk analyzer LACTOSCAN MCC can be calibrated for measuring buffalo, whey, skimmed milk (0.01% FAT), concentrated milk (up to 1160 kg/m³ ), recovered milk, etc.



Measuring Parameters

Parameter	Measure Range	Accuracy
FAT	from 0.01% to 45%	±0.06%
Solids-non-fat (SNF)	from 3% to 40%	±0.15%
Density	from 1015kg/m³ to 1160kg/m³	±0.3kg/m³
Protein	from 2% to 15%	±0.15%
Lactose	from 0.01% to 20%	±0.2%
Added water	from 0% to 70%	±3
Milk sample temperature	from 1°C to 40 °C	±1%
Freezing point	from –0.4°C to –0.7°C	±0.001%
Salts	from 0.4% to 4%	±0.05%
pH	from 0 to 14	±0.05%
Conductivity	from 2mS/cm to 14mS/cm	±0.05%
Total solids	from 0% to 50%	±0.17%
Kilograms	from 0kg to 150 kg	±0.10kg





Environmental Conditions

• Ambient air temperature — 10°C – 40°C (option 43 °C)
• Milk temperature — 1°C – 40°C
• Relative humidity — 30% – 80%



Electrical Parameters

• AC Power Supply voltage – 220V/110VDC
• Power Supply voltage – 12V to 14,2V
• Power Consumption – 30W max



Mechanical Parameters

• Dimensions (W x D x H) 290x300x330 mm
• Weight < 5 kg
