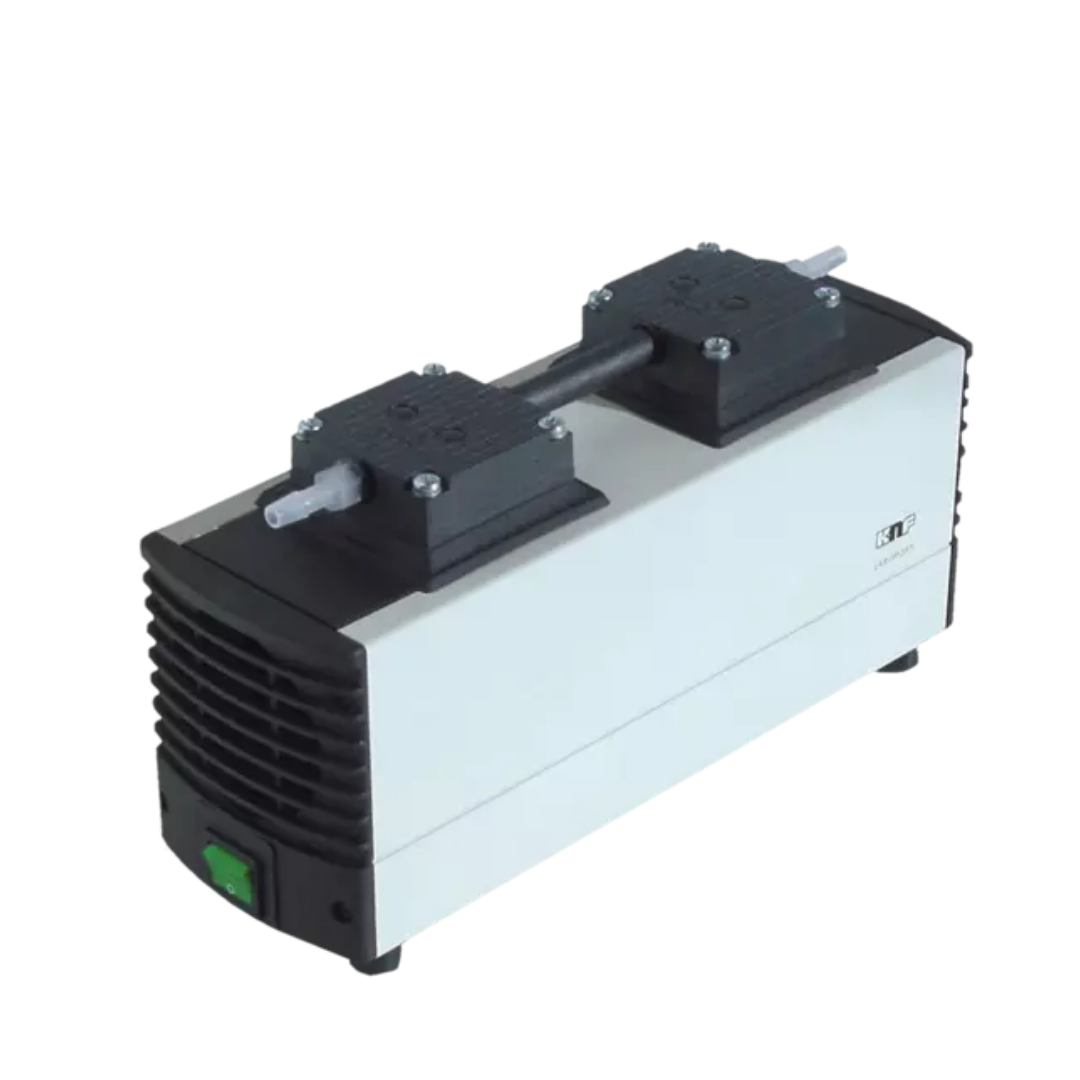

LABOPORT N 816.3 KT.18 - Mini Chemically-resistant Diaphragm Vacuum Pump
Chemically resistant, oil-free diaphragm vacuum pump used for a wide range of laboratory applications. It features PPS heads, PTFE-coated diaphragms and FFPM valves.
WhatsappOverview
Highlights
- Flow Rate (max.): 16 l/min
- Ultimate Vacuum (max.): 20 mbar (abs.)
- Clean, 100% oil-free operation
- Corrosion-resistant
- Compact, quiet and reliable
- Small footprint
Chemically resistant, oil-free diaphragm vacuum pump used for a wide range of laboratory applications. It features PPS heads, PTFE-coated diaphragms and FFPM valves.
Benefits
- Clean, 100% oil-free operation
- Corrosion-resistant
- Compact, quiet and reliable
- Small footprint
- Maintenance-free
Technical Details
| Flow Rate (max.) | 16 l/min |
| Ultimate Vacuum (max.) | 20 mbar (abs.) |
| Pressure (max.) | 0.5 bar (rel.) |
| Weight | 3.95 kg |
| Permissible Media Temperature | 5-40 °C |
| Permissible Ambient Temperature | 5-40 °C |
| Valve Material Options | FFPM |
| Diaphragm Material Options | PTFE coated |
| Pump Head Material Options | PPS |
Applications
- Filtration
- Degassing
- Desiccation
- Fluid aspiration
- Solid-phase extraction
Accessories & Spares
|
Accessories |
Order ID |
|
Silencer (only for outlet) |
000345 |
|
Hose connector G 1/8 ID 6 PVDF |
123363 |
|
Hose connector G 1/8 ID 6 PA |
000360 |
|
Hose connector G 1/8 ID 8 PA |
004975 |
|
Fine control valve (suction side) |
057830 |
|
Spares |
Order ID |
|
Spare parts kit |
056316 |
|
Hose connector NPT 1/8"-ID 6 (1/4") PP |
055956 |
