Bag-In / Bag-Out (BIBO)

Overview

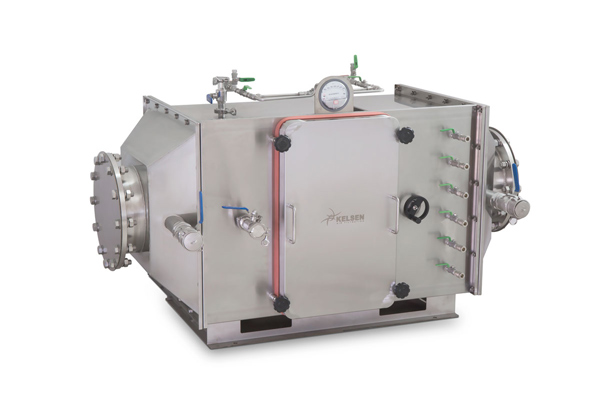

Bag-In /Bag-Out Housing (hereinafter referred to as BIBO) adopts fully enclosed bag entry and exit design, which can effectively isolate the pollution of radioactive gases, pathogens and toxic chemicals, provide users with a safe and reliable environment, effectively prevent secondary air pollution, and ensure the safety of operators.

Applications

Usually used in medical care, pharmaceutical engineering, microelectronics factory, nuclear industry and biochemical laboratories and other fields.
The design of single or multiple filtration system is adopted: the single filtration system has only one high efficiency filter; the multiple filtration system can increase the middle and middle efficiency filter section, the chemical filter section, the activated carbon filter section and the double high efficiency filter section.



Advantages

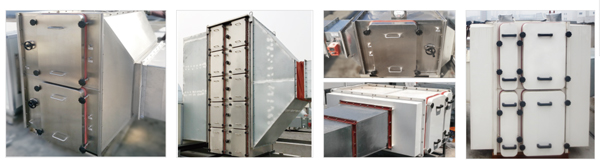

Modular design, compact structure, easy to transport, the use of building blocks stacked installation design, to meet the requirements of large volume air filtration, stacked up to three layers, can effectively save space.
The cabinet body is strong and has strong pressure resistance. The cabinet body is made of 304 stainless steel or high quality cold rolled steel (electrostatic spraying). The maximum resistance pressure is 2500 Pa positive pressure and 3000 Pa negative pressure.

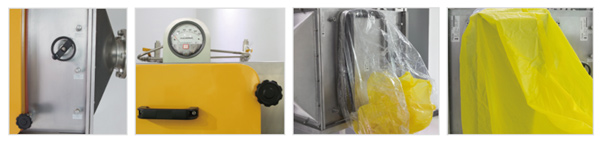

The replacement of the filter is simple and reliable. The filter is pressed by fast pressure, and the screw bolts are reduced. It is easy to operate in the bag and ensures the reliability of the pressure. Equipped with auxiliary mobile device, it is convenient to replace the filter.
Optional filter, high air volume or PTFE high strength filter, shock resistance, prevent filter damage. The maximum air volume of box filter can reach 4000 CMH and the maximum efficiency of PTFE can reach U16 (EN1822).



Technical Parameter

Model	HNH	1CH	4CH
Outer dimension	708 x 403 x 540	708 x 708 x 794	1416 x 1416 x 1694
Maximum airflow	1700 CMH/ 1000 CFM	3400 CMH/ 2000 CFM	13600 CMH/ 8000 CFM
High efficiency filtration function section	H14 (EN1822)	H14 (EN1822)	H14 (EN1822)
	610 x 305 x 292 mm – 1pcs	610 x 610 x 292 mm – 1pcs	610 x 610 x 292 mm – 4pcs
Primary and intermediate filtration function section	NA	GE (EN779)	F8 (EN779)
Activated carbon gas filtration function section	NA	NA	VOC
Box material	High quality cold rolled steel (electrostatic spraying) / SUS 304
PAO sampling port	SUS 304 Φ 10 mm
Differential pressure gauge / sensor	Optional 0 ~ 500 Pa
Instrument protection system	Optional
Biocontainment valve	Optional
Disinfection port	Optional
HEPA filter PAO scan section	Optional, automatic or manual
