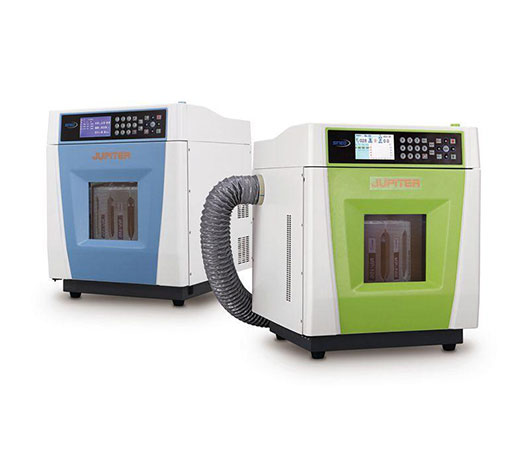

Microwave Extraction System

With more than 20 years experience inmicrowave chemistry instrument industry and the latest industrial technology,JUPITER series high throughput closed microwave digestion/extractionworkstation created can be widely used in routine laboratories and speciallyapplied under extreme conditions. The highest level of security measuresadopted such as the use of aerospace composite fiber vessel and safety bolt(patented), simple and smart operating software and the use of high-qualitymaterials such as corrosion-resistant ultra-long life industrial chamber showthat our company is always striving for perfection and makes breakthrough intechnology, process and materials. JUPITER series microwave digestion/extractionworkstation, integrated with the latest industrial technology and materials seta new example in the company, which together with MASTER series, forms thecompany's complete product line to meet the needs of various industries andstrive to provide customers the safety, convenient, efficient, durable productsand experience.



Features

• Satisfy the requirements of different samples' digestion / extraction processing;
• Up to 12 vessels high-throughput processing capacity;
• Exclusive patented multifunctional safety bolt design, instead ofexplosion-proof membrane and other consumables
• Aerospace composite fiber outer vessel-the highest level ofsecurity measures;
• Large-screen color software interface, clear and direct-viewing inoperation, bright in appearance and smart in performance.
• Connected to and controlled by computer, achieving secure remoteoperation, and unlimited program storage database;
• Small volume VS big chamber, which is advance in industrial designand provides perfect experience;
• Free lifetime warranty to the core components-magnetron of themicrowave Digestion System;
• 20 years of industry experience with no life injury;
• Won China’stop award-ECEIA GOLD four times and leads in the number of users nationally



Specifications

Power	220-240 VAC 50/60Hz  8A
Microwave frequency	2450MHz
Installed power	1800W
Maximum output power	1300W, non-pulse continuous automatic variable frequency control
Turntable design	Load 12 JP-100 closed digestion vessels at same time (standard configuration is 10 vessels
Pressure measurement and control system	Piezoelectric crystal pressure sensor, pressure control range :0-10MPa (1500 psi), accuracy ± 0.01MPa
Temperature measurement and control system	High-precision platinum resistor temperature sensor, temperature range :0-300°C, accuracy ±1°C
Outer vessel material	Explosion-proof outer vessel made of aerospace composite fiber
Inner vessel material	Modified TFM material
Software	JUPITER-A apply JSs software. 5 inch color screen display, USB connection, can save unlimited amount of digestion solution.   Simplified JUPITER-B apply JSb software. 5 inch screen display and up to 50 methods can be stored.
Chamber exhaust system	High-power anticorrosion axial fan, exhaust speed: 3.1 m3/min
Operating ambient temperature	0-40 °C
Working environment humidity	15-80% RH
Whole physical size	450*600*620mm (Width x Depth x Height)
Net weight:	42 KG
