Autoclave

Overview

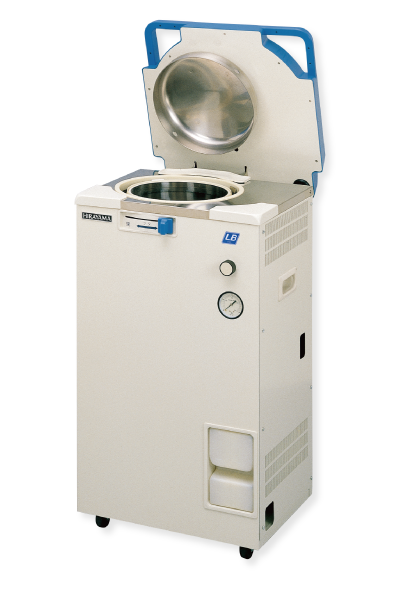

The lid can be opened, closed and locked easily and securely. Equipped with a safety function that locks the lid by detecting pressure and temperature.

[ Model / Effective capacity ]
HVE-50



Features & Functions

• Electro-mechanical lid lock system
• Dual interlock mechanism



Electro-mechanical lid lock system
The lid can be opened and closed easily and reliably with the one-touch lever.
A pressure seal method is used as a safety measure.



Dual interlock mechanism
The lid is locked by dually detecting the chamber pressure and chamber temperature during operation.
The lock state is maintained even if an operation is manually interrupted.



Pulse exhaust function
Fine exhaust is performed by automatically adjusting the instantaneous exhaust intervals according to the chamber pressure.



Memory function
Set contents can be registered for each mode.



Warming function that does not coagulate the agar media.
After sterilization, the agar media is kept warm to prevent it from coagulating.



Options for Upgrading a System

Recorder
(Image is a chart type recorder.)  - Chart type recorder: 6-point dotting  - Hybrid recorder: 8-point dotting Chart width: 100 mm Class 2 T-type thermocouple included

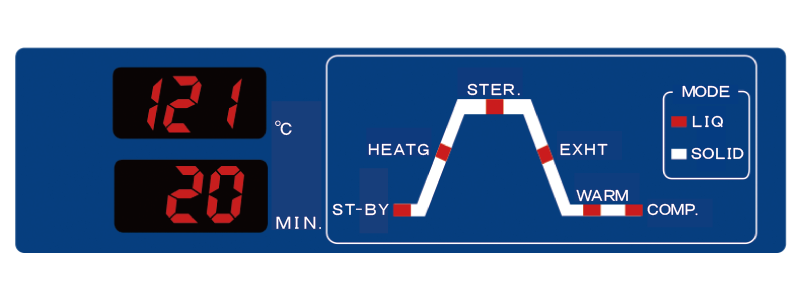

Operation Cycle of Each Mode

MODE 1: LIQUID with   warming		Heating		Sterilization		Variable exhaust		Warming
Main applications: Sterilization of agar medium (It is warmed at constant temperature to prevent clotting after sterilization.)
MODE 2: LIQUID without   warming		Heating		Sterilization		Variable exhaust
Main applications: Sterilization of liquid, which can withstand high temperature and high pressure steam such as water, culture medium, reagent, reagent solution, liquid medicine, etc. and sterilization of waste using a sterilization bag.
MODE 3 : SOLID		Heating		Sterilization		Forced exhaust
Main applications: Sterilization of instruments made of glass, ceramic, metal or rubber that can withstand high temperature, high pressure steam and rapid pressure reduction during exhaust.



Option

Stainless steel round wire basket	Sterilization bucket, stainless steel	Stainless steel round wire basket with solid bottom	Special sterilization bucket for medical waste
φ270 x H220 mm φ270 x H270 mm	φ270 x H220 mm φ270 x H270 mm	It is recommended to use when using a sterilization bag. A large capacity and bucket-shape bottom can prevent the chamber from being contaminated when a sterilization bag is broken. φ270 x H600 mm Use a sterilization bag without closing the mouth.	It is useful for sterilizing injection needles, pipettes, etc. that have sharp tips. Made of aluminum, with handle φ270 x H520 mm



Detergent for autoclave	Sterilization bag	Deodorizer
Detergent to remove culture media, water scale sticked to the inside of a chamber [Standard amount of use] 1 cap of detergent in 2 L of water (20 ml - 1%) Take out the materials at the time of use. 500 ml	Special structure reinforced film. Heat resistant temperature is 130°C [Type: A] 200 pcs 500 x 700 mm [Type: B] 200 pcs 620 x 820 mm Use it without closing the mouth.	Deodorizer for the "unpleasant odor" generated during sterilization of culture media etc. It melts smoothly in the sterilization process and exerts a deodorization effect. Standard amount of deodorant according to the autoclave capacity less than 40 L: 2-3 T at once from 40 L to 60 L: 4 T at once from 60 L to 100 L: 6 T at once 100 T / bottle



Sterilization tape, Sterilization label, Sterilization bag
Sterilization tape: Clear color change makes it easy to identify exposure to sterilization process. Sterilization label: Paste directly on the object to be sterilized, you can check the sterilization treatment. After sterilization, the letters "sterilized" appear and it can be easily distinguished from untreated materials. Sterilization bag: There are sterilization bags that are made of paper, roll type or one seal back type. Most of them are heat seal type, but tape seal type and aluminum plate seal type can be also available. Ask us for prices and more details.



Specifications

Product name		HICLAVE HVE series
Model		HVE-50
Effective capacity		50 L
Chamber size (φ x H mm)		300 x 710
Operation mode		3 modes (LIQUID with warming, LIQUID without warming, SOLID)
Temperature setting range	Sterilization	105°C  - 135°C  Variable
	Warming	45°C  - 80°C  Variable
	Lid lock	97°C , fixed
Time setting range	Sterilization	1 min - 250 min, Remaining time is displayed
	Warming	20 h, fixed
Exhaust setting		3 levels (Natural cooling, Pulse cooling, Forced cooling)
Maximum working pressure		0.255MPa
Thermometer		Digital display 5°C  - 137°C
Pressure gauge		Analog display 0MPa - 0.4MPa
Safety devices		Pressure safety valve, Over-current and earth leakage breaker, Low water cut off device
Alarms, error display		Low water heating, Temperature sensor wire disconnection, Over-temperature, Over-cool, Over-pressure, Abnormality in lid opening / closing lever lock
Outside dimensions (W x D x H mm)		547 x 532 x 1046
Weight (Approximately)		57 kg
Pressure vessel category		Small sized pressure vessel
Chamber material		Stainless steel (SUS304)
Power supply		AC 110V / 120V / 220V / 230V / 240V, 50Hz / 60Hz, (Specify voltage when ordering.)
Required power supply facility		2.0kW
Power connection		Ring terminal
Supplied accessories		Stainless steel wire basket, Bottom plate, Drainage hose, Exhaust hose, Exhaust bottle, Drain bottle, Caster stopper (2)
