Autoclave

Overview

The lid can be opened, closed and locked easily and securely. Equipped with a safety function that locks the lid by detecting pressure and temperature. Equipped with various functions including culture medium dissolution. We also offer a variety of options.

• A forced cooling fan is an optional unit.

[ Model / Effective capacity ]
HV-50               HV-85             HV-110



Features & Functions

• Electro-mechanical lid lock system
• Dual interlock mechanism
• Air removal time setting
• Forced cooling unit(option)



Electro-mechanical lid lock system
The lid can be opened and closed easily and reliably with the one-touch lever.
A pressure seal method is used as a safety measure.



Dual interlock mechanism
The lid is locked by dually detecting the chamber pressure and chamber temperature during operation.
The lock state is maintained even if an operation is manually interrupted.



Dual detection system for residual air
The residual air which may cause sterilization failure is dually detected to always maintain the appropriate sterilization conditions for loads.

• The residual air is detected at the process before pressurization (during operation of an air removal timer) and at the process of pressurization air exhaust.



Exhaust level can be set digitally.
Fine exhaust can be performed automatically, and fine exhaust adjustment is possible even in exhaust.



Memory function
Set contents can be registered for each mode.



EU model available
EU Model: Products compliant with european Standards (ENs)

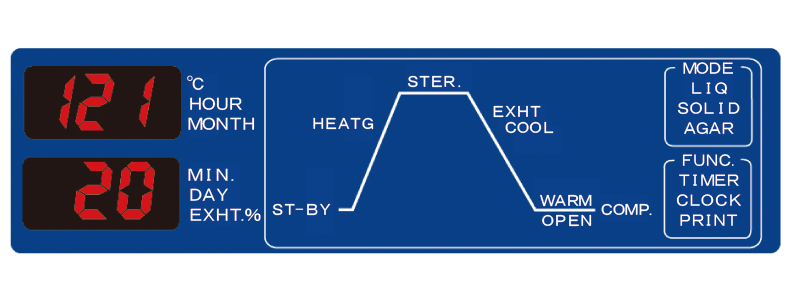

Operation Cycle of Each Mode

MODE 1:    LIQUID with warming		Heating		Sterilization		Variable exhaust		Warming
Main applications: Sterilization of agar medium (It is warmed at constant temperature to prevent clotting after sterilization.)
MODE 2:    LIQUID without warming		Heating		Sterilization		Variable exhaust
Main applications: Sterilization of liquid, which can withstand high temperature and high pressure steam such as water, culture medium, reagent, reagent solution, liquid medicine, etc. and sterilization of waste using a sterilization bag.
MODE 3:    SOLID		Heating		Sterilization		Forced exhaust
Main applications: Sterilization of instruments made of glass, ceramic, metal or rubber that can withstand high temperature, high pressure steam and rapid pressure reduction during exhaust.
MODE4:    DISSOLUTION		Heating		Warming
Main applications: Dissolution of agar medium (It is warmed at constant temperature to prevent clotting after heating.)



Options for Upgrading a System

Forced cooling unit (air-cool)	Floating sensor	Recorder	Printer	Automatic water supply
Used to shorten the time to unloading after sterilization	A sterilization timer operates after the temperature of the materials to be sterilzed reaches the set temperature.	(Image is a chart type recorder.) Chart type recorder: 6-point dotting Hybrid recorder: 8-point dotting Chart width: 100 mm Class 2 T-type thermocouple included	Thermal print type	Manual water supply to the chamber becomes unnecessar



Option

Stainless steel round wire basket	Sterilization bucket, stainless steel
[For HV-50] φ270 x H220 mm φ270 x H270 mm [For HV-85] φ380 x H285 mm [For HV-110] φ380 x H375 mm	[For HV-50] φ270 x H220 mm φ270 x H270 mm [For HV-85 - with holes / without holes] φ380 x H285 mm [For HV-110 - with holes / without holes] φ380 x H375 mm



Detergent for autoclave	Sterilization bag	Deodorizer
Detergent to remove culture media, water scale sticked to the inside of a chamber [Standard amount of use] 1 cap of detergent in 2 L of water (20 ml - 1%) Take out the materials at the time of use. 500 ml	Special structure reinforced film. Heat resistant temperature is 130°C [Type: A] 200 pcs 500 x 700 mm [Type: B] 200 pcs 620 x 820 mm Use it without closing the mouth.	Deodorizer for the "unpleasant odor" generated during sterilization of culture media etc. It melts smoothly in the sterilization process and exerts a deodorization effect. Standard amount of deodorant according to the autoclave capacity less than 40 L: 2-3 T at once from 40 L to 60 L: 4 T at once from 60 L to 100 L: 6 T at once 100 T / bottle





Sterilization tape, Sterilization label, Sterilization bag
Sterilization tape: Clear color change makes it easy to identify exposure to sterilization process. Sterilization label: Paste directly on the object to be sterilized, you can check the sterilization treatment. After sterilization, the letters "sterilized" appear and it can be easily distinguished from untreated materials. Sterilization bag: There are sterilization bags that are made of paper, roll type or one seal back type. Most of them are heat seal type, but tape seal type and aluminum plate seal type can be also available. Ask us for prices and more details.



Specifications

Product name		HICLAVE HV series
Model		HV-50	HV-85	HV-110
Effective capacity		50 L	85 L	110 L
Chamber size (φ x H mm)		300 x 710	420 x 615	420 x 795
Operation mode		4 modes (LIQUID with warming, LIQUID without warming, SOLID, DISSOLUTION), one memory for each mode
Temperature setting range	Sterilization	105°C  - 135°C  Variable
	Dissolution	60°C  - 100°C  Variable
	Warming	45°C  - 60°C  Variable
Time setting range	Sterilization	1 min - 250 min, Remaining time is displayed
	Dissolution	1 min - 60 min, Remaining time is displayed
	Warming	20 h, fixed
	Auto-start	Program autoclave to start 1 min to 1 week later
Exhaust setting		0% - 100%, Valve opening degree setting for LIQUID mode
Maximum working pressure		0.26MPa
Thermometer		5°C  - 137°C
Pressure gauge		0MPa - 0.4MPa
Safety devices		Pressure safety valve, Over-current and earth leakage breaker, Low water cut off device
Alarms, error display		Low water heating, Temperature sensor wire disconnection, Over-temperature, Over-cool, Over-pressure, Abnormality in lid opening / closing lever lock
Outside dimensions (W x D x H mm)		547 x 532 x 1046	667 x 652 x 1011	667 x 652 x 1191
Weight (Approximately)		57 kg	71 kg	81 kg
Pressure vessel category		Small sized pressure vessel
Chamber material		Stainless steel (SUS304)
Power supply		AC100V / 120V / 220V / 230V / 240V, 50Hz / 60Hz (Specify voltage when ordering.)		AC220V / 230V / 240V, 50Hz / 60Hz (Specify voltage when ordering.)
Required power supply facility		2.0kW	3.0kW	4.0kW
Power connection		Ring terminal
Supplied accessories		Wire mesh basket (2), Bottom plate, Drainage hose, Exhaust hose, Exhaust bottle, Drain bottle, Caster stopper (2)
