Fumechamber

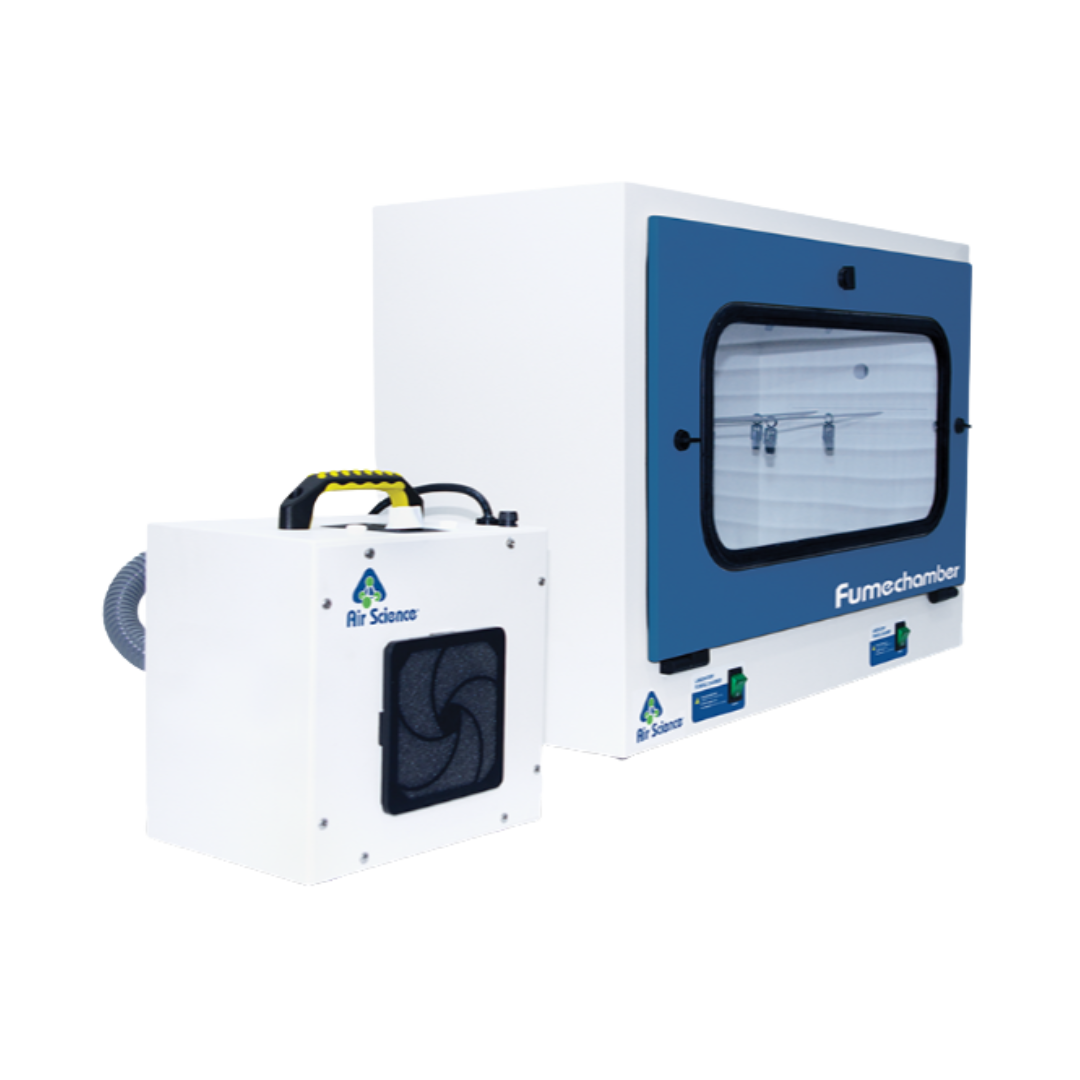

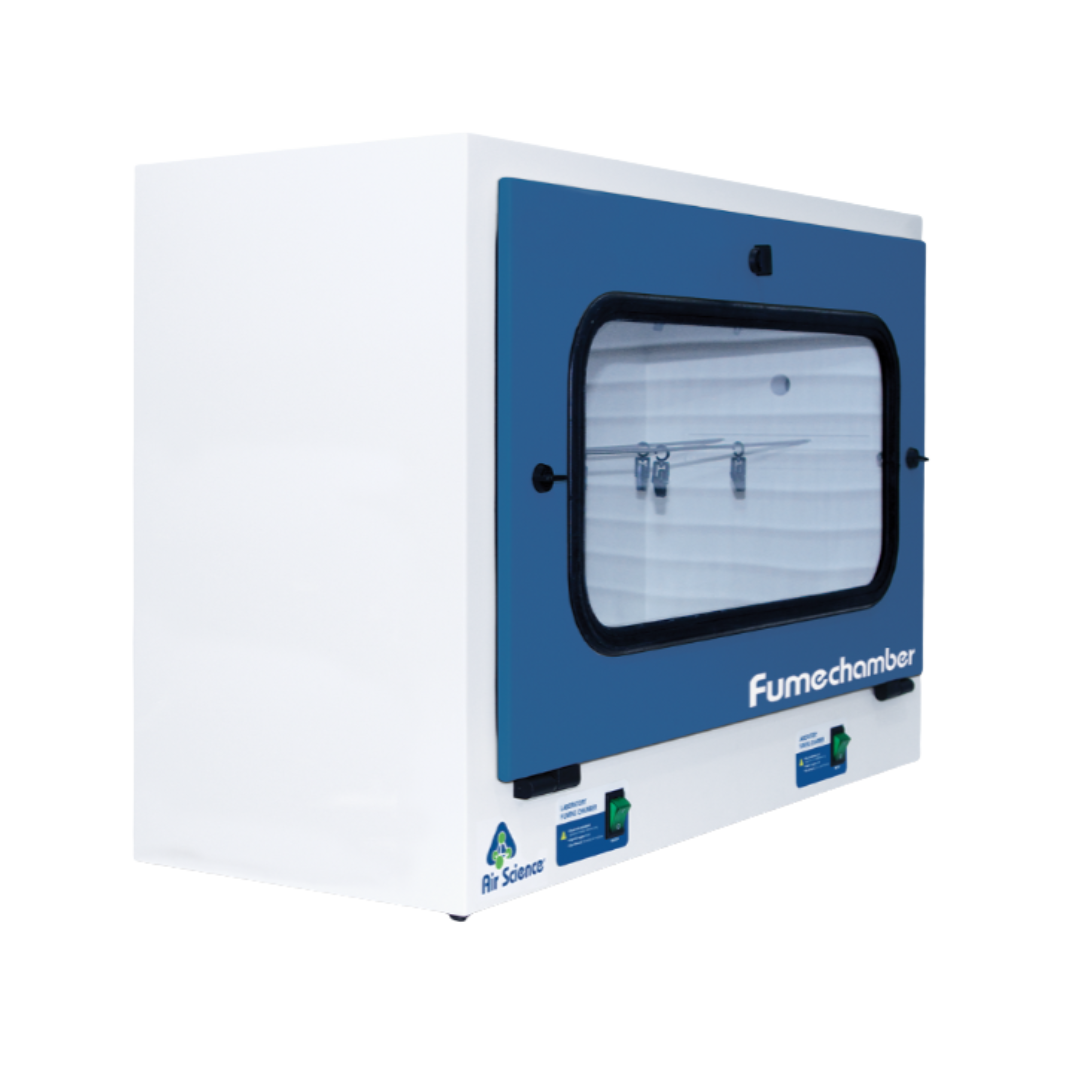

The Air Science Fuming Chamber uses cyanoacrylate fuming for latent print development on various surfaces. The fuming chamber incorporates the Air Science Fume Extraction unit coupled with a self-contained filtration system to safely purge the noxious fumes when the printing cycle is complete.
WhatsappOverview
Overview
The fume extractor is a self-contained cyanoacrylate filtration system that connects directly to the Laboratory Fuming Chambers via the inlet port. The noxious odors and fumes inside the chamber are drawn through an activated carbon filter.
Technical Info

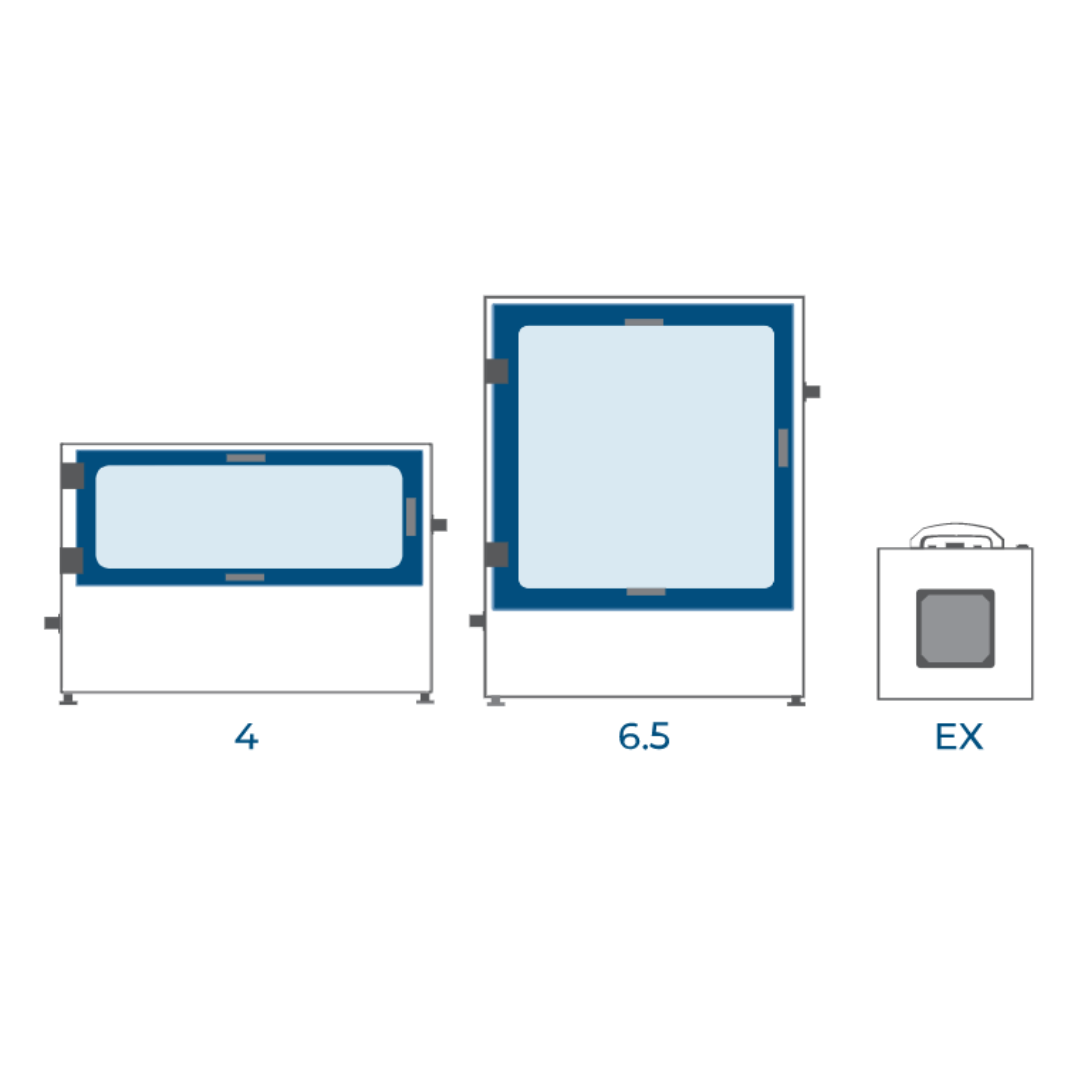

External Dimensions
| Model | Width | Depth | Height |
|---|---|---|---|
| BLC-EX-A | 9.5" | 241 mm | 9.5" | 241 mm | 9.5" | 241 mm |
| BLC-6.5-A | 31" | 787 mm | 13" | 330 mm | 34" | 864 mm |
| BLC-4-A | 31" | 787 mm | 13" | 330 mm | 21" | 533 mm |
Internal Dimensions
| Model | Width | Depth | Height |
|---|---|---|---|
| BLC-EX-A | - | - | - |
| BLC-6.5-A | 30.5" | 775 mm | 12.5" | 318 mm | 31" | 787 mm |
| BLC-4-A | 30.5" | 775 mm | 12.5" | 318 mm | 17" | 432 mm |
Filter Options
| Formula | Description |
|---|---|
| GP Plus! | The most widely used filter in the range, primarily for solvent, organic and alcohol removal. |
| HEPA/ULPA | Powders and particulates. |
Applications
Using innovative filtration technology, the Fumechamber creates a safe work environment over the widest range of applications in the industry.
Compounding / Balance Enclosures, Microscopes and Robotic Equipment / Forensics / Histology / Educational / Microscopy / Mobile and Classroom Demonstrations / Pharmaceutical / Powder Fingerprinting / Powder Weighing / Sample Prep Work / Soldering / Solvent Cleaning and Welding / Veterinary / Dental
