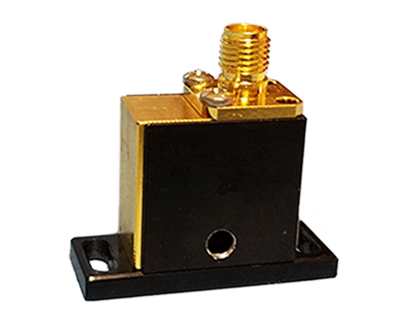

Free Space Acousto-Optic Modulators (AOM)
The Brimrose free space Acousto-Optic Modulator (AOM) is used to control laser beam intensity, frequency modulation, frequency shifting, control pulses, switching time, and more
WhatsappOverview

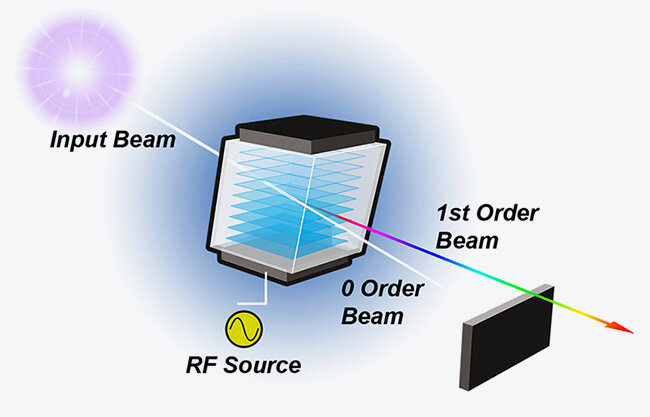

The Brimrose free space Acousto-Optic Modulator (AOM) is used to control laser beam intensity, frequency modulation, frequency shifting, control pulses, switching time, and more. The AOMs are offered with conduction and water cooled enclosures. TE cooled enclosures are available upon request.
Brimrose offers AOMs in the wavelength range from the ultraviolet to LWIR regions for low and high optical power applications. Brimrose AOMs cover the frequency ranges from just a few MHz up to 3.5 GHz.
A large variety of supporting RF electronics in lab enclosures or OEM versions are offered by Brimrose. These include fixed or variable frequency RF Drivers as well as PC-controlled high performance RF Frequency Synthesizers. The RF Drivers are provided with either analog amplitude modulation, TTL, or a combination of both, depending upon application requirements.
Key Features
-
Compact Integrated Design
-
Wide Spectral Wavelength Range
-
Low RF Power Consumption
-
Fast Switching Speed
-
High Bandwidth
-
High Diffraction Efficiency
-
Good Temperature Stability
Applications
-
TTL/Digital Amplitude Modulation
-
Analog Amplitude Modulation
-
Photo Processing
-
Laser Displays
-
Micro Machining
-
Pulse Picking
-
OEM Designs
Technical Specifications
| Model # | Spectral Range (nm) |
Rise Time (ns) |
Active Aperture (mm) |
Modulation Bandwidth (MHz) |
Diffraction Efficiency* (%) |
|---|---|---|---|---|---|
| TEM-85-2 | 380-1600 | 280 | 2.0 | 2 | 80 |
| TEM-85-10 | 380-1600 | 55 | 1.0 | 10 | 80 |
| TEM-110-25 | 380-1600 | 22 | 0.5 | 25 | 80 |
| TEM-200-50 | 380-1600 | 10 | 0.3 | 50 | 70 |
| TEM-400-100 | 380-1600 | 5.5 | 0.075 | 100 | 50 |
| TEM-800-200 | 380-1600 | 3 | 0.05 | 200 | 35 |
| AMM-27-2 | 1000-2500 | 300 | 1.0 | 1.8 | >80 |
| AMM-80-4 | 1000-2500 | 160 | 1.0 | 4 | >80 |
| AMM-100-8 | 1000-2500 | 68 | 0.3 | 8 | >80 |
| FQM-80-2 | 200-1300 | 195 | 1.6 | 2.8 | 70 |
| FQM-80-20 | 200-1300 | 30 | 1.0 | 18 | 70 |
| FQM-200-40 | 200-1300 | 14 | 0.3 | 14 | 70 |
| GEM-40-4 | 2000-11,000 | 125 | 1.5 | 5 | 70 |
| GPM-200-50 | 600-1600 | 11 | 0.3 | 50 | >75 |
| GPM-400-100 | 600-1600 | 5.1 | 0.1 | 108 | >65 |
| GPM-800-200 | 600-1600 | 2.6 | 0.05 | 217 | >40 |
| GPM-1600-400 | 600-1600 | 1.4 | 0.025 | 400 | >25 |
| IPM-200-26 | 1000-1600 | 21 | 0.3 | 26 | 60 |
| IPM-400-100 | 1000-1600 | 5 | 0.075 | 100 | 50 |
* Diffraction efficiency may vary depending on the wavelength of operation.
The Free Space AOM models shown above represent some examples of our fabrication capabilities. In addition, other wavelengths, frequencies or configurations are available.
