Dispensing Pumps

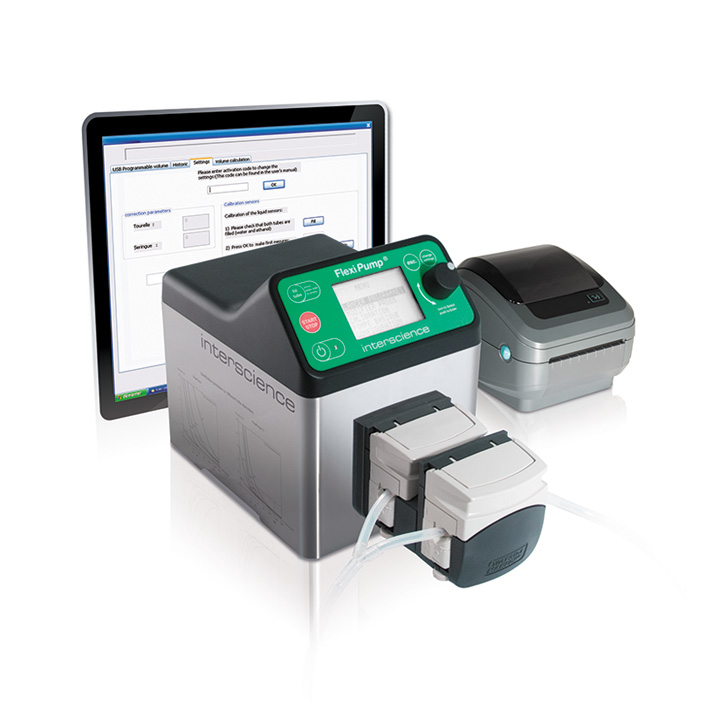

FlexiPump Pro is a peristaltic pump with enhanced accuracy for the dispensing of culture media, agar and any type of diluent. Compact and ergonomic, it comes with a user-friendly interface. Traceability is guaranteed by printer and USB connection.

• Dispensing mode: Continuous - Dose - Multi-dose
• Dose volume: from 50 µL to 99.9 L
• Flow rate: up to 2.5 L/mn
• Connection: USB, RS232, Jack 3.5 mm



Designed for laboratories

FlexiPump is compact and easy to use with 3 dispensing modes: continuous, dose (predetermined volume) and multi-dose (predetermined volume, with an
adjustable pause between each dose). It has 32 customizable programs. FlexiPump easily calibrates and picks up in all types of containers.



Simplified distribution

The distribution can be done in series. The control is increased with the handy gun, the adjustable arm and the foot pedal.

Culture media
E.g.: 9 mL in test tubes

Agar
E.g.: 18 mL in Petri dish

All liquid diluent
E.g.: 90 ou 225 mL in bottle or blender bag



Control and accuracy of the distributed volume

FlexiPump Pro is equipped with a powerful motor allowing the distribution of 50 µL to 99.9 L with a flow rate up to 2.5 L/min. The difference in precision between several distributions reaches 1%. FlexiPump Pro complies with ISO 7218 standards.



Ergonomics of the workstation

FlexiPump Pro is compact: only 16 cm wide. The large screen and the rotating button enable easy programing. The standard distribution in all types of containers is simplified thanks to the ergonomic spray gun.



Applications

FlexiPump is used for all serial distribution in food, environmental, pharmaceutical, cosmetics, veterinary and public research institutes.



Specifications

FlexiPump Pro
Reference	562 000
Dose volume	50 µL to 99 L
Dispensing modes	Continuous - Dose - Multi-dose
Multi-dose pause	Adjustable from 0.1 to 99.9 s
Watson MarlowTM pump	Low pulsation double pump head
Typical precision with inner diameter 3.2 mm tubing	9 mL : ± 0,9 % - 18 mL : ± 0,5 % - 225 mL : ± 0,4 %
Delivered with (tubing inner diameter)	Dispensing assemblies (3.2 mm and 6.4 mm)
Flow rates	3 mL/min. to 2.5 L/min.
Traceability	USB, RS 232
Connections	USB, RS 232, Jack 3.5 mm
Data export	ExcelTM, Open Office CalcTM, LIMS
Pump head rotating speed	10 to 550 rpm
Tubing inner diameter (in option)	1.6 mm - 3.2 mm - 4.8 mm - 6.4 mm - 8 mm
Tubing wall thickness	1.6 mm only
Tubings made from	TygonTM (for pump head) and silicon
Net weight	5.55 kg
Dimensions (w x d x h)	16.1 x 33.2 x 20.8 cm
Box (w x d x h)	50 x 40 x 40 cm
Gross weight	8.45 kg
Voltage - Frequencies	100-240 V∼ 50-60 Hz
Fuses	T 2.5A L 250V 5x20 mm
Power	50 W
International protection marking	31
All stainless steel	Yes
Warranty	1 year
In compliance with	ISO 7218 and FDA BAM (Bacteriological Analytical Manual)
