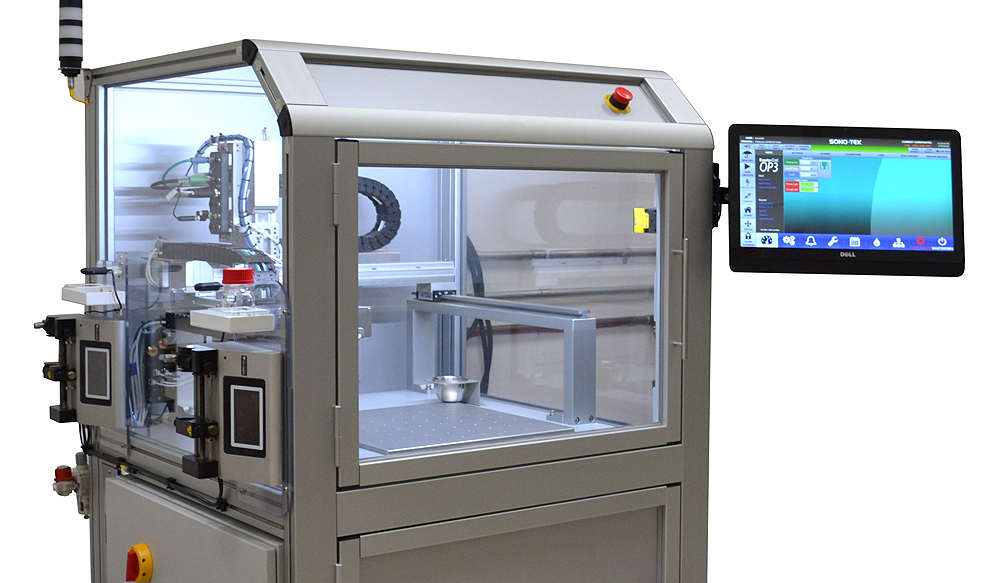

Diagnostic Device Coating System

Active and non-active coatings onto microfluidic and other diagnostic and medical testing kits.



• Reagent coatings onto microfluidic and microarray devices (lab-on-a-chip).
• Point-of-care diagnostic and testing kits.
• Blood glucose monitors.
• Blood collection and analysis devices.
• Molecular and protein diagnostic kits.
• Immunoassay kits.

Basic Specifications

ENCLOSURE DIMENSIONS: 1021mm W x 1693mm H x 997mm D (40.2”W x 66.7”H x 39.2”D)

RANGE OF MOTION*: 420 mm x 490 mm x 85 mm (16.5” x 19.2” x 3.3”) *Note: Work area may be reduced depending upon system configuration

CONTROL: Windows-based programming software and on-screen teach device

POWER REQUIREMENTS: 100-240 VAC, 50/60 Hz, 4.5A max base system, 17A max with standard heat plate

AIR: 551.6 kPa (80 PSI) dry unlubricated air

MOTORS: Brushless DC servo

CERTIFICATION: CE

ULTRASONIC NOZZLE DESIGNS: AccuMist, Impact, Vortex, MicroMist, or Propel
