Overview

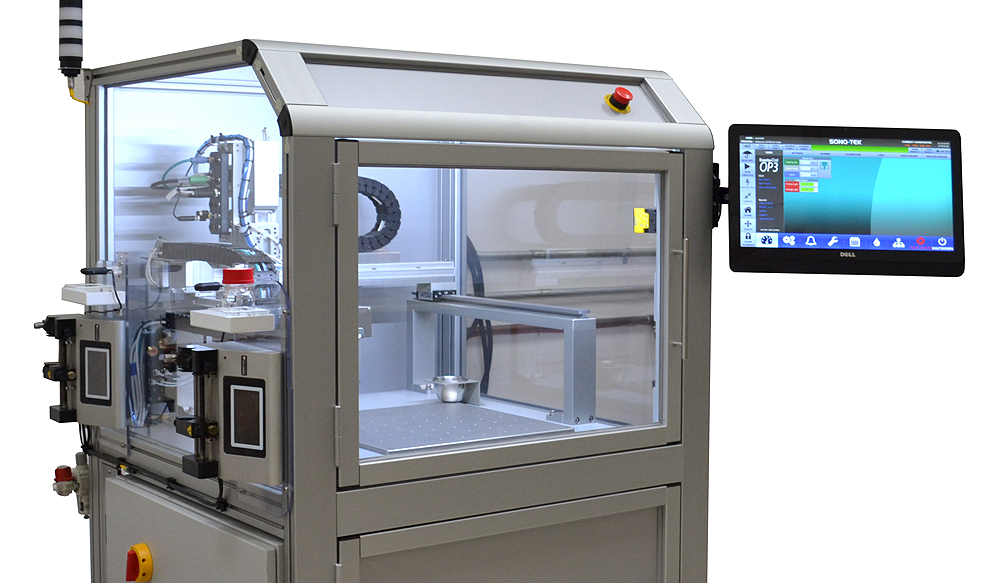

Sono-Tek ultrasonic coating systems are ideal for spraying carbon-based catalyst inks onto electrolyte membranes used for hydrogen generation.
PEM electrolyzer coating systems are fully automated, capable of dual side coating, and enable different catalyst formulations to be applied to each side of the membrane. Durability and repeatability of the coating are proven superior to other coating methods, providing extended lifetime of the coated PEM.
Basic Specifications
| ENCLOSURE DIMENSIONS:
1021mm W x 1693mm H x 997mm D (40.2”W x 66.7”H x 39.2”D) |
| RANGE OF MOTION*: 420 mm x 490 mm x 85 mm (16.5” x 19.2” x 3.3”) *Note: Work area may be reduced depending upon system configuration |
| CONTROL: Windows-based programming software and on-screen teach device |
| POWER REQUIREMENTS: 100-240 VAC, 50/60 Hz, 4.5A max base system, 17A max with standard heat plate |
| AIR: 551.6 kPa (80 PSI) dry unlubricated air |
| MOTORS: Brushless DC servo |
| CERTIFICATION: CE |
| ULTRASONIC NOZZLE DESIGNS: AccuMist, Impact, Vortex, MicroMist, or Propel |
