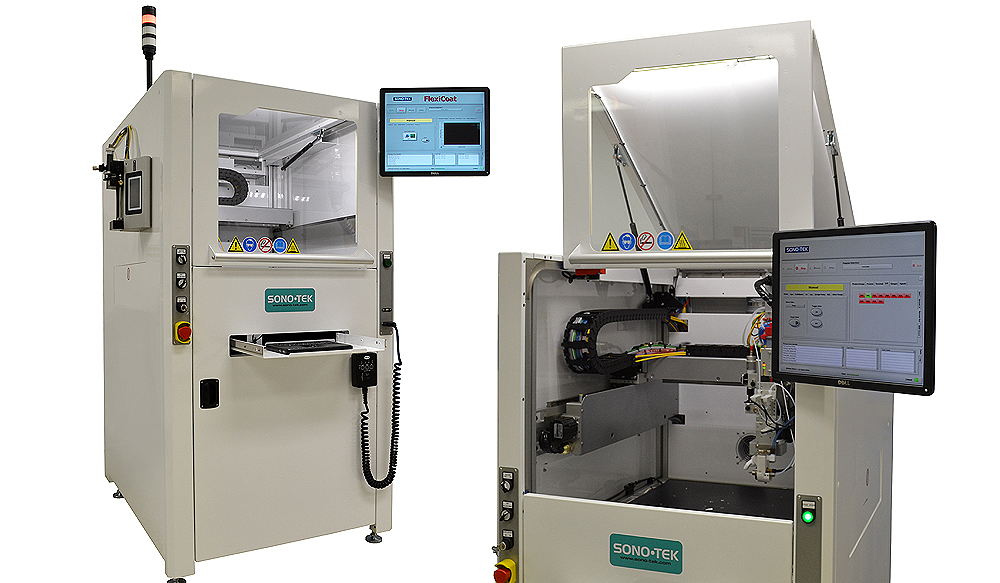

EMI Shielding Coating System

Spray-on silver-filled epoxy shielding materials for thinner, lighter device designs, enabling higher board density. Silver-filled polyester coatings are applied using ultrasonic spray following package placement.



• Complete thin film coverage of geometries with excellent uniformity
• Top surface to sidewall thickness ratio of: 1.0 to ~0.6-0.7
• High throughput (UPH)

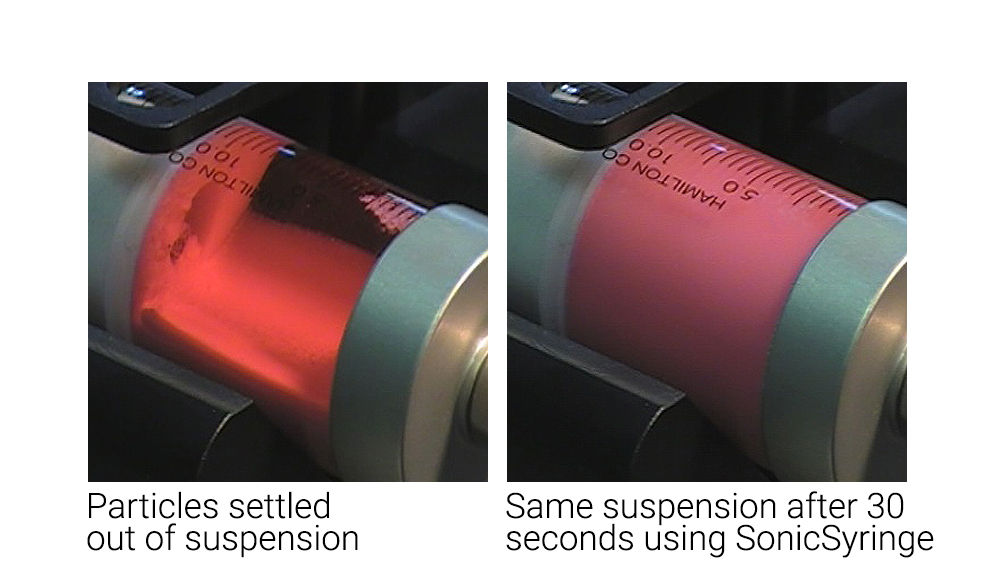

• Excellent surface conductivity due to homogeneous distribution of particles
• Highly effective shielding of small devices

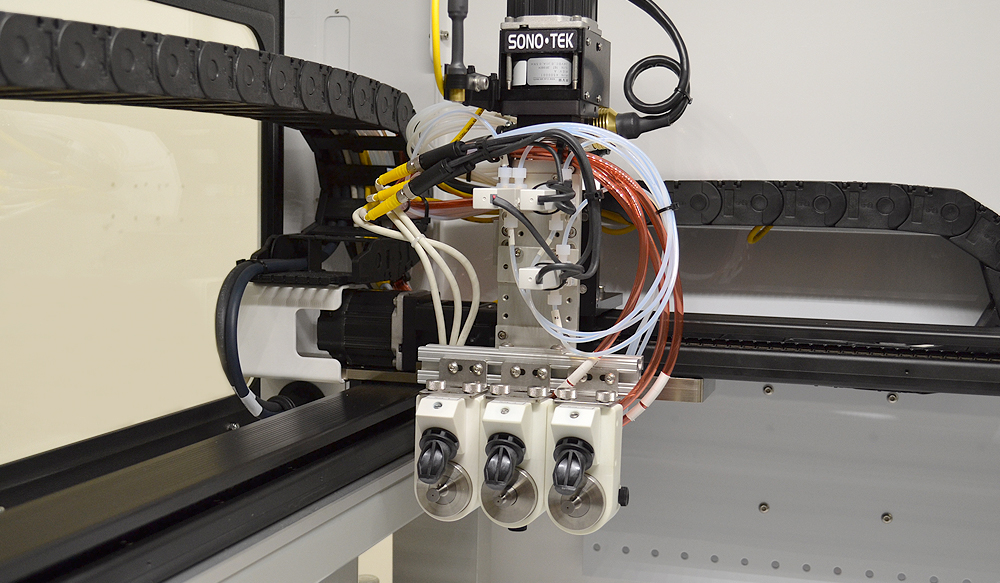

• Optimal side wall coverage in tight geometries with ultrasonic nozzle tilt and rotation
• Precise thickness control



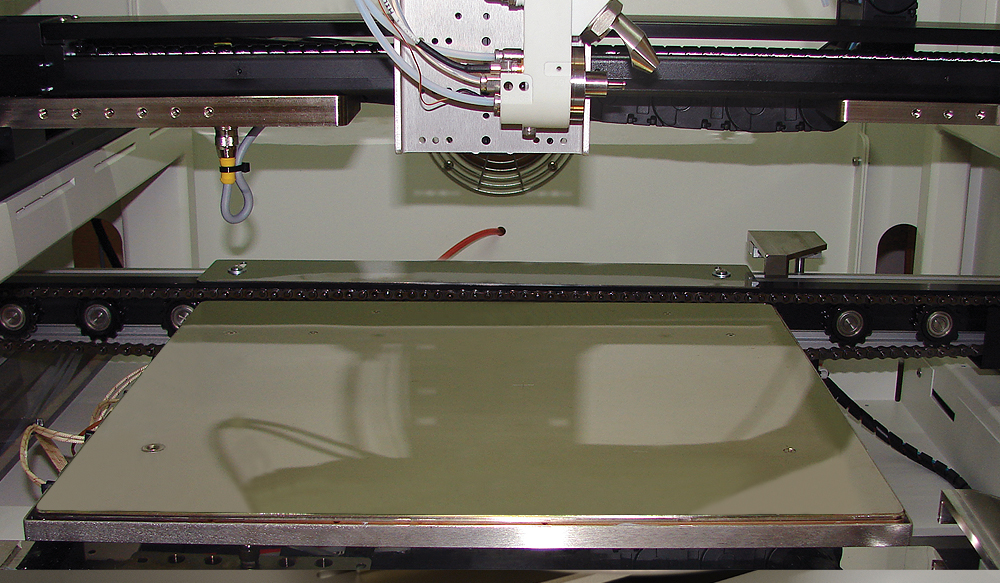

Basic Specifications

DIMENSIONS: 869 mm W x 1952 mm H x 1137 mm D (34” W x 76.9” H x 44.8” D)

WORK AREA*: 500 x 500 x 100 mm (19.69” x 19.69” x 3.94”) Larger configurations available up to 1.4x1.4 m *Note: Work area may be reduced depending upon system configuration

CONTROL: Windows-based (PC included)

POWER REQUIREMENTS: 120V, 220V +/- 10%, 50-60 Hz

AIR: 551.6 kPa (80 PSI) dry unlubricated air

MOTORS: Servo

CERTIFICATION: CE

ULTRASONIC NOZZLE DESIGNS: AccuMist, Impact, Vortex, MicroMist, or Propel
