Sensor Coating System

Thin film coatings of functional nanoparticles for sensor manufacturing.

Spray thin films of polymers, conductive nanoparticles, or other functional materials used in sensors manufacturing for biometrics security, medical device applications, temperature sensing, gas sensing, blood analysis device sensing, chemical detection, impedance measurement, and pressure or load sensing.

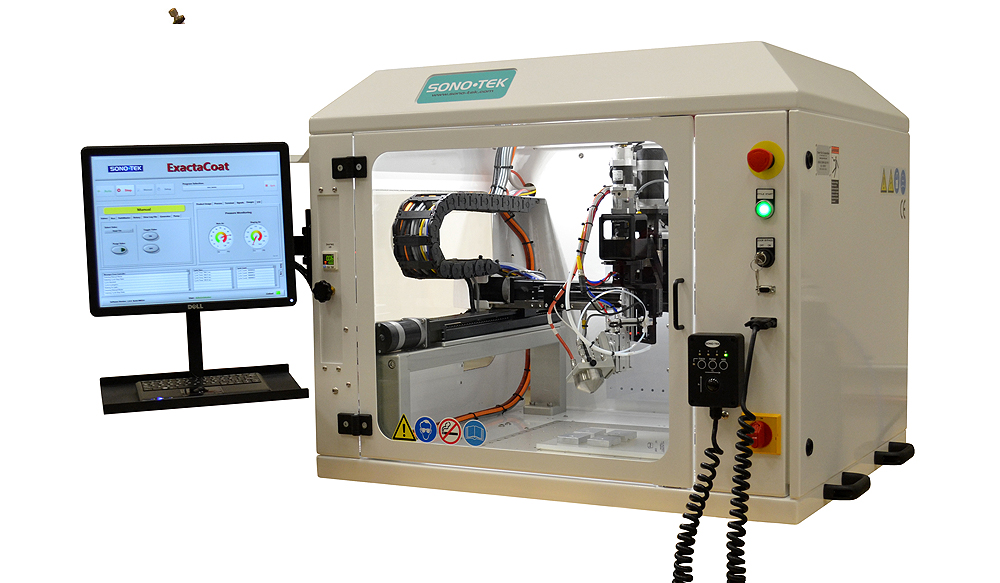

Ultrasonic coating equipment is used for spraying thin film polymers and other conductive nanocoating chemistries in the manufacture of sensor components.



• Ultrasonic vibration allows the ability to uniformly atomize solutions that will often clog jetting technology.
• Easily accommodates batch substrate fixtures for high volume throughput, with easy to program selective area coating capability.
• Control of coating thickness from thin nanolayers to 10’s of microns.



Basic Specifications

DIMENSIONS: 944 mm W x 831 mm H x 794 mm D (37.2” W x 31.2” H x 32.7” D)

WORK AREA*: 400 x 400 x 100mm (15.75” x 15.75” x 3.94”) *Note: Work area may be reduced depending upon system configuration

CONTROL: Windows-based (PC included)

POWER REQUIREMENTS: 120V, 220V, +/-10%, 50-60Hz

AIR: 551.6 kPa (80 PSI) dry unlubricated air

MOTORS: Brushless DC servo

CERTIFICATION: CE

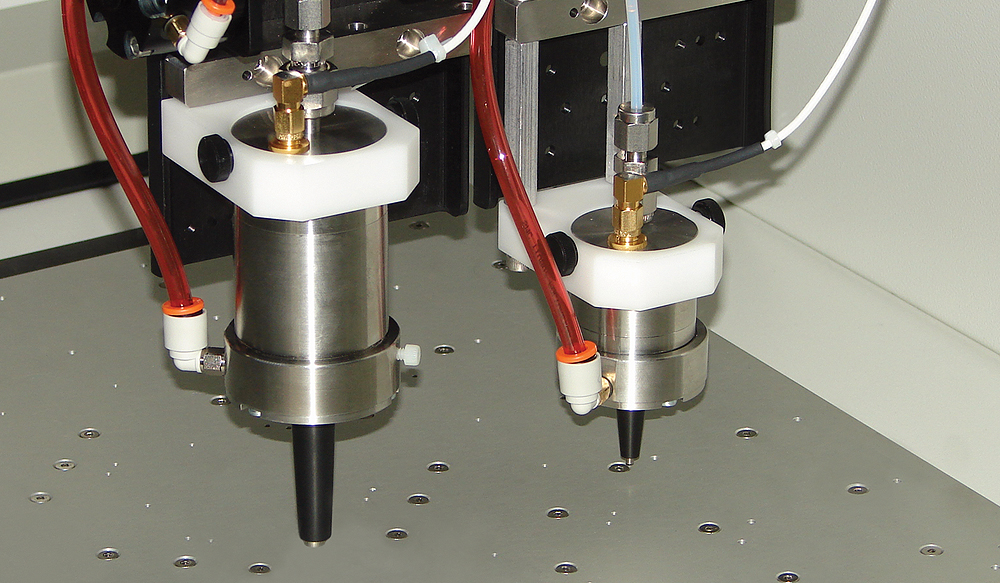

ULTRASONIC NOZZLE DESIGNS: AccuMist, Impact, Vortex, MicroMist, or Propel
