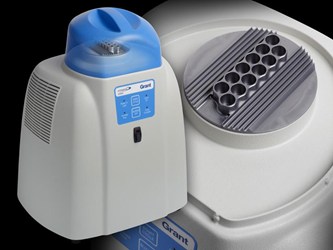

EF600M Controlled Rate Freezer
The world's first nitrogen and cryogen free controlled rate freezer has been specifically designed for use in human and animal IVF applications for the cryopreservation of embryos, stem cells and spermatozoa but can also be used for a wide range of freezing applications.
WhatsappOverview
Features
- Accurate and reproducible control of cooling rates and sample temperatures
- Easy to use and samples can be nucleated/seeded in-situ
- Linear and non-linear cooling profiles
- Low running costs: estimated at 1% of liquid nitrogen controlled rate freezing
- Temperature remains at -100ºC at the end of cycle for straw applications until freezer is switched off
- Uninterruptible Power Supply (UPS): complete cycle run if power fails (supplied as an optional accessory)
- CE marked
- Servicing and calibration available
- 3 year warranty
Specification
- Overall Size: W 36.9cm, D 26.6cm, H 45.3cm (inc. lid)
- Weight: 9.8kg
- Power requirements: 100-240 V, 50-60 Hz, 2.5A max
- Operating temperature (environment): 20°C to 30°C
- A number of fixed plates available (standard straws, high security straws, cryovials, cryocyte bags & microplates)
- Freezer can be run as a stand alone pre-programmed unit or connected to a control PC (computer with serial port and control software and Windows)
- Software allowing configuration of existing profiles, creation of new customer profiles, data logging and reporting. All data is logged in an encrypted and Excel readable form.
- Standard, pre-set cooling profiles available
- Backup electrical supply: 750VA UPS capable of running freezer for 3 hour cycle in the case of an electrical power failure
- Cleaning: Seamless, no dirt traps, may be cleaned using standard wipes
- Nucleating tool: sterile medical device
