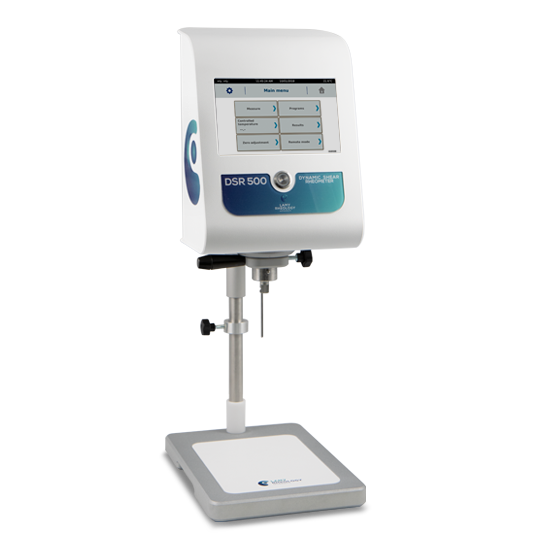

DSR 500 Rheometer

DSR 500 Rheometer is the rheometer with imposed shear rate, equipped with a 7 ‘’ touch screen to display the curves directly.

Whatsapp

Overview

The rheometer with imposed shear rate, equipped with a 7 ‘’ touch screen to display the curves directly. And with direct report editing on a desktop printer, measuring viscosity or yield point has never been so easy!

  • Direct curve on display.

  • Ramp programming.

  • Direct analysis with regressions.

  • Direct control of temperature unit.

  • Programming and recording method.

  • Direct measure with time to stop.

  • User and locked mode.

  • Data recording and USB transfer.

  • Integrated temperature probe.

  • Printer connection.

  • Compatible with RheoTex software.



Specifications

  • TYPE OF INSTRUMENT :

    Rotating springless rheometer with 7’’ Touch screen

  • ROTATION SPEEDS :

    Unlimited number of speeds between 0.3 and 1500 rpm

  • TORQUE RANGE :

    From 0.05 to 30 mNm

  • TEMPERATURE :

    The DSR 500 has a PT100 sensor which indicates temperatures between -50 °C to + 300 °C

  • ACCURACY :

    +/- 1 % of the full scale

  • REPEATABILITY :

    +/- 0,2 %

  • DISPLAY :

    Viscosity (cP/Poises or mPa.s / Pa.s)-Speed – Shear rate – Torque – %- Shear stress - Time – Temperature

  • COMPATIBLE ACCESSORIES :

    Carrying case
    HELIPRO stand
    Small volume package
    Small volume package
    THERMOCELL package
    Barcode reader with stand and cable
    Bayonet spindle rack
    Touch screen protector
    Viscosity standards oil
    Dymo printer
    RheoTex software
    External temperature probe -50°C to +300°C

  • SECURITY AND CONFIDENTIALITY :

    An «operator» function allows you to enter a username for your
    instrument. This user must then be identified using a 4-digit code.
    There is also a protected mode that locks your measurement
    conditions.

  • LANGUAGES :

    French/English

  • COMPATIBLE MEASURING SYSTEMS :

    MS DIN, MS RV/LV, MS BV, MS VANE, MS R, MS HT, MS ULV,
    MS SV

  • COMPATIBLE TEMPERATURE CONTROL :

    EVA DIN, EVA MS-R, EVA LR-BV, RT-1

  • SUPPLY VOLTAGE :

    90-240 VAC 50/60 Hz

  • PC CONNECTIONS :

    RS232 Port and USB

  • PRINTER CONNECTION :

    USB Host Port - Compatible
    PCL/5

  • DIMENSIONS AND WEIGHT :

    Head: D160 x H270 x W200 mm
    Alluminium stand: L280 x W200 x H30 mm
    Stainless steel rod: Length 500 mm
    Weight: 6.7 kg
