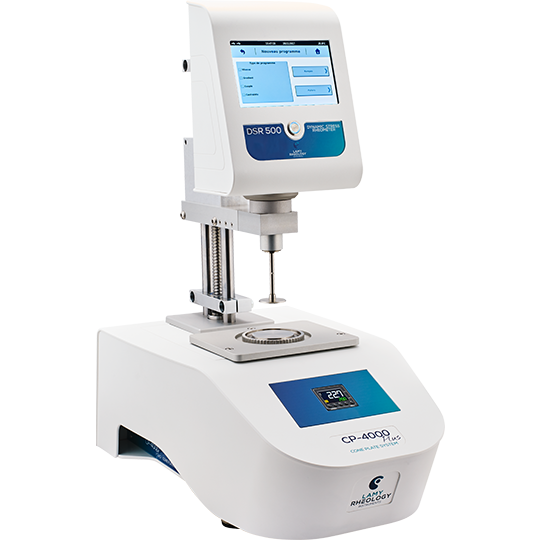

Rheometer

With its motorized lift, built-in temperature control unit and all the features of the DSR500, this new cone-plate rheometer optimizes your measurements and guarantees high performance even without a computer!

• Automatic lift for gap.
• Quick attachment with AC265 coupling.
• Shear rate and speed control.
• Direct curve on display.
• Ramp programming.
• Direct analysis with regressions.
• Huge viscosity range.
• Programming and recording method.
• Direct measure with time to stop.
• User and locked mode.
• Torque gage on display.
• Integrated temperature probe.
• Compatible with RheoTex software.



Specifications

• TYPE OF INSTRUMENT :

  Rotating springless rheometer with 7’’ Touch screen

• ROTATION SPEEDS :

  Unlimited number of speeds between 0.3 and 1500 rpm

• TORQUE RANGE :

  From 0.05 to 30 mNm

• TEMPERATURE :

  Equipped with a PT100 sensor which indicates temperatures between -50°C to +300°C

• ACCURACY :

  +/- 1 % of the full scale

• REPEATABILITY :

  +/- 0,2 %

• DISPLAY :

  Viscosity (cP/Poises or mPa.s / Pa.s)-Speed – Shear rate – Torque – %- Shear stress - Time – Temperature

• COMPATIBLE ACCESSORIES :

  Barcode reader with stand and cable
  Touch screen protector
  Viscosity standards oil
  Dymo printer
  RheoTex software
  Protection cover

• SECURITY AND CONFIDENTIALITY :

  An “operator” function allows you to enter a username for your
  instrument. This user must then be identified using a 4-digit code.
  There is also a protected mode that locks your measurement
  conditions.

• LANGUAGES :

  French/English

• COMPATIBLE MEASURING SYSTEMS :

  MS CP

• SUPPLY VOLTAGE :

  90-240 VAC 50/60 Hz

• PC CONNECTIONS :

  Port RS232 and USB

• PRINTER CONNECTION :

  USB Host Port - Compatible
  PCL/5

• WHAT BENEFITS ARE THERE FOR YOU?

  Save and show your flow curves and calculate your rheological parameters directly without computer (Plastic viscosity, flow limit, Thixotropy,
  Regression models according to Newton, Bingham, Casson and Ostwald) . Simply connected to a printer, it is easy to print a
  measurement report containing the information, curve, measured values and results of the rheological analysis

• DIMENSIONS AND WEIGHT :

  D610 x H700 x W340 mm
  Weight: 22 kg
