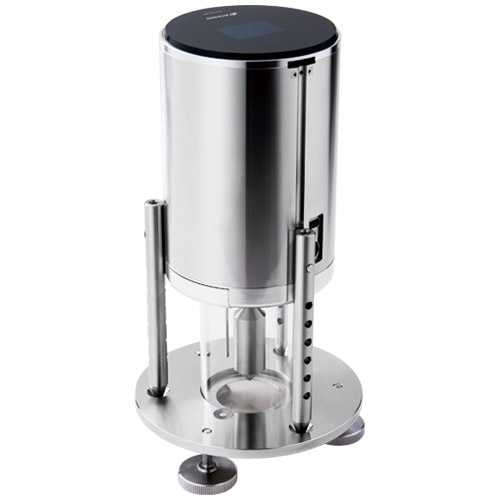

Viscometer

• VISCO is a portable and compact size
• Can be powered by battery which makes it possible to measure anywhere anytime.
• VISCO is a digital display which makes it possible for anyone to see easily.
• Only small volume of sample is required to measure.
• From setting up the VISCO to measurement, it can be done with one hand and only have to deal with one button to operate.
• Can be measured using disposable cup. (package A)
• For a low viscosity sample, there is a low viscosity sample adapter which make it possible to measure from 1 - 2,000 mPa.S.(package B)



Specifications

Model	VISCO™
Cat.No.	6800
Measurement item	Viscosity / Kinematic Viscosity.Temperature.Torque%
Range	Viscosity / Kinematic Viscosity: A1: 50 to 16,000,000mPa.s / 50 to 16,000,000cP A2: 100 to 37,000,000mPa.s / 100 to 37,000,000cP A3: 500 to 99,999,999mPa.s / 500 to 99,999,999cP UL: 1~2,000mPa.s Torque: 0.0 to 100.0 % (recommended torque: 10.0 to 100.0?) Temperature: 0.0 to 100.0 °C/32.0 to 212.0°F
Speed	0.01 to 250rpm Number of Speeds: 28
Resolution	Viscosity / Kinematic Viscosity: Lower than 100mPa.s: 0.01mPa.s 100mPa.s or higher lower than 10,000mPa.s: 0.1mPa.s 10,000mPa.s or higher:1mPa.s Torque: Lower than 10.0%: 0.01% 10.0% or higher: 0.1% Temperature: 01 °C/0.1°F
Accuracy	Viscosity / Kinematic Viscosity : ±1% of Maximum Viscosity Temperature: ±0.2 °C, ±0.4°F
Power Supply	- LR6 / AA alkaline batteries (x4) - AC adapter
Computer Communication	Output: USB - PC
Dimensions & Weight	Main unit: 120(W)x120(D)x200.6(H)mm/1.2kg
