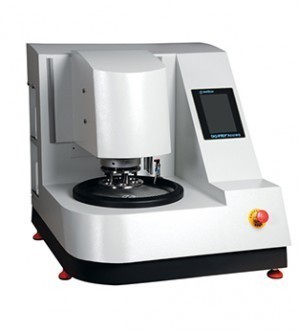

DIGIPREP ACCURA - Grinder & Polisher
Powerful Preparation System with solid frame design on two columns, suitable for 250 mm as well as 300 mm dia. applications, programmable sample preparation with coloured 7 inch HMI touch screen control, with Simens PLC control unit. Base Unit with large 1,5HP Motor, Variable wheel speed 50-600 rpm, Quite belt drive. Complementary or Contra rotational direction, Soft Start /Stop. Retractable water hose, water supply and drain tubes. Motorised positioning of the Head Unit in Z and X axis, central and/or individual force application, with variable specimen holder speed 50-150 rpm, 100 Watt DC motor, LED lighting, Z-axis material removal with depth control, audible warning signal, with holding chuck. Air supply tubes,. Complete and ready for operation. Without Specimen Holders. 230 V, 1-phase, 50 Hz.
WhatsappOverview
Specifications
| Model | Digiprep Accura |
| Order No | 45 05 |
| Application of Force | Individual + Central |
| Individual Force, (N) | 5-100 |
| Central Force, (N) | 30-500 |
| Head Motor, W | 100 |
| Motor Power, HP | 1,5 |
| Wheel Diameter, (mm) | 250/300 |
| Head Rotation Direction | CW/CCW |
| Wheel Rotation Direction | CW/CCW |
| HMI Touch Screen, (inch) | 7" |
| Program Memory | 30 |
| Peristaltic Dispenser | Yes |
| Grinding Depth Measurement (Z Axis) | Yes |
| Grinding Depth Measurement Accurracy (μ) | 10 |
| Horizantal Positioning | Yes |
| Horizantal Positioning,mm | 50 |
| Dimensions, W x D x H, mm | 660x750x700 |
| Weight, (kgs) | 170 |
