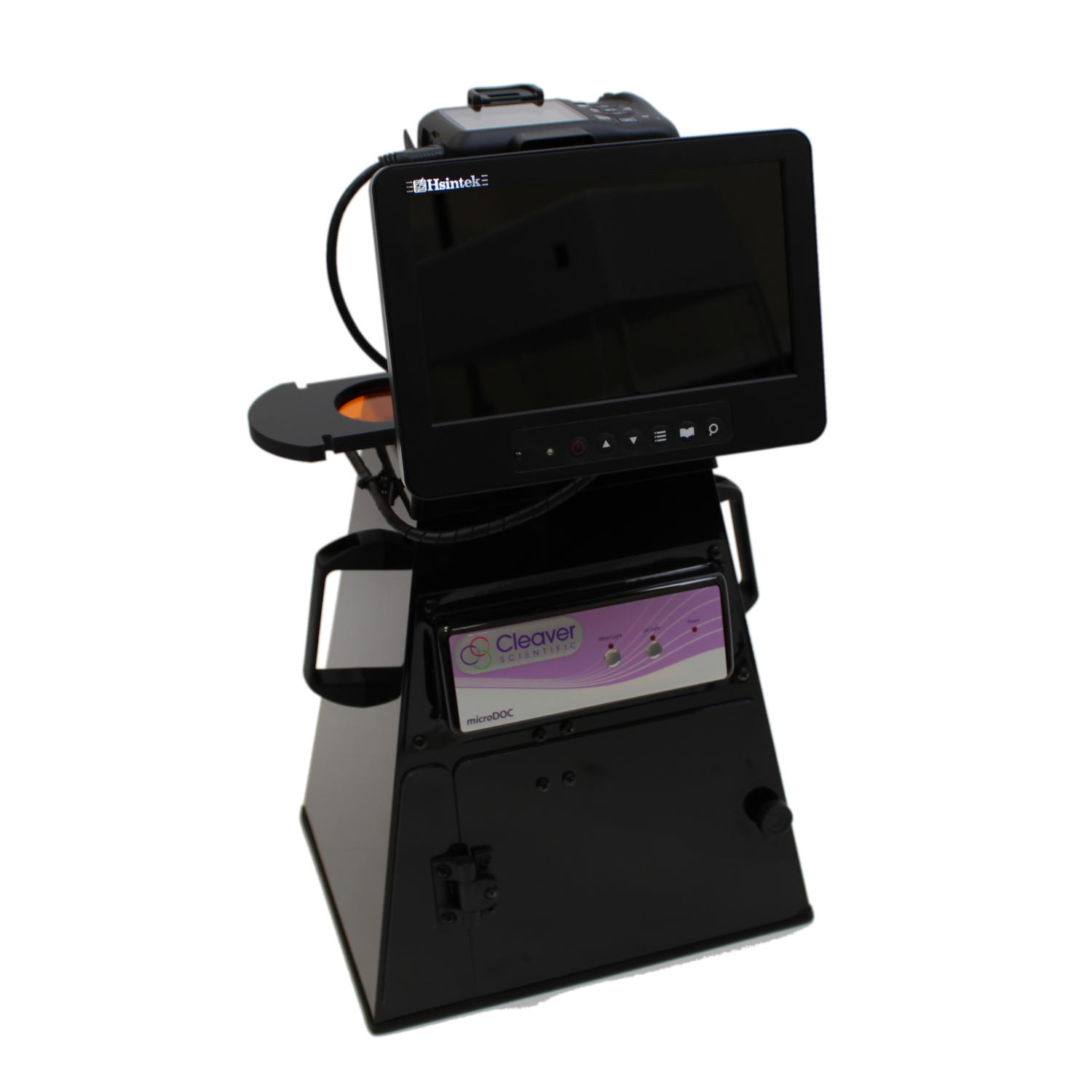

Gel Documentation System with UV transiluminator

Key Features

• 12.1 Megapixel digital camera with improved high-sensitivity CCD sensor and processor
• Image visualised within a large 8″ TFT colour monitor
• Light weight compact hood with easy access door and built-in inner lights
• Safety switches disconnect the UV source when the easy access door is opened
• Computer-free operation

Camera

Type	1/1.7 type CCD sensor with DIGIC processor
Zoom	5x optical / 4x digital
Effective Pixels	10.0 megapixels
Max. Aperture	f/2.8 (W) - f/4.5 (H)
Shutter Speed	15 - 1/4000s. (total range)
Filters	+3 Close up and EtBr; optional SYBR green
Storage Media	4GB memory card; optional Wi-Fi memory card
Computer Interface	Hi-Speed USB (Mini-B compatible)
Video Out	NTSC/PAL

Darkroom

Multi-Power Source	For camera, inner white LED, TFT screen
Inner White Light	2x3W LED
Safety Device	Safety door switch
Weight & Dimensions	6.1kg; 29x22x32cm
Voltage Rating	110~220V

Screen

Type	8" TFT
Resolution	600x800 Pixels
Brightness	350 cd/mm2
Constant Ratio	300 : 1
Display Mode	NTSC / PAL / SECAM mode, auto switching
