Spectrophotometer

Advantages

• Combi-device with two geometries according to DIN5033: 45°/0° and d/8°

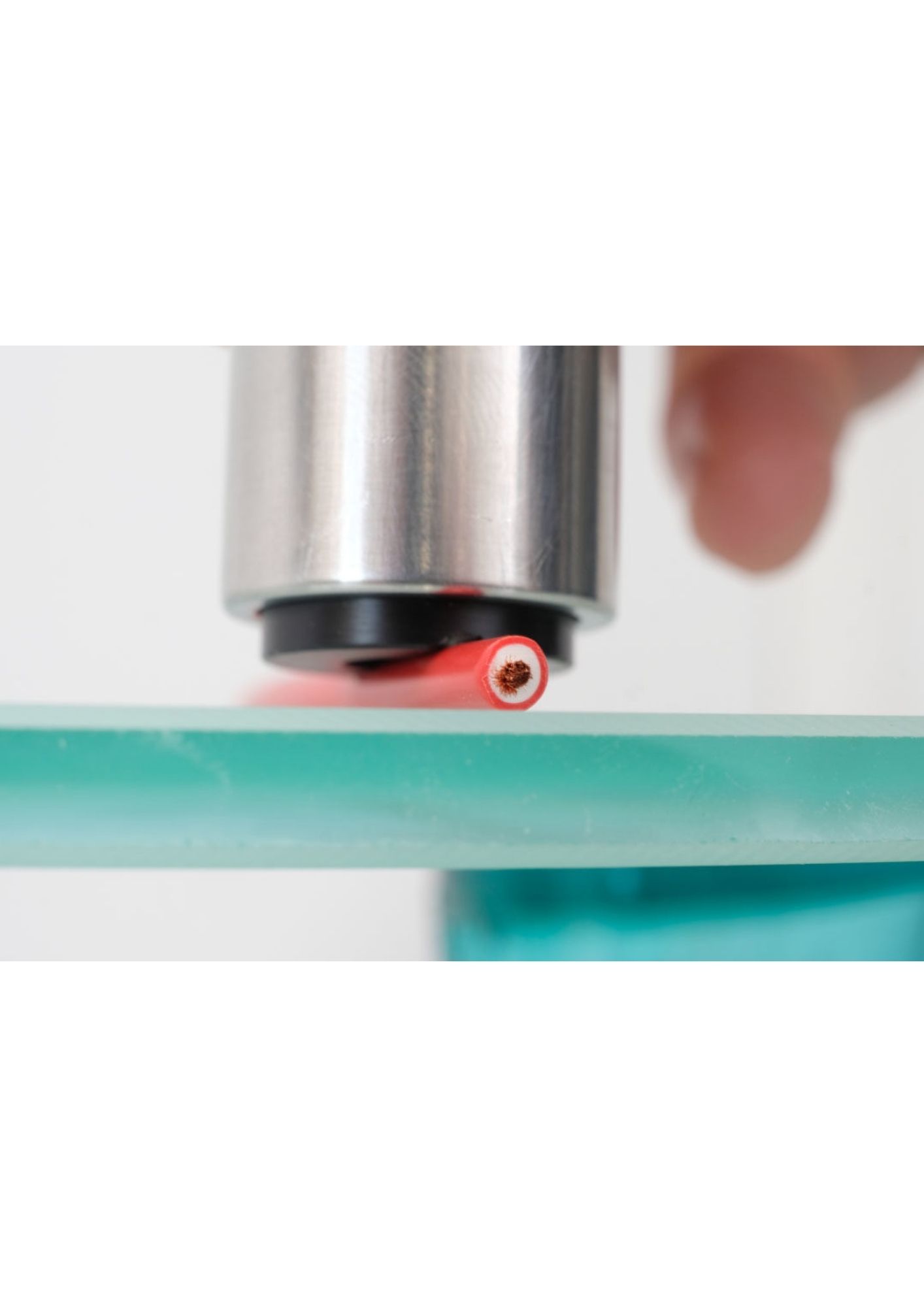

• Small, flexible external probe head –  therefore ideally suited for measuring small and curved parts

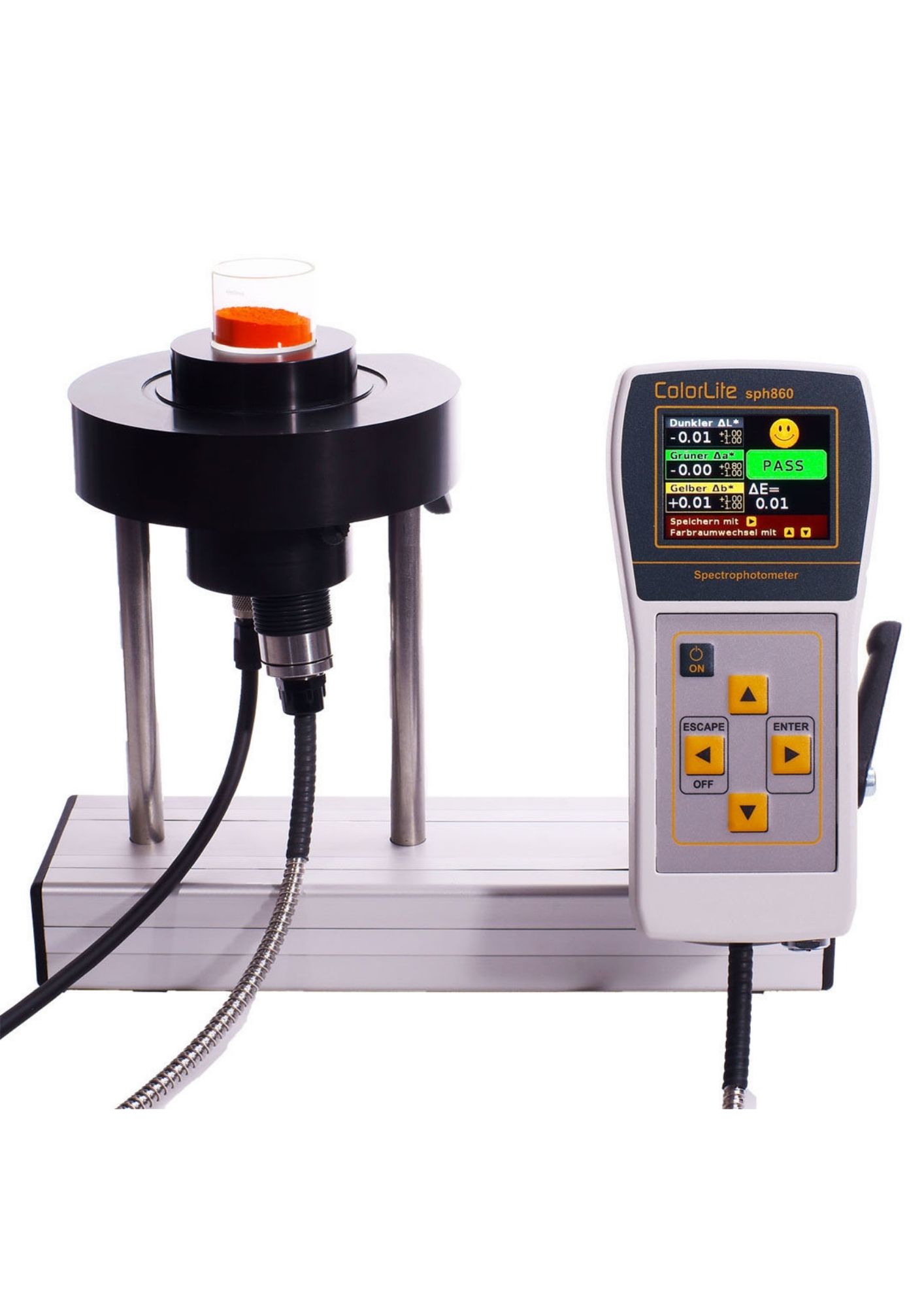

• Wide range of accessories for measuring liquids, powders, granules, foods, cables
• High powered LED-light source with an optimal life span
• Perfectly simple handling through intuitive user interface
• Memory space for 1000 standards



Description

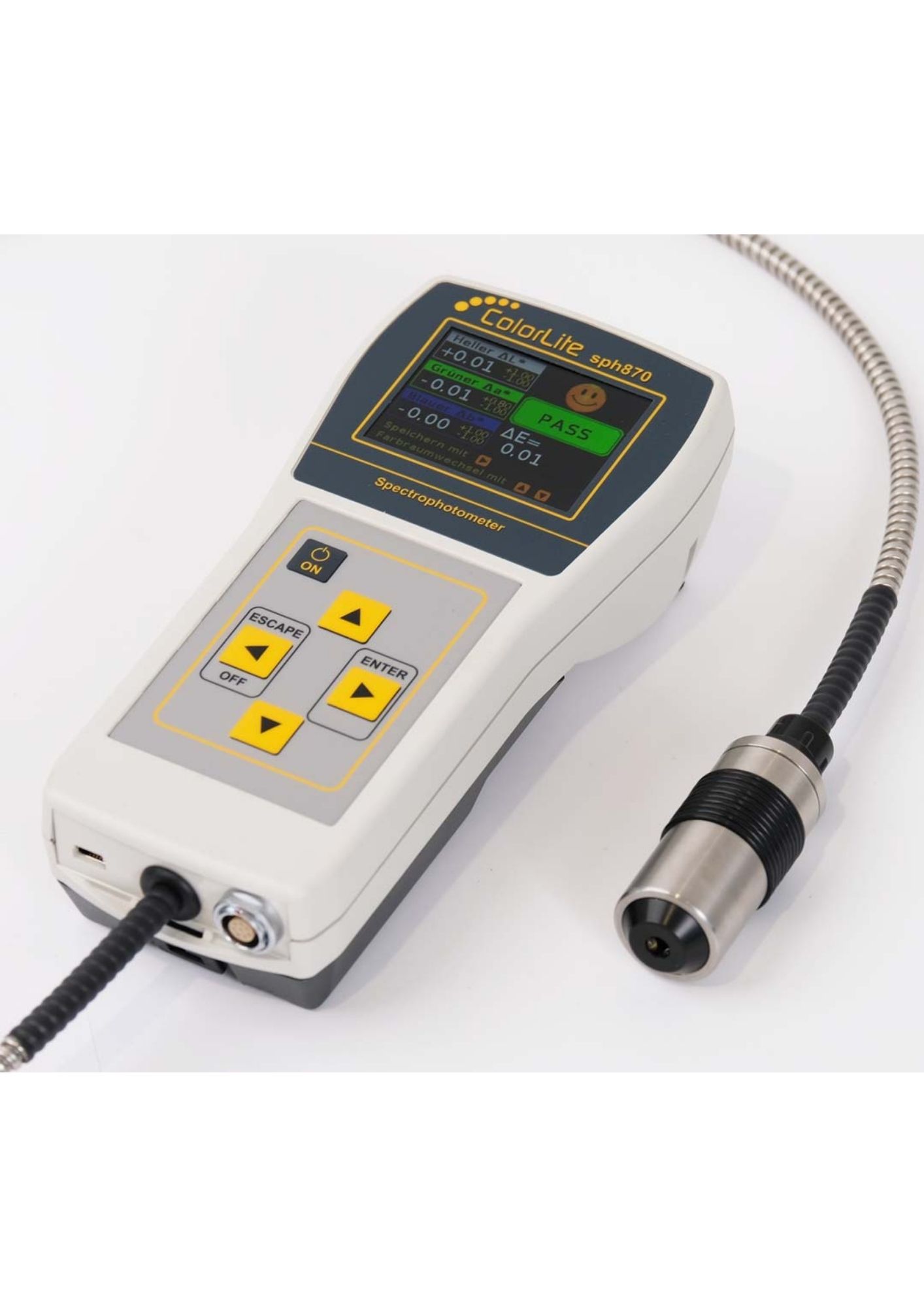

The sph870 is a user-friendly, portable spectrophotometer with a 45°/0° geometry, which due to the wide range of accessories available is suitable for a variety of surfaces and materials. For example, the system can be easily changed from the 45°/0° to a d/8° geometry simply by using our MA35 probe head adapter. The high-resolution technology enables a spectral scan in 3.5 nm steps in just 0.5 seconds. The menu is simple and well arranged, so that even untrained staff can perform the measurement task fast and accurate.



Applications

• Colour measurement and registration of goods intake and goods output according to DIN EN ISO 9000 standard
• Objective quality control of colours within a production
• Colour difference measurement to reference colours stored on the device



The delivery includes

• Certified white standard PTB (Physikalisch-Technische Bundesanstalt)
• Aluminium case with foam padding
• USB interface cable
• Temperature controlled battery charger
• User manual



Specifications

Measurement Geometry	45°/0° (area 3,5 mm) - or d/8° version - according to DIN 5033 Optional: 45°/0° AND d/8° with MA35-UK Adapter or d/0° with MA38-Adapter
Illuminants	D65, D55, D50, A, C, F11
Standard Observer	2° and 10°
Colour Scales	XYZ, Yxy, ΔE CIE L*a*b*, L*u*v*, L*C*h, Hunter Lab CIE-L*a*b* Diagramm incl. tolerance limits
Quality Control Tolerance Limits and Colour Differences	ΔE CIELab; ΔL, Δa, Δb; ΔL, Δu, Δv; ΔL, ΔC, Δh; Min/Max, PASS/FAIL
Spectral Light Source Measurement	Spectra and chromaticity measurement of light sources such as LED´s - optional
Spectral Range/ Wavelength	400 nm to 700 nm
Spectral Resolution	Holographic grating-Spectrometer FWHM @500 nm < 10 nm Scanning in 3,5 nm intervals Resolution: 115 x 16-Bit per scan
Display	TFT-colour display
Repeatability	< 0,05 ΔE CIELab
Light Source	White and blue LED´s Life span > 20 years
Automatic Accessory Recognition	An accessory is detected and device settings automatically modified accordingly
Ambient temperature	15 °C to 45 °C
Relative humidity	max. 85% not-condensing
