Spectrophotometer

Advantages

• Different geometries available: d/8°, d/0° and 45°/0°
• Solid aluminium housing with high quality hard anodised coating
• Fast and accurate measurement in 0.5 seconds
• Visual pass/ fail display via colour backlighting
• High powered LED-light source with an optimal life span



Description

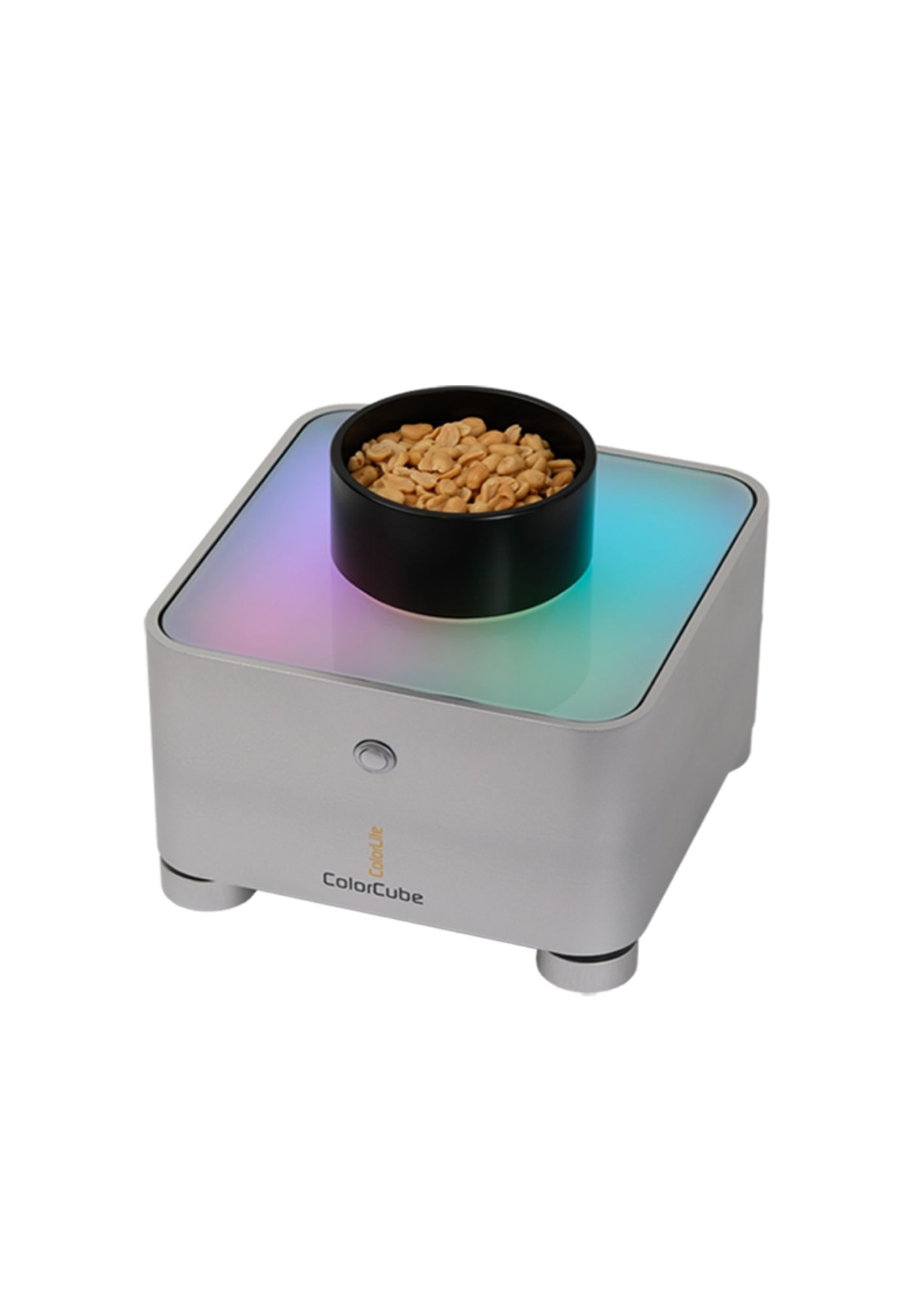

The ColorCube benchtop spectrophotometer – minimalistic and functional design – works easy and looks good.

Made from only the highest quality materials: solid aluminium housing, stainless steel trimming, illuminated safety glass cover and combining this with state of the art metrology technology.

Using high performance LED’s, with a life span of over 20 years and a grating spectrometer we can ensure perfect stability over its life time.

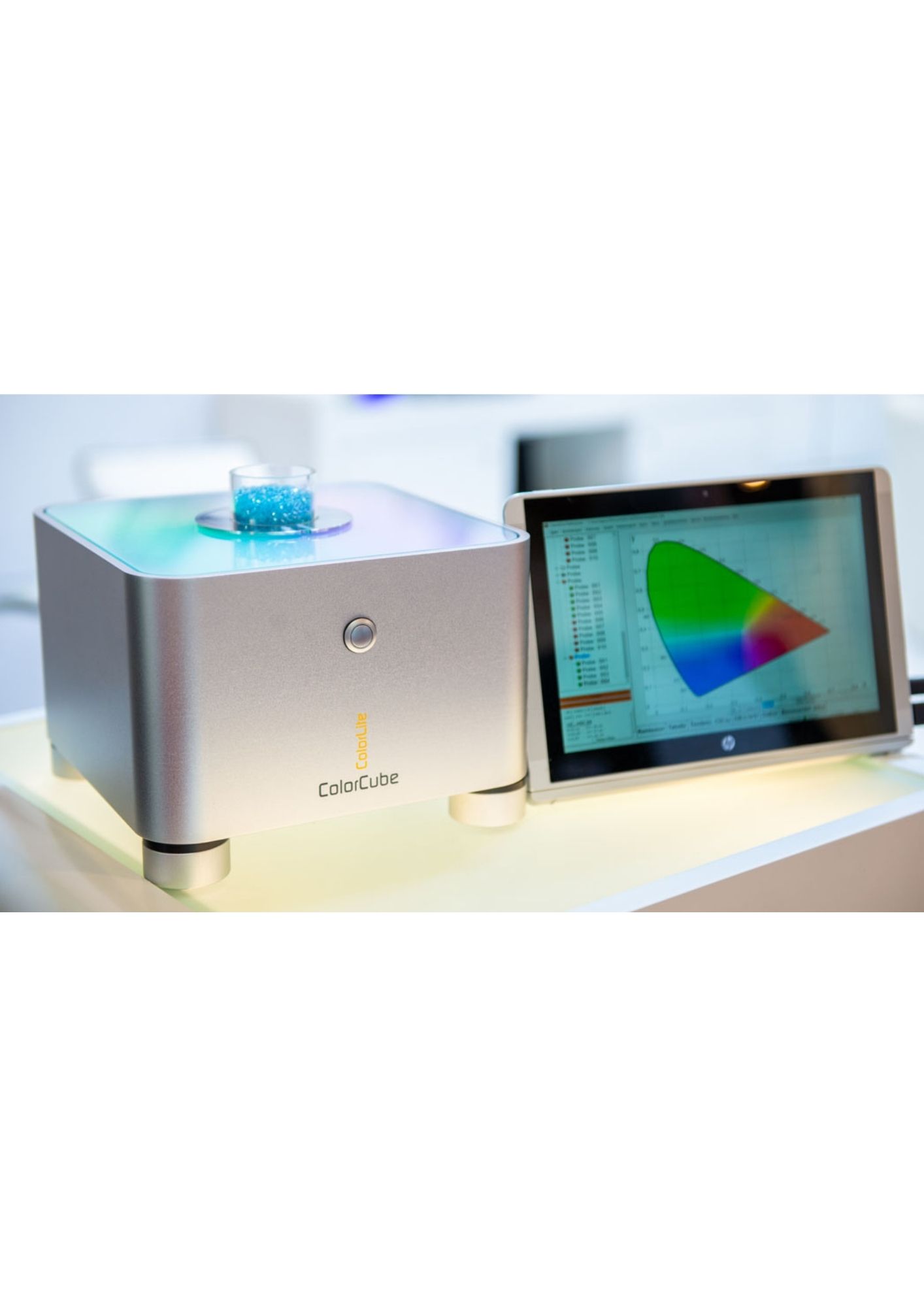

The ColorCube series can be connected easily via Bluetooth or USB cable with any Windows PC or tablet, together with the comprehensive quality assurance software offers your company the perfect solution for your laboratory.

The ColorCube series is available in different versions, with different scanning areas from 2 mm (d/8° geometry) to 80 mm (d/0° geometry) for a wide range of applications.

You can not only measure colour data with the ColorCube quickly and accurately, but also manage the data using our QS-software ColorDaTra to review, compare values and create professional reports in all common colour scales.



The delivery includes

• Certified white standard PTB (Bundesanstalt für Materialforschung)
• Black reference standard
• Metal or glass cuvette with light proof caps for nonsolid samples
• PC software ColorDaTra Professional licence with free updates
• USB interface cable
• Printed and CD user manual



Laboratory-Spectrophotometer	ColorCube -->	sph45 scan area 20 mm	sph38 scan area 38 mm	sph80 scan area 80 mm	sph d/8 scan area 3,6 or 10 mm
Measurement Geometry	45°/0° Circular illumination at 45°, Measurement at 0° - according to DIN 5033	X
	Diffuse illumination d/0°, Measurement at 0°		X	X
	Diffuse illumination d/8° - according to DIN 5033				X
Illuminants	D65, D55, D50, A, C, F11	X	X	X	X
Standard Observer	2° and 10°	X	X	X	X
Colour Scales	XYZ, Yxy, ΔE CIE L*a*b*, L*u*v*, L*C*h, Hunter Lab Remission Spectrum with cursor displaying wavelength and % CIE-L*a*b* Diagram incl. tolerance limits	X	X	X	X
Quality Control Tolerance Limits and Colour Differences	ΔE CIELab; ΔL, Δa, Δb; ΔL, Δu, Δv; ΔL, ΔC, Δh; Min/Max, PASS/FAIL, ΔECMC (1:1 und 1:2), CIE ΔE94, ΔE2000, dynamic index Metameric-Index for D65/A and D65/F11 according to DIN 6172	X	X	X	X
Other Values	Contrast: LRV (Light Reflectance Value) according to BS 8493:2008, Various White-Index values Various Yellowness-Index values Grey-Index Hazen/APHA; JOD	X	X	X	X
Spectral Range/ Wavelength	400 nm to 700 nm	X	X	X	X
Spectral Resolution	Holografic grating-Spectrometer FWHM @500 nm < 10 nm Scanning in 3,5 nm intervals Resolution: 115 x 16-Bit per scan	X	X	X	X
Repeatability	< 0,03 ΔE CIELab	X	X	X	X
Dimensions	150 mm x 230 mm x 230 mm (H x L x W); 6,3 Kg	X	X	X	X
Light Source	White and blue LED´s Life span > 20 years	X	X	X	X
Power Supply	USB 2.0	X	X	X	X
