Leak Tester

Product Features

Multiple Test Modes & Automatic Testing Process

• Positive pressure method
• Multiple test modes including burst test, creep test, creep-to-failure test and pressure retaining test
• Dual test methods of restraint distension and unrestraint distension at customer's choice
• Real-time display of test curves and automatic statistics of test data
• Test range can be selected for non-standard tests
• Main components and parts are supplied by well-known global manufacturers, with guaranteed performance

Innovative Real-time Monitoring of Gas Inlet Flow

• Real-time monitoring of gas inlet flow under high pressure ensures the uniform testing condition during testing process
• High repeatability of test data

Brand New Patented Intelligent Touch Operating System

• Industrial grade touch screen, one-button operation, simplified operating interface, remote upgrade and maintenance
• Chinese and English operating interface
• Automatic data storage and power failure memory to prevent data loss
• Storage up to 1200 test records
• Multiple-level user management and login with password
• Micro-printer and USB ports for data transmission (optional)
• The instrument conforms to the requirements of GMP (optional)
• Labthink’s unique DataShiled^TM System for data management and connecting with information system (optional)



Test Standard

ISO 11607-1, ISO 11607-2, GB/T 10440, GB 18454, GB 19741, GB 17447, ASTM F1140, ASTM F2054, GB/T 17876, GB/T 10004, BB/T 0025, QB/T 1871, YBB 00252005, YBB 00162002



Applications

Basic Applications
Plastic Composite Bags Test the compression resistance of various plastic films, aluminum films, paper plastic composite films, aluminum plastic composite films and other packaging bags
Flexible Tubes Including various flexible tubes used in daily chemical products and other industries, e.g. flexible tubes of toothpaste, face cream, cosmetics, pharmaceutics and food
Creep Test Including various packaging bags and boxes
Creep to Failure Test Including various packaging bags and boxes
Extended Applications
Burst Test Of Blister Packs Including various blister packs
Aerosol Valves Test seal performance of various aerosol valves, e.g. vales of pesticide, hair spray, auto spray paint and medical spray packages
Three-Sided Sealing Materials Test withstand pressurization stress of packaging bags with three-sided seal and one-sided open
High Pressure Test The maximum test pressure could reach 1.6MPa
Pilfer-proof Closures Test seal performance of various tamper-evident closures, e.g. closures used in packages for Coke, mineral water, beverage, edible oil, sauce (soy, vinegar and cooking wine), three-piece cans (beer and beverage) and paper cans (cylinder shape for potato chips )





Technical Specifications

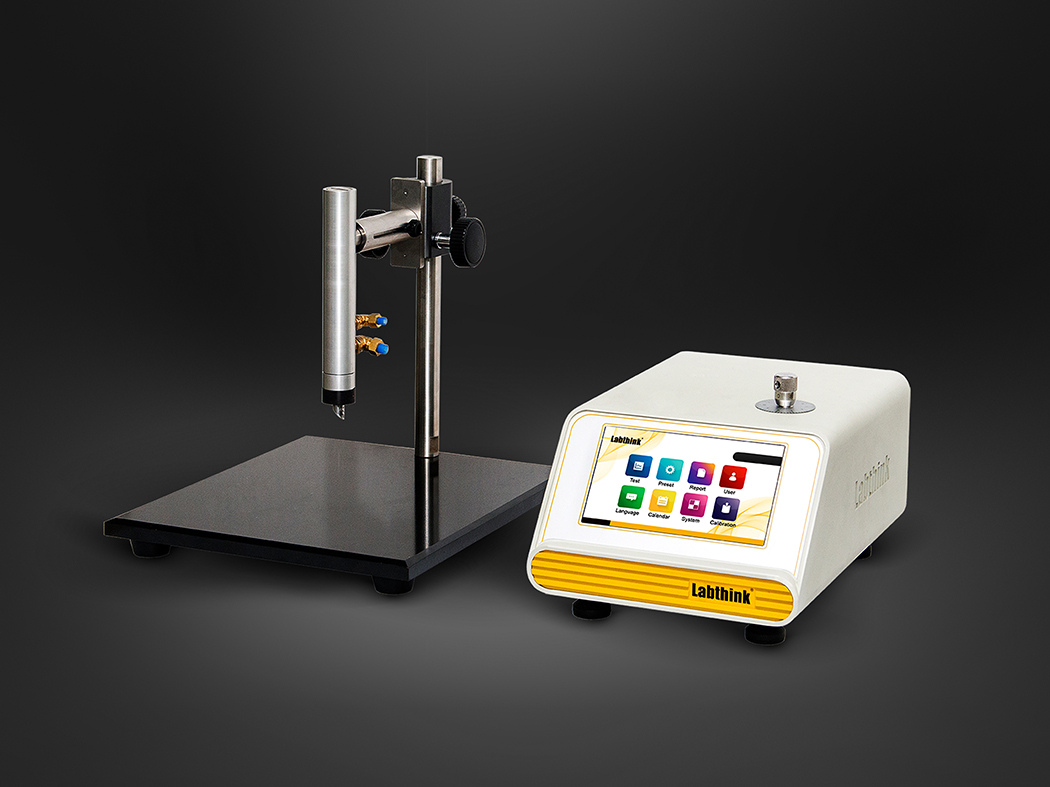

Specifications	C660M Leak and Seal Strength Tester
Test Range	0 ~ 600 KPa; 0 ~ 87.0 psi (standard)
	0 ~ 1.6 MPa; 0 ~ 232.1 psi (optional)
Resolution	0.1 KPa / 0.01 psi
Pressure Accuracy	±0.25%FS
Gas Injection Head	Φ10 mm (standard) Φ4 mm, Φ1.6 mm (optional)
Gas Flow Rate	0.01~10L/min
Pressure Retaining Time	0.1s ~ 999999.9 s
Gas Supply	Air
Gas Supply Pressure	0.6MPa ~ 0.7MPa (87psi ~ 101psi)
Port Size	Φ8 mm PU Tubing
Instrument Dimension	334 mm (L) x 230 mm (W) x 200 mm (H)
Test Frame Size	305 mm (L) x 356 mm (W) x 338 mm(H)
Power Supply	220VAC±10% 50Hz / 120VAC±10% 60Hz
Net Weight	8Kg (Instrument) 16Kg (Pedestal)





Configurations

Standard Configurations

Instrument, Test Frame, Sealing Gasket, Φ8mm PU Tubing (2m)

Optional Parts

Micro-printer, Professional Software, Communication Cable, Test Fixtures for Extended Applications, Air Compressor, GMP System, DataShield^TM

Note

1. The gas supply port of the instrument is Φ8 mm PU Tubing;
2. Customers need to prepare gas supply.
