Unleash the power of light printing

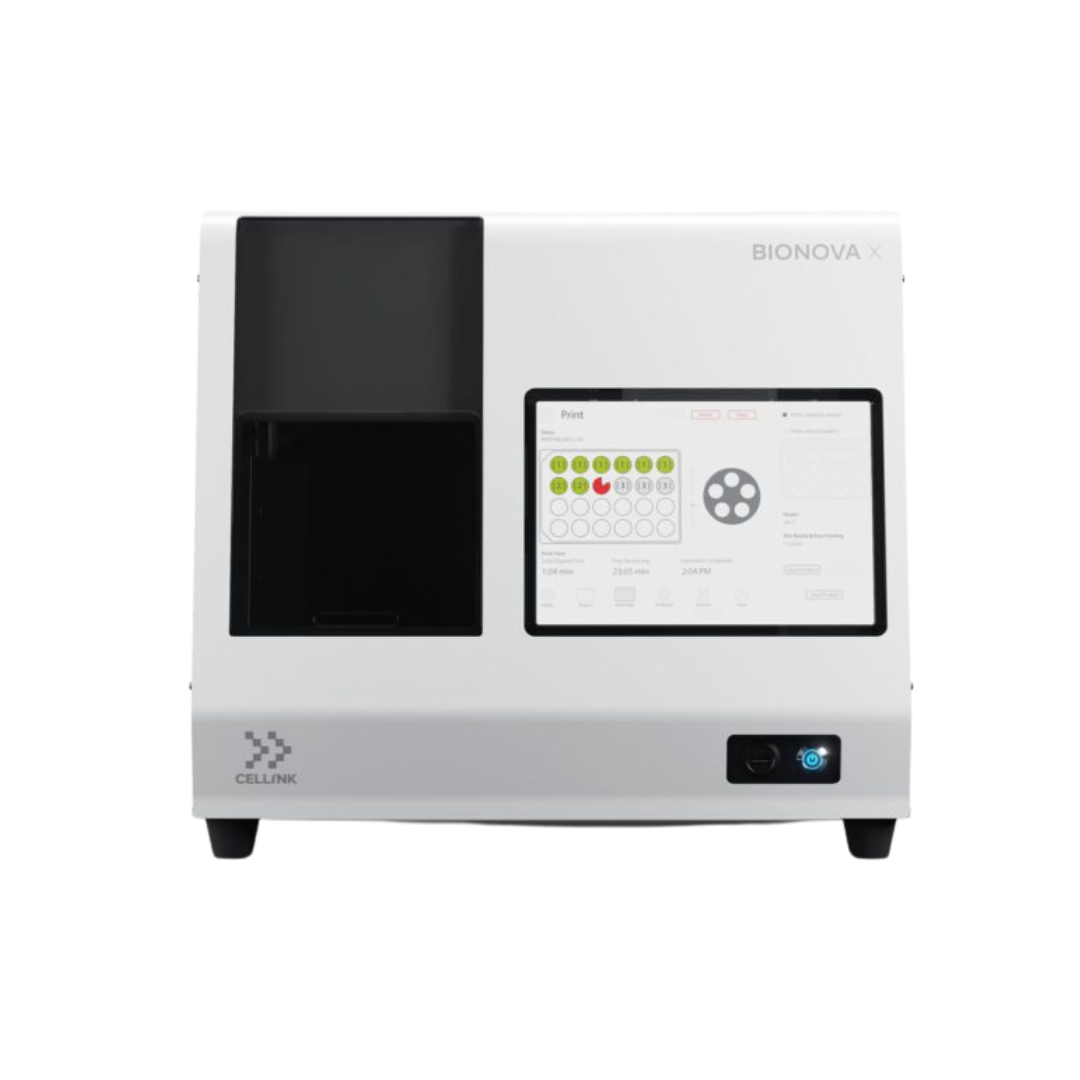

Designed with usability in mind, the BIONOVA X enables high resolution live cell printing, a new frontier in light-based 3D bioprinting.
Features
Direct In-well Printing
For the first time ever, bring the power of DLP 3D bioprinting directly to multi well plates, up to 24 wells, ideal for high throughput applications.
Unmatched Resolution
With 10μm feature resolution the BIONOVA X is the most accurate DLP 3D bioprinter available. Effortlessly model microarchitecture, vasculature, and complex geometries.
Fast Became Faster
Utilizing a patented continuous printing technology the BIONOVA X possesses unparalleled speeds without sacrificing print fidelity.
Technical specifications
|
3D Bioprinting technology |
Direct in-well layerless printing with digital light projection-based technology |
|
|
Printing resolution (XY) |
10 μm |
|
|
Z-precision (motor driven) |
4 μm |
|
|
LED wavelength |
405 nm |
|
|
Intensity range |
4- 16 mW/cm2 |
|
|
Heater temperature |
Room temperature to 60 °C |
|
|
Well plate format |
24 well plate, 12 well plate, 6 well plate |
|
|
Build volume |
24 well plate |
63.6 mm2 (Ø 9 mm) x 6.5 (Z) mm |
|
12 well plate |
9.0 mm (X) x 9.0 mm (Y) x 9 mm (Z) |
|
|
6 well plate |
19.2 mm (X) x 10.8 mm (Y) x 9 mm (Z) |
|
|
Display |
10” touch screen, glove friendly |
|
|
Connectivity |
1x USB port (type A) |
|
|
Software |
On-board software |
|
|
Support file types |
.stl, .png, .bmp, .jpg |
|
|
Sterility |
UVC sterilization of chamber (270+-10 nm) |
|
|
Dimensions |
20.3” (W) x 15” (D) x 17.4” (H) 515 mm (W) x 380 mm (D) x 441 mm (H) |
|
|
Weight |
90 lbs (41 kg) |
|
|
Power supply input |
100-240VAC, 50-60Hz, 200W |
|
