AXE - B11 3D Scanner
Get accurate 3D data without powder-sprayed for shiny objects. 1,300,000 scanning speed and up to 0.020 mm accuracy.
WhatsappOverview

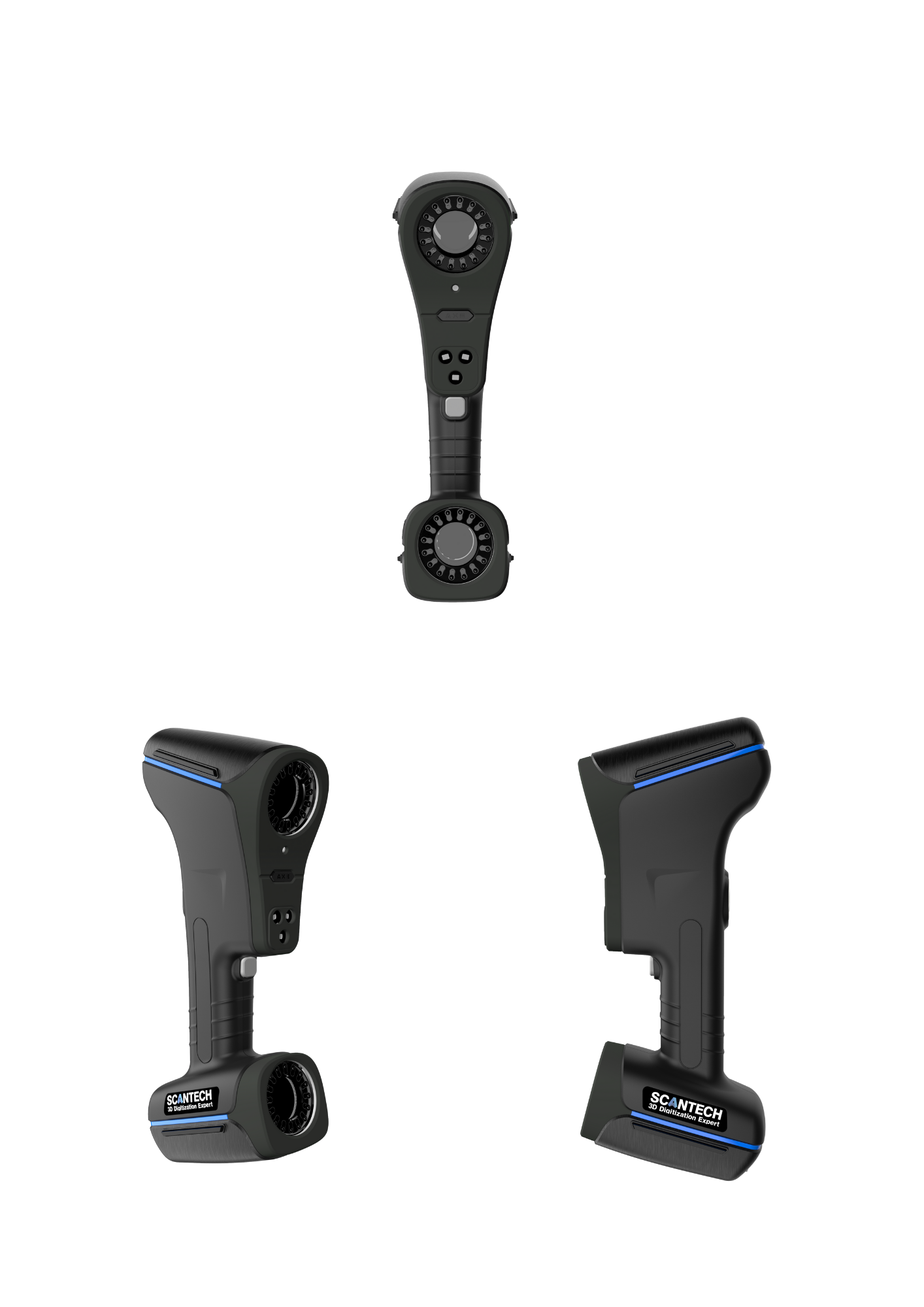

AXE-B11 3D scanner opens up a new 3D experience to large-scale 3D measurement without an extra device.
The 11 crossed blue lasers greatly increase the measurement rate to 1,300,000 measurements/s. And the single blue laser line can rapidly obtain 3D data of deep hole and inaccessible positions of complex objects.

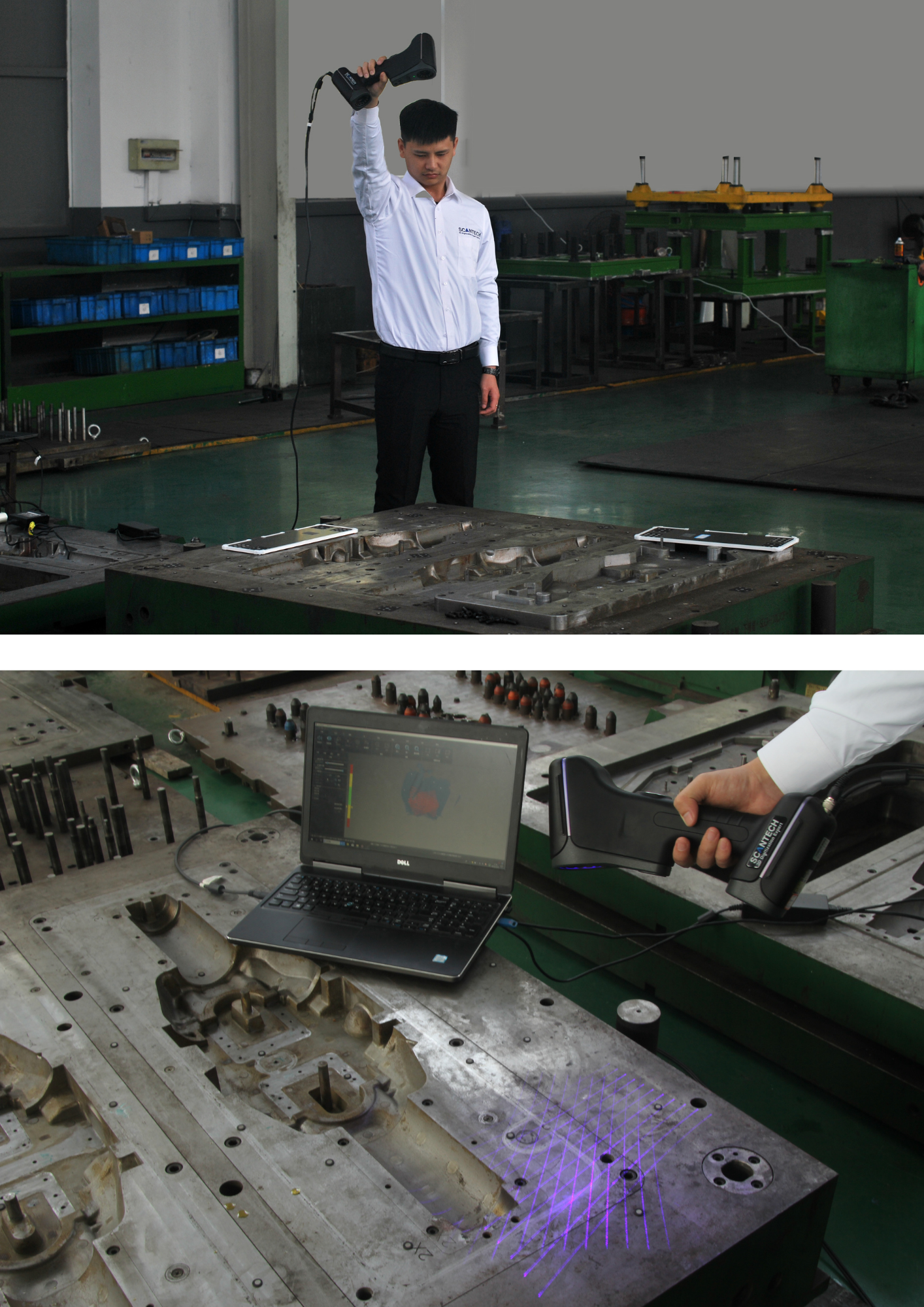

The built-in photogrammetry function can scan large-scale objects with ultra-high accuracy individually (volumetric accuracy up to 0.020 mm/m and accuracy up to 0.020 mm).
The built-in photogrammetry system improves volumetric accuracy up to 0.020 mm/m and accuracy up to 0.020 mm. AXE-B11 offers professional 3D scanning for large-volumes without an extra device.
The ultra-fast speed facilitates the process of measuring large volumes by 1,300,000 measurements/s, saving numerous working time and labor cost. With 550 mm × 600 mm of scan area, it only needs very few markers to finish the scanning.

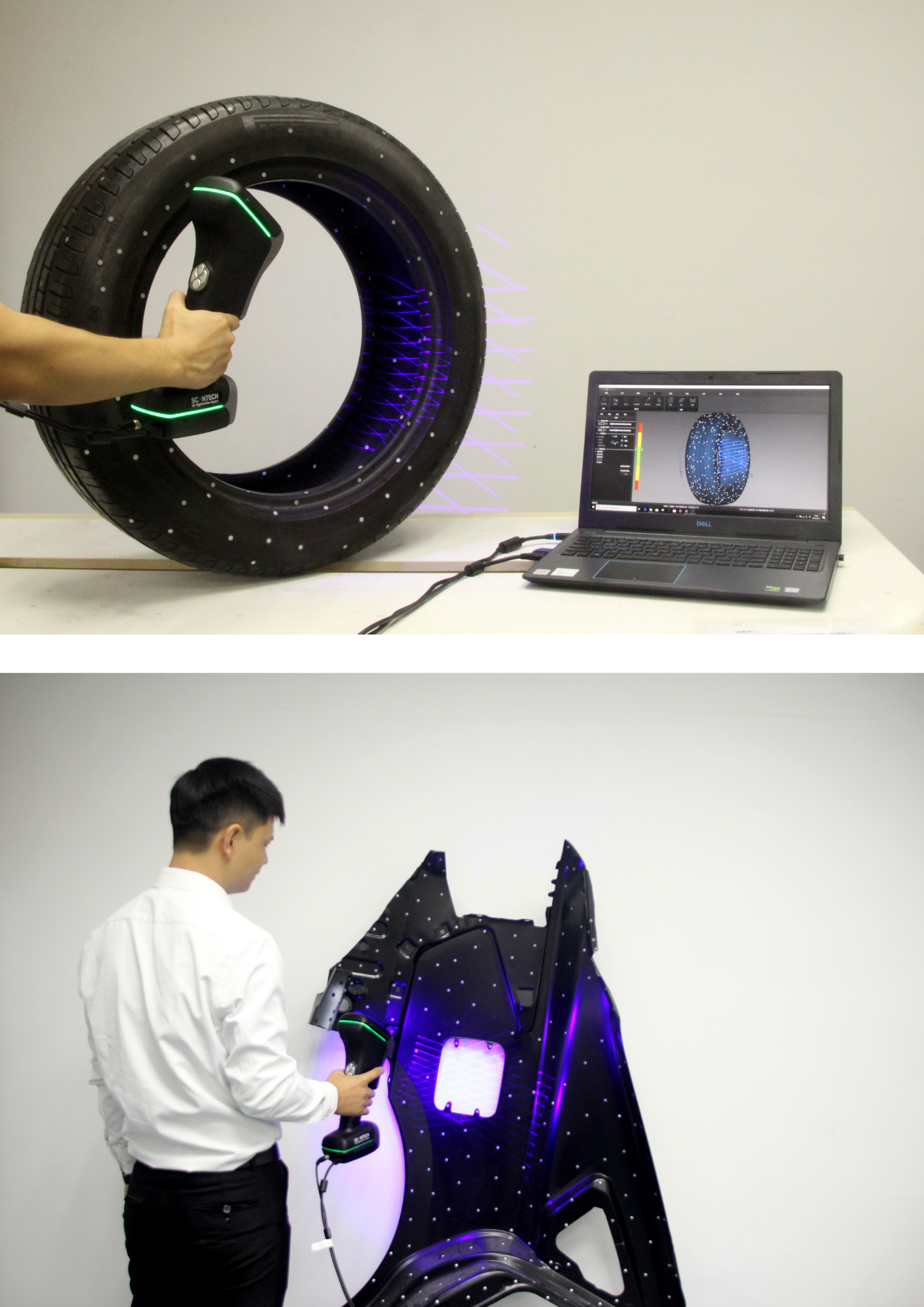

Due to 11 crossed blue lasers + 1 extra blue laser line, AXE-B11 supports high-efficiency mode for large-scale scanning and single line scanning mode meets special requirements, such as deep hole and dead angle inspection.
AXE-B11 3D scanner fulfills different measurement demands by freely matching with the accurate reference bar, Helpers engineer kit, etc.
Technical specification
| Type | AXE-B11 | ||
|---|---|---|---|
| Laser source | 11 blue laser crosses + 1 extra blue laser line | ||
| Deep hole scanning | 1 extra blue laser line | ||
| Accuracy | Up to 0.020 mm | ||
| Measurement rate | Up to 1,300,000 measurements/s | ||
| Scanning area | Up to 550 mm × 600 mm | ||
| Scanning area (photogrammetry) | 2500 mm × 3000 mm | ||
| Laser class | CLASS II (eye-safe) | ||
| Resolution | 0.025 mm | ||
| Volumetric accuracy (without extra device) |
0.020 mm + 0.035 mm/m | ||
| Stand-off distance | 300 mm | ||
| Depth of field | 500 mm | ||
| Depth of field (photogrammetry) | 2500 mm | ||
| Output formats | .stl, .ply, .obj, .igs, wrl, .xyz, .dae, .fbx, .ma, .asc or customized | ||
| Operating temperature range | -10°C – 40°C | ||
| Interface mode | USB 3.0 | ||
| Patents | CN204329903U, CN104501740B, CN104165600B, CN204988183U, CN204854633U, CN204944431U, CN204902788U, CN105068384B, CN105049664B, CN204902784U, CN204963812U, CN204902785U, CN204902790U, CN106403845B, CN209197685U, CN209263911U, CN206905709U, CN107202554B, US20200225030A1, US10309770B2, KR102096806B1, KR102209255B1, US10914576B2, EP3392831A4 | ||
