Solid Phase Extraction System

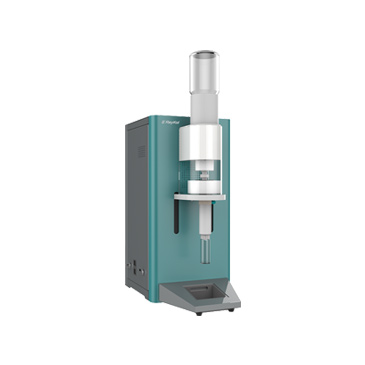

Auto Extra D10 Automated solid-phase extraction system is an automated sample pre-treatment instrument specialized in handling water samples for detection and analysis of organic pollutants in water, to enrich and purify trace organic pollutants in large water samples. RayKol Auto Extra D10 combines disk extraction with negative pressure sample loading to significantly improve the efficiency of solid-phase extraction and decrease sample preparation duration before water quality analysis. And its effective rinsing function to sample vials reduces the adsorption of target compounds on vials, to ensure accuracy and repeatability of analysis results.



Features

• Combination of disk and column extraction

• Maximum 10 units, can run different methods on each unit

• Direct sample loading and filtration, as well as complex sample matrices

• Negative pressure extraction

• Precise and accurate solvent injection

• Remote WIFI control



Specifications

Parameter	Specification
Extraction channel	1 unit, maximum 10 units
SPE disk size	47mm, 50mm, 90mm
SPE cartridge size	6mL
Sample volume	20mL to 4L
Flow rate of SPE disk	≥100mL/min
Solvent capacity	8
Software interface	Windows PC; WIFI connection
Operating temperature	10 to 40°C
Operating humidity	20 to 80%
Power supply	200 to 240V, 50/60Hz
