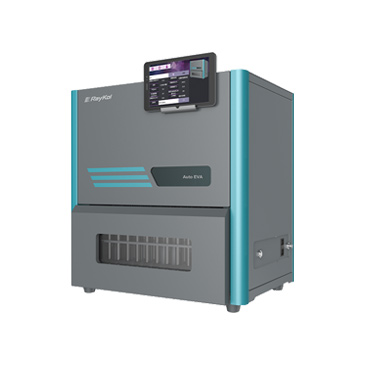

Nitrogen Evaporator

RayKol Auto EVA series Automated Nitrogen Evaporation System is an automated parallel evaporator for large batch of samples. It performs rapid and safe evaporation to samples under water bath heating and nitrogen blowing. Operaters can have direct control and real-time monitoring during the entire process through their remote electronic devices.



Features

• Batch evaporation up to 60 samples at once

• High degree of automation, unattended operation

• Highly flexible with various sample sizes

• Compatible with RayKol automated extraction system

• Wide range of applications



Specifications

Parameter	Specification
Concentration	Water bath heating and nitrogen blowing
Nitrogen channel	10
Sample capacity	60
Sample vials	10 to 100mL
Temperature control	PID
Temperature range	Room temperature to 90°C, precise to 1°C
Software interface	Android tablet/smartphone; WIFI connection
Dimension	55cm x 40cm x 58cm
Weight	45kg
Power supply	200 to 240V, 50/60Hz
Power rate	1700W
Fume hood/ventilation	Required
Storage temperature	0 to 40°C
Storage humidity	20 to 85%
Operating temperature	10 to 40°C
Operating humidity	20 to 80%
