Nitrogen Evaporator

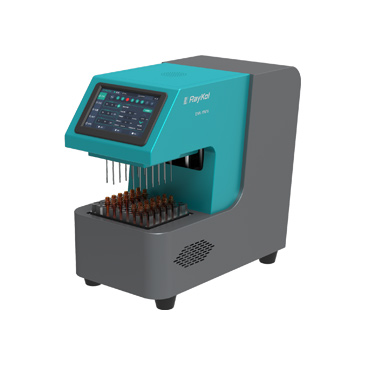

Auto EVA mini Automated Nitrogen Evaporation System is specialized in the concentration of small-volume samples, it uses nitrogen gas flow and sample rack heating to perform rapid and stable evaporation. RayKol Auto EVA mini is compatible with commonly used microplates on the market, such as 96 shallow-well plates, 96 deep-well plates, 24 and 48-well microplates. The design in 96 nitrogen-blowing needles makes the flow from each nitrogen-blowing needle consistent and stable. The optional nitrogen gas heating module can accelerate evaporation in a microplate. Auto EVA 80 is also compatible with 2mL GC vials and 1 to 2mL centrifuge vials, which can be applied in fast evaporation of 2mL purification solutions in QuEChERS.



Features

• Batch concentration for small-volume samples

• Accurate and flexible in gas flow rate control

• Good compatibility, variety of accessories

• Smart and graphical software control



Specifications

Parameter	Specification
Concentration	Nitrogen blowing and sample rack heating
Nitrogen channel	4
Sample capacity	24, 96

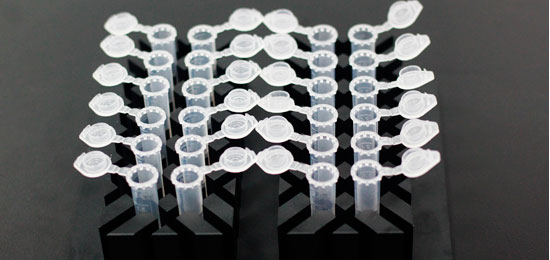

Sample vials	2mL/5mL centrifuge vials, 2mL GC vial, 96-well microplate
Range of flow rate	0 to 3.0L/min, precise to 0.1L/min
Temperature range of sample rack	Room temperature to 100°C, precise to 0.1°C
Temperature range of nitrogen gas flow	Room temperature to 70°C
Software interface	7-inch built-in touch screen
Dimension	47cm x 25cm x 43cm
Weight	21kg
Power supply	200 to 240V, 50/60Hz
Power rate	1000W
Fume hood/ventilation	Required
Storage temperature	0 to 40°C
Storage humidity	20 to 85%
Operating temperature	10 to 40°C
Operating humidity	20 to 80%
