Auto EVA 80 Automated Parallel Nitrogen Evaporator
Upgraded from the features of Auto EVA series, evaporation up to 80 samples
WhatsappOverview

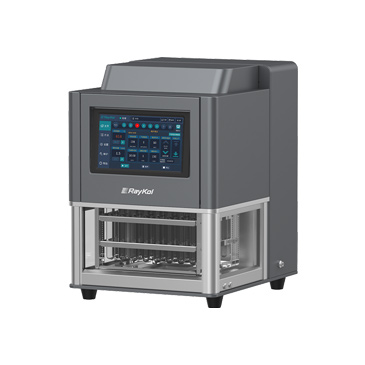

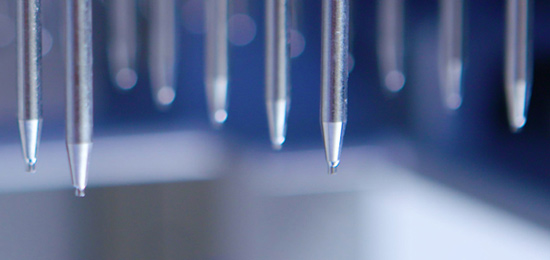

RayKol Auto EVA 80 is the second generation of high-throughput automated nitrogen evaporation system upgraded from Auto EVA 60. Integrated the features from the previous models, upgraded Auto EVA 80 continues to have needle following functions to keep the optimal distance between needle tips and liquid level, and to ensure efficient and parallel evaporation for sample concentration.
Features
-
Batch evaporation up to 80 samples
-
Integration of product features from Auto EVA 60
-
Transparent sink design for clear observation
-
Built-in touch screen, direct software control
-
Compact design with high throughput
Specifications
| Parameter | Specification |
| Concentration | Water bath heating and nitrogen blowing |
| Nitrogen channel | 8 |
| Sample capacity | 80, 48 |
| Sample vials | 10 to 100mL |
| Range of flow rate | 0 to 3.0L/min, precise to 0.1L/min |
| Software interface | 10 inch built-in touch screen |
| Dimension | 40cm x 48cm x 54cm |
| Weight | 48kg |
| Power supply | 200 to 240V, 50/60Hz |
| Power rate | 1500W |
| Fume hood/ventilation | Required |
| Storage temperature | 0 to 40°C |
| Storage humidity | 20 to 85% |
| Operating temperature | 10 to 40°C |
| Operating humidity | 20 to 80% |
