Nitrogen Evaporator

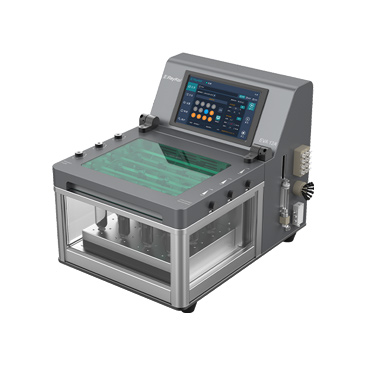

RayKol Auto EVA 12 is a nitrogen blow-down evaporation system that provides automated evaporation of up to 12 samples in parallel with endpoint detection. It uses vortex airflow generated from stable angled nitrogen blow, to constantly disturb the sample surface and lower its vapor pressure in order to gain gently rapid evaporation under water bath heating. Each sample position is equipped with optical sensor to precisely determine endpoint of concentration. User can have real-time monitoring to whole process through built-in touch screen, make it easier to access and observe.



Features

• Batch processing, simultaneous evaporation of up to 12 samples in parallel

• Rapid concentration under water bath and nitrogen blowing

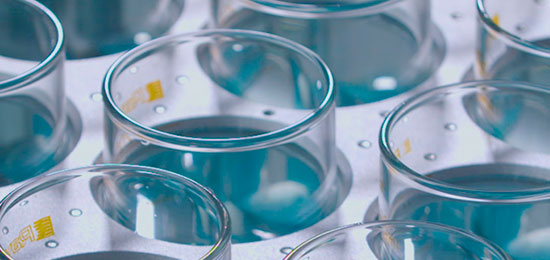

• Transparent sink design for observation

• Good compatibility with various sample vials and ajustable blowing angle

• Automatic endpoint detection to avoid over-drying

• Sprinkle rinsing to sample vials to maximize recovery rate



Specifications

Parameter	Specification
Concentration	Water bath heating and nitrogen blowing
Sample capacity	12
Range of concentration temperature	Room temperature to 60°C
Sample vials	65mL, 260mL; glass tube with stems
Endpoint detection	1.0mL, 0.5mL
Range of gas flow rate	0 to 5.0mL/min, precise to 0.1mL/min
Software interface	10-inch built-in screen
Dimension	58cm x 46cm x 56cm
Weight	41kg
Power supply	200 to 240V, 50/60Hz
Power rate	1500W
Fume hood/ventilation	Required
Storage temperature	0 to 40°C
Storage humidity	20 to 85%
Operating temperature	10 to 40°C
Operating humidity	20 to 80%
