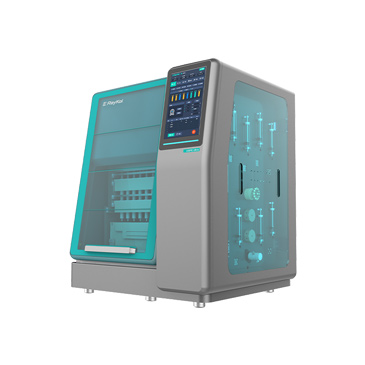

Solid Phase Extraction System

ASPE Ultra series Automated Solid Phase System is an automated sample preparation system designed for analysis of organic substances in water samples, including drinking water, tap water, underground water, surface water as well as wastewater. RayKol ASPE Ultra can be used in the purification and enrichment of target compounds in water samples before analytical instrumentation, it automatically completes the steps of filtering, conditioning, loading, rinsing, drying, eluting and concentration, fully unattended extraction, avoiding exposure of hazardous chemicals to lab technicians, easy to build up a smart and safe laboratory environment.



Features

• Fully automatically preprocess water samples before analytical instrumentation

• Good parallelism and reproducibility by independent pump-valve system and stable flow rate control

• Avoid environmental interferences by a light-proof hood and airtight cavity design

• Higly compatible with various applications, disk and column extraction available

• Real-time monitoring, easy to access anytime



Specifications

Parameter	Specification
Product	ASPE Ultra 06	ASPE Ultra 08
Extraction channel	6	8
SPE disks	25mm, 47mm	25mm, 47mm
SPE cartridges	3mL, 6mL, 12mL	3mL, 6mL, 12mL
Solvent capacity	7	7
SPE column drying	Vacuum; nitrogen gas purge+vacuum	Vacuum; nitrogen gas purge+vacuum
Material contact with solvents	Teflon, glass	Teflon, glass
Waste discharge channel	3 (water sample waste; organic waste; organic waste contain fluorine)	3 (water sample waste; organic waste; organic waste contain fluorine)
Software interface	Built-in screen control	Built-in screen control
Dimension	66cm x 58cm x 76cm	66cm x 58cm x 76cm
Weight	50kg	50kg
Power supply	200 to 240V, 50/60Hz	200 to 240V, 50/60Hz
Power rate	450W	450W
Storage temperature	0 to 40°C	0 to 40°C
Storage humidity	20 to 85%	20 to 85%
Operating temperature	10 to 40°C	10 to 40°C
Operating humidity	20 to 80%	20 to 80%
