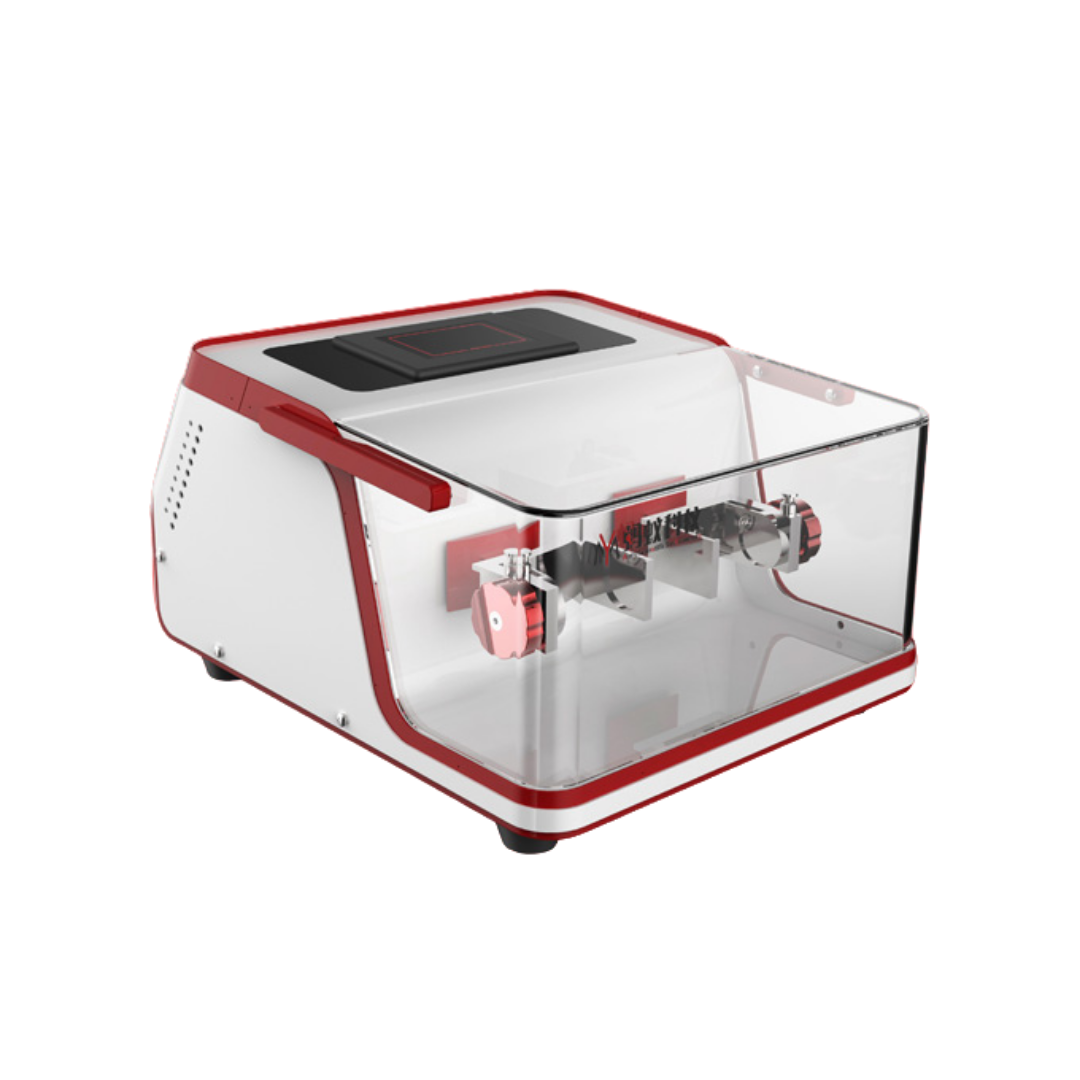

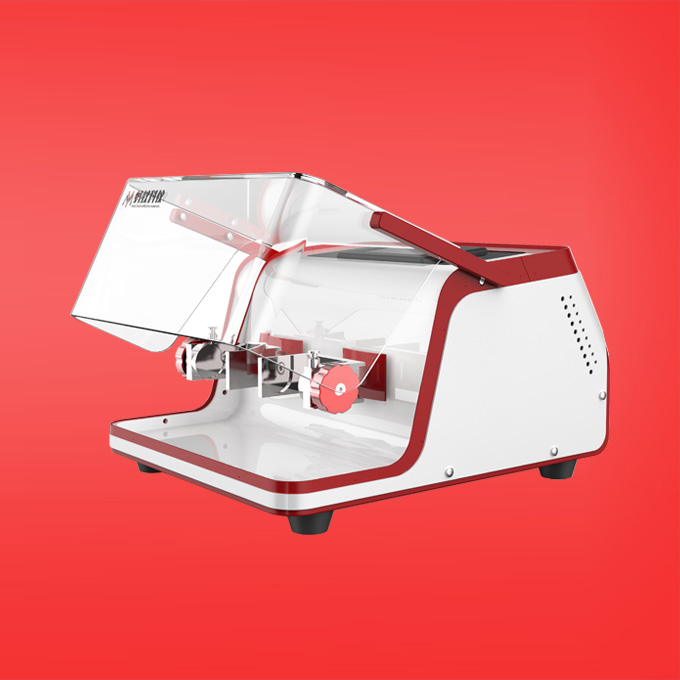

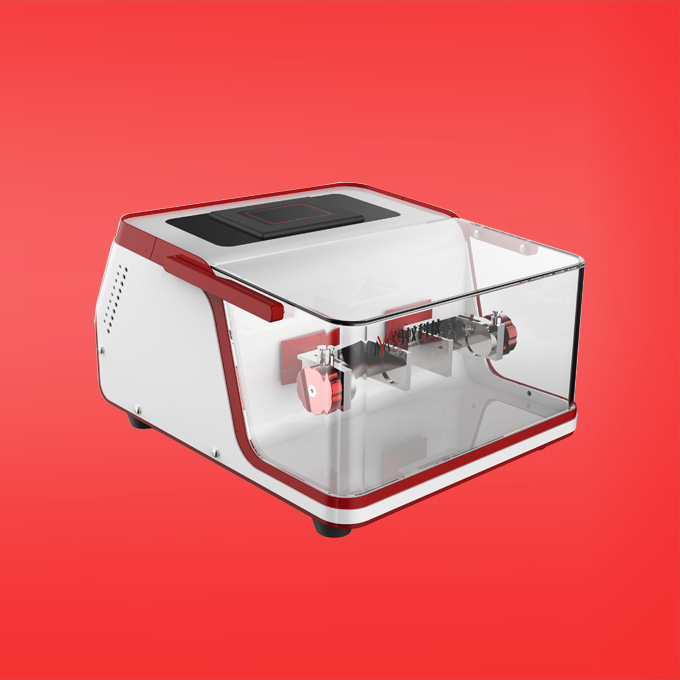

AM100S HF Vibratory Ball Mill
AM100S HF Vibratory Ball Mill is suitable for soft, medium-hard, hard, brittle and ductile samples. Grinding can be done either dry or wet, wet is suitable for high fineness, even meets the requirements of preparing alloy by mechanical method.
WhatsappOverview
HF vibratory ball mill is developed especially for dry and wet grinding of small sample amounts. It‘s laboratory "all-rounders". It can be rapidly and efficiently grinded and homogeneous in a very short time and at frequencies up to 35HZ. Under certain grinding conditions, some samples can reach sub micron level.
It can grind for dry, wet and freeze. Moreover, it can pulverize two samples from 0.2 to 45ml at the same time. AM100 is also perfectly suitable for the disruption of biological cells as well as for DNA/RNA recovery. Various materials grinding jars are suitable for many fields. Agate and zirconia are the best choice for heavy metal
Performance advantage
•Compact and light, and can be brought to the scene as portable equipment.
•Dry, wet and low temperature in liquid nitrogen for grinding.
•A variety of materials grinding jar and multi aperture adapters are optional.
•Large range of grinding jars and maximum sample quantity 2 x45ml, multi aperture adapter sample quantiy 6×100ml.
•High sample throughput due to short grinding times and two grinding stations, especially suitable for the disruption of biological cells as well as for DNA/RNA recovery.
•Good sealing, eliminate cross contamination between samples
•Reproducible results by digital preselection of grinding time and vibrational frequency
•Memory keys for three parameter combinations, The grinding process is more standardized and efficient.
•The automatic center location and safety locking device can ensure the quick location of the grinding kit, high efficiency and safety.
•The instrument is equipped with an electromagnetic safety system to ensure the safety of the operator.
Application
Grains, Food, Biology, Medicine, Mineral, Soil, Glass, Plastic
Technical information
|
Technical information |
HF vibratory ball mill AM100 |
HF vibratory ball mill AM151 |
HF vibratory ball mill AM100S |
|
Sample type |
Hard, medium-hard, soft, brittle, elastic, fibrous |
||
|
Feed size |
Maximum 15mm (The smaller the feed size, the better the grinding effect) |
||
|
Final fineness |
About 5 μm (Depending on the nature of the sample and grinding environment) |
||
|
Feeding quantity |
6×100ml |
48×2ml |
6×100ml |
|
Display |
Button |
LCD touch |
LCD touch |
|
Setting grinding time |
1s-99min 59s Continuously adjustable |
1s-99h59min59s Continuously adjustable |
|
|
Intermittent time setting |
- |
1s-99min59s |
|
|
Stop time setting |
- |
1s-99min59s |
|
|
Setting vibrational frequency |
1Hz-35Hz (60rpm-2100rpm) |
1Hz-70Hz (Single) |
1Hz-35Hz (60rpm-120rpm) |
|
Grinding environment range |
Dry, wet, low temperature ginding in liqid nitrogen |
||
|
Grinding jar volume |
80ml, 50ml, 35ml, 25ml, 10ml, 5ml |
25ml, 10ml, 5ml |
80ml, 50ml, 35ml, 25ml, 10ml, 5ml |
|
Grinding jar material |
Chrome steel, Stainless steel, Zirconia, Tungsten carbide, PTFE |
Chrome steel, Stainless steel, Zirconia, agate, PTFE |
Chrome steel, Stainless steel, Zirconia, Tungsten carbide, PTFE |
|
Adapter holes |
5ml×4 holes (Stainless steel) 5ml×6 holes 5ml×12 holes 2ml×10 holes 2ml×24 holes 2ml×48 holes 1.2ml×96 holes |
5ml×12 holes 2ml×24 holes 2ml×48 holes
|
5ml×4 holes (Stainless steel) 5ml×6 holes 5ml×12 holes 2ml×10 holes 2ml×24 holes 2ml×48 holes 1.2ml×96 holes |
|
Adapter material |
PTFE, Stainless steel, Aluminum |
||
|
Grinding ball diameter |
0.1-1.5mm, 2mm, 3mm, 5mm, 7mm, 10mm, 15mm, 20mm, 25mm, 30mm
|
||
|
Tool for opening |
Suitable for 5ml-80ml grinding jar |
Suitable for 5ml-50ml grinding jar |
Suitable for 5ml-80ml grinding jar |
|
Grinding platform |
2 |
1 |
2 |
|
Load display |
No |
Yes |
|
|
Automatic center positioning device |
Yes |
||
|
Automatic storage parameter combination |
9 groups |
10 groups |
|
|
Cycles |
No |
1-20 times |
|
|
W×H×D |
402mm×290mm×472mm |
270mm×494mm×358mm |
384mm×267mm×461mm |
|
Net weight |
Approx.30Kg |
Approx.40Kg |
Approx.30Kg |
|
Electrical parameters |
220V 240W |
220V 120W |
220V 240W |
