Nutsche Filter

Pressurised filtration in an all glass design

AGI Benchtop Nutsche Filter is designed for solid-liquid separation applications. Pressures of up to 2 barG can be applied in the vessel, which helps to accelerate filtration and reduce solvent evaporation at elevated temperatures.

Manual agitation using a flat blade allows gentle slurry mixing, dissolution, cake smoothing and free flowing powder formation. Benchtop Nutsche Filter offers a convenient method for solid-liquid separation with a high degree of containment and material safety.

• Accelerated filtration
• Minimal product loss and cross-contamination
• All glass design for process visibility



AGI Benchtop Nutsche Filter is designed to accommodate all steps of the solid-liquid separation process. It offers material safety and prevents cross-contamination during material processing.

• Pressurised filtration up to 2 bar G
• Jacketed and non-jacketed versions
• Full jacket design for maximised thermal transfer
• Integrated pressure relief and shield for safety
• All glass design for continuous process visibility
• Removable filter and flush valve for easy cleaning
• Wide process temperature range -90°C to +200°C
• Vessel tilt function for easy product recovery



Features

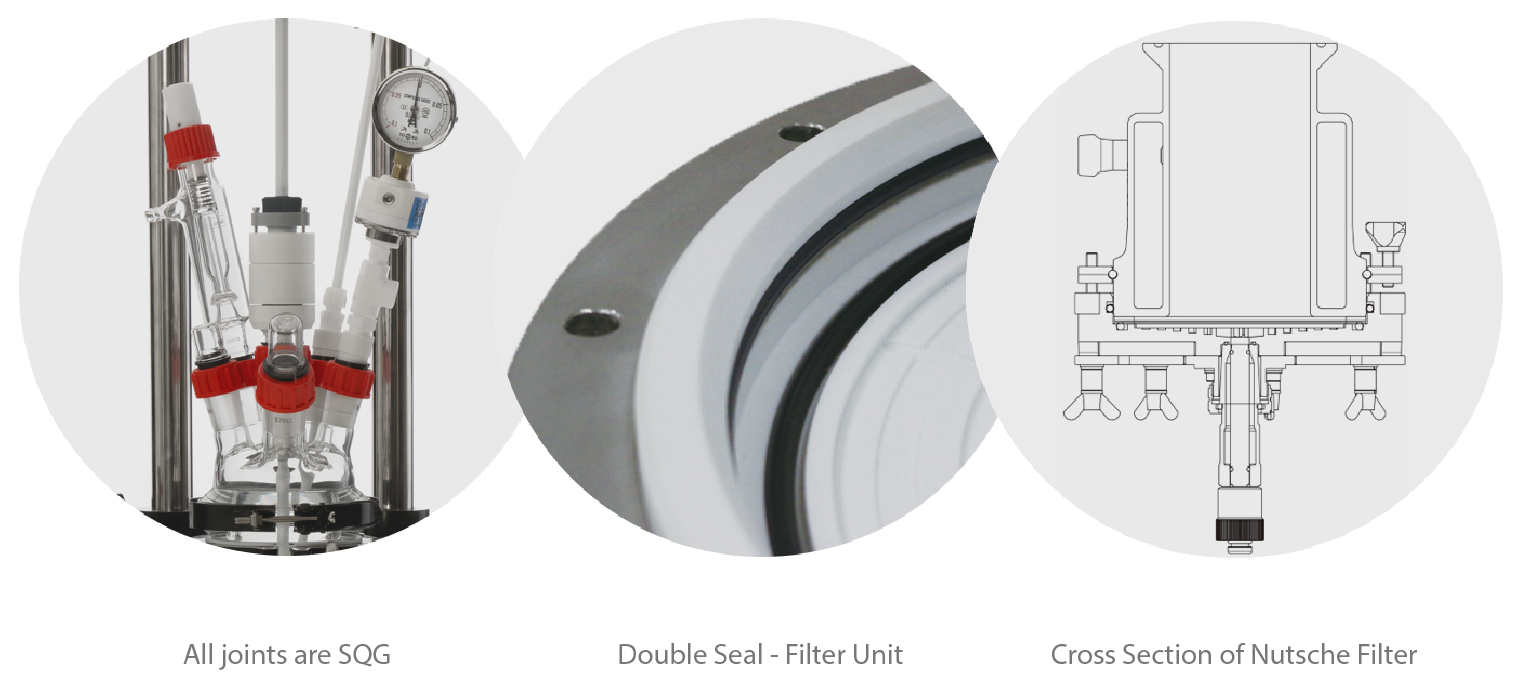

Sealed for up to 2 bar pressure usage

The vessel, filter, lid, and components are all designed to withstand pressures of up to 2 barG.

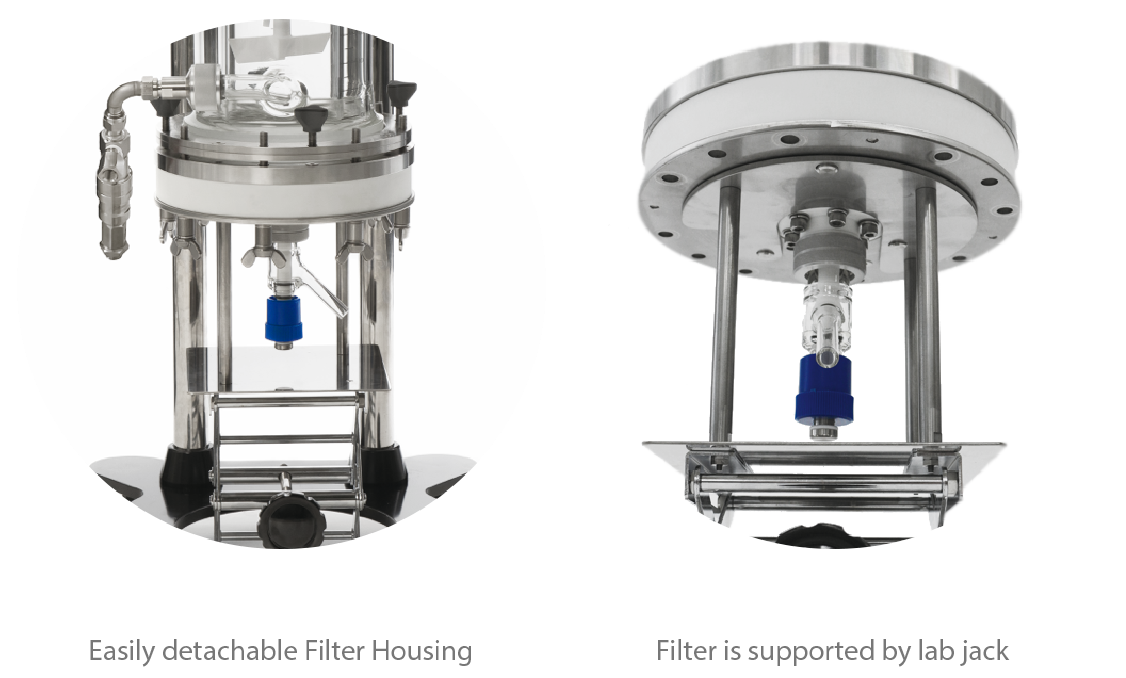

Easy to use filter

Easy mounting and unmounting of the filtration part



All round protection

• Safety for users and the equipment
• Process visibility while being protected



Multipurpose stirrer blade

The filtration stirrer blade helps to mix the slurry during the mixing phase, and smoothens the product cake (in a clockwise rotation) so that the washing medium passes through it uniformly, ensuring thorough washing. After washing, the filtration stirrer blade helps to break apart (in a counter-clockwise rotation) the product cake for easy drying.

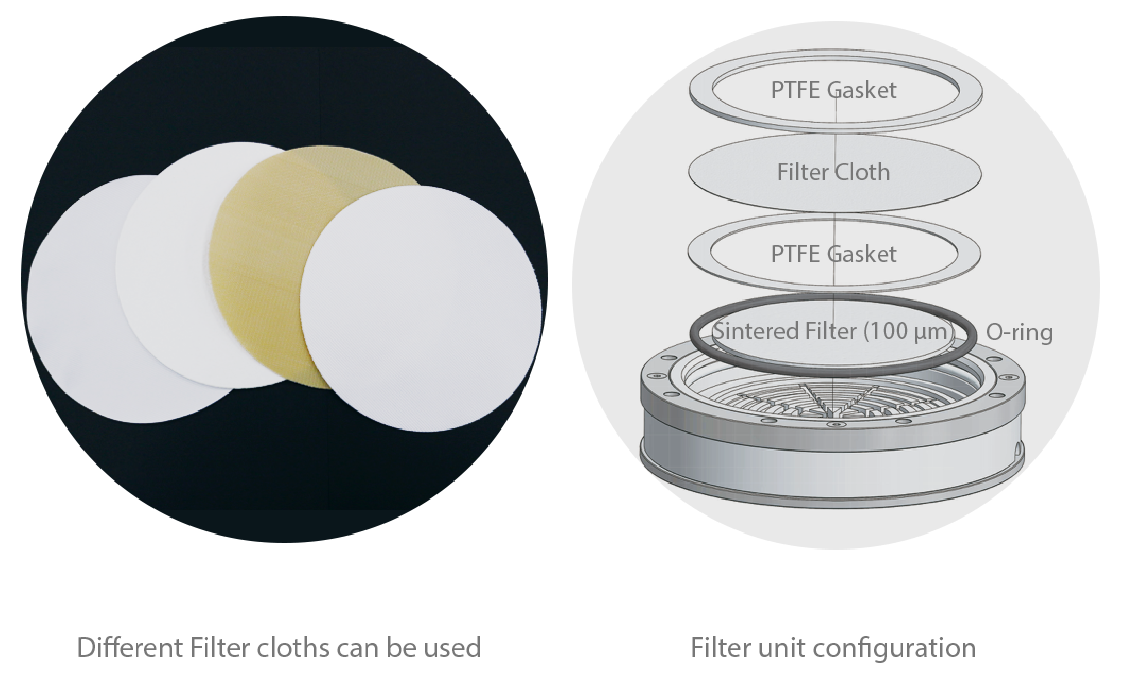

Effective filtration

Our filtration part is meticulously designed to perform washing and filtration effectively. The gasket with O-ring forms a perfect seal between the glass and the PTFE plate.



Convenient quick-release couplings

• Mess-free work space
• Convenience for product collection

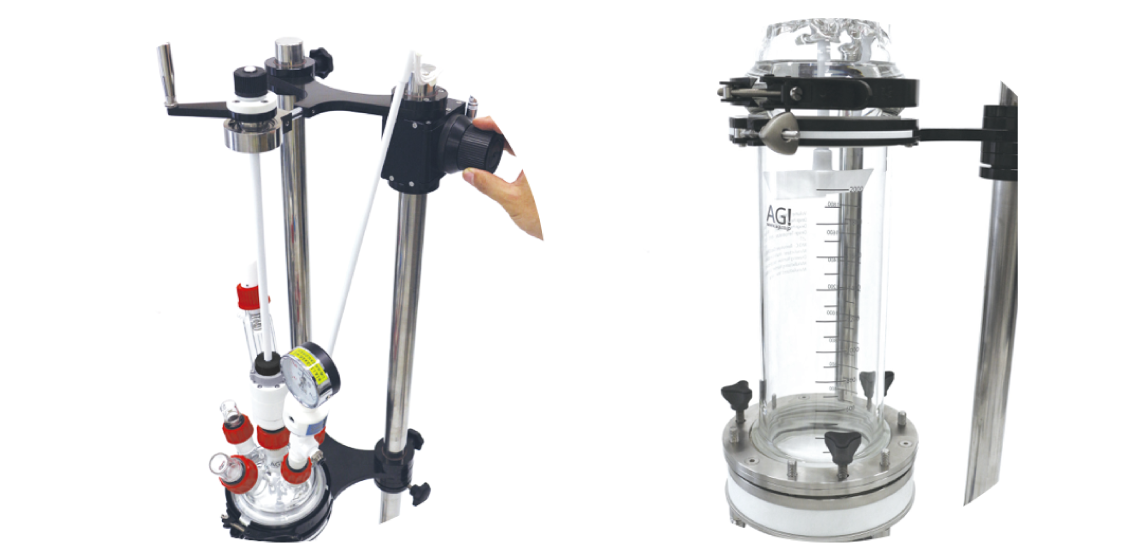

Easy end product collection

Vessels can be rotated 360° in the stand using the vessel swing/rotation mechanism.

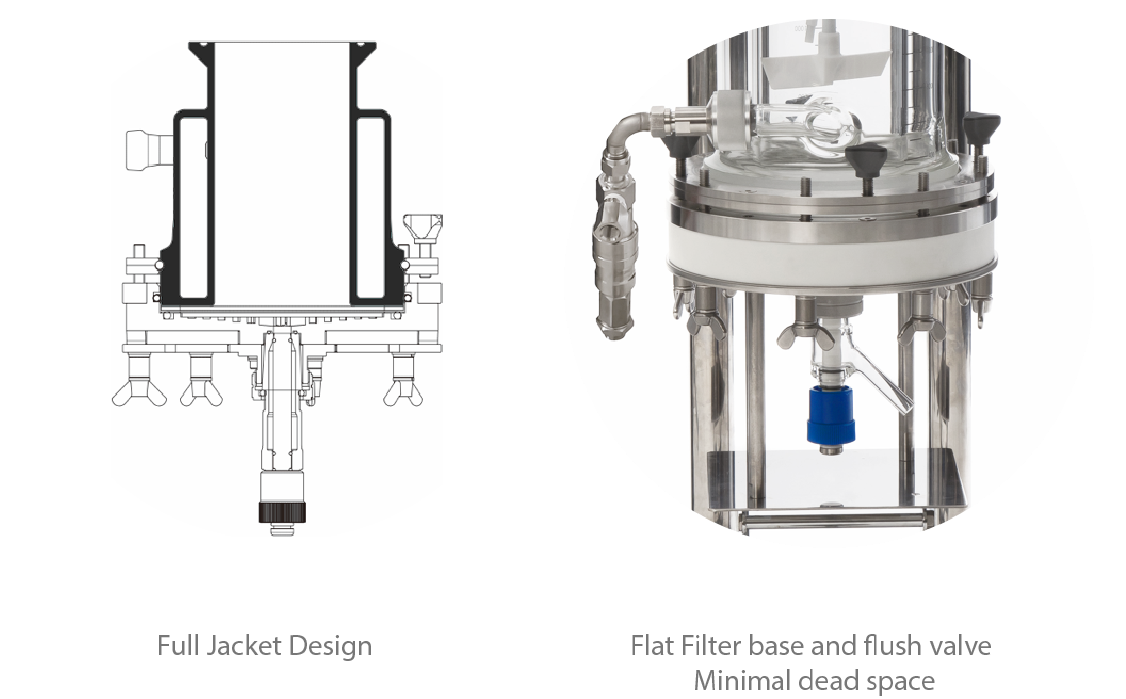

Full jacket design for high thermal performance

• High performing vessel
• Filter with low dead volume



Specifications

Vessel capacity

1 L, 2 L, 3 L and 5 L

Vessel type

Single wall or double wall (full jacket)

Filtration area

78.5 cm² (1 L & 2 L) 176.7 cm² (3 L & 5 L)

Operating pressure

Full vacuum to +2 barG (+0.2 MPa)

Operating jacket pressure

Up to +0.5 barG (+0.05 MPa)

Operating temperature

-90 °C to +200 °C

ΔT - Thermal shock resistance

110 °C (double wall)
