DNA/RNA Extraction System

Overview

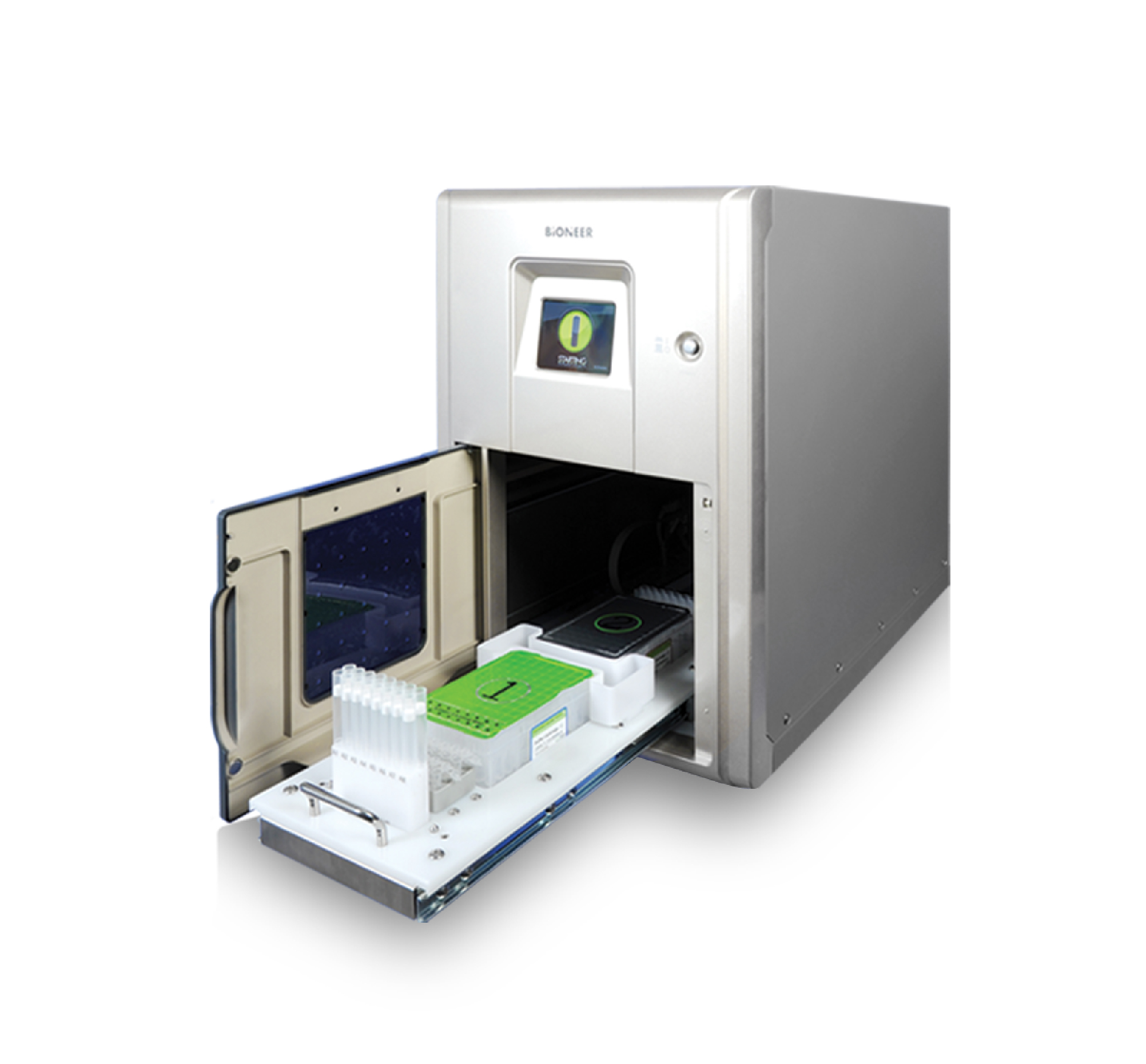

ExiPrep™ 16 Plus extracts nucleic acids and purifies protein automatically up to 16 samples. Through optimized experimental protocols, it not only allows to get reproducible results, but also wide compatibility with various types of nucleic acids and protein samples. Furthermore, this instrument has excellent space utilization thanks to its small size.



Features and Benefits

• Built-in optimized nucleic acid extraction protocol

  Simplified usage and reproducible results with built-in nucleic acid extraction and protein purification protocols optimized for various samples and targets

• High-purity nucleic acid extraction

  Extraction of highly pure nucleic acids by attaching magnetic particles to the bottom of each well equally and rapidly by magnetic blocks attached to the instrument
  Increased elution efficiency allowing complete evaporation of alcohols by its heating block

• Prevention of contamination

  Substantial blocking of cross-contamination, which may occur in other wells by the aerosols generated from the tip, through the sophisticated designs drop-contamination prevention device located at the bottom of the filter tip

• Automatic UV sterilization

  Sterilization to prevent infection for the users by the samples through the UV lamp installed inside the instrument

• Easy-to-use

  User-friendly UI capable of checking the experimental progress rate real-time without the need of seperate PC by equipping with a 3.5-inch touch screen on the front of the device

• Excellent Precision

  Minimized error range, that may occur during the automatic dispensing of the solution, through installment of an adjustable syringe motor up to 0.1 mm capable of stably distributing in a volume of 25 ul ~ 1000 ul for application to various protocols and obtaining of experimental results



Application

Division	Application
University and Business Institute	Nucleic acid extraction and protein purification from various samples
University Hospital Research Institute	Nucleic acid extraction for research and development from blood, tissues and various biological samples
Food companies, restaurants	Nucleic acid extraction required for GMO/food poisoning test in a short time from various foodstuffs
Military, police	Nucleic acid extraction necessary for biologic terrorism causative bacteria and food poisoning causative bacteria

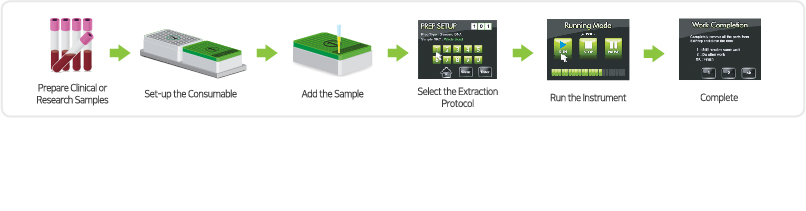

 Workflow

Specifications

Dimensions (cm)	32 (W) x 48.7 (H) x 53.5 (D)
Weight (kg)	22
Voltage / Frequency	100 - 240 VAC, 50/60 Hz
Heat block	40 - 90°C
Temperature range	15 - 35°C
Humidity range	20 - 80%, no condensation
Operating system	Standalone
Communications	TCP/IP
User interface	320 x 240 touch screen graphic LCD
UV sterilization	15 minute cycle

* Specifications of this product are subject to change without notice to improve product performance.



Comparisons

ExiPrep™ 16 Plus	ExiProgen™
DNA/RNA Extraction	O	O
Protein Synthesis	X	O
Protein Purification	X	O
TFT touch screen	O	O
Sample	16 samples	16 samples X Number of instrument
UV sterilization	O	O
Heater & magnetic block	O	O
Contamination shield of catridge	O	O
TCP/IP network	X	Numerous instrument can be connected
Cooling system for sample store	X	O
Automatic aliquoting	X	O
Power supply	24 VDC, 2.7A(60W)	24 VDC, 7.5A(180W)
weight	22 kg	27 kg

* Unlike ExiProgen™, ExiPrep™ 16 Plus does not offer storing function.



Experimental Data

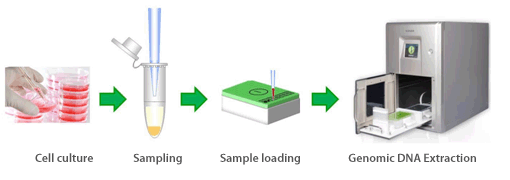

1. Genomic DNA from cultured mammalian cell (HeLa)

• Sample volume: 1X10⁶ cells
• Protocol number: 109
• Total prep time: about 1 hr 30 min.
• Average yield: 4-8 μg

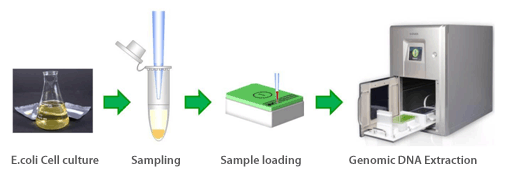

2. Genomic DNA from bacteria (E.coli)

• Sample volume: 1X10⁹ cells
• Protocol number: 109
• Total prep time: about 1 hr 40 min.
• Average yield: 8-12 µg

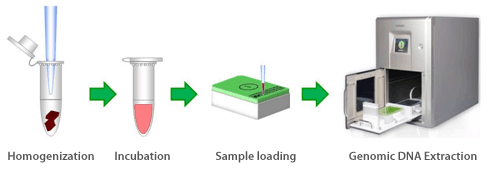

3. Genomic DNA from tissue (bovine skeletal muscle)

• Sample volume: ~ 25 mg
• Protocol number: 102
• Total prep time: about 1 hr 30 min.
• Average yield: Up to 20 µg

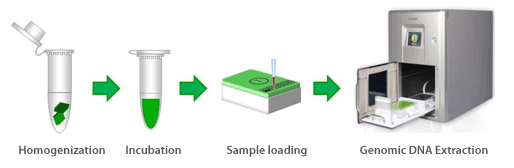

4. Genomic DNA from plant tissue (spinach leaf)

• Sample volume: ~ 100 mg
• Protocol number: 104
• Total prep time: about 1 hr
• Average yield: Up to 5 µg

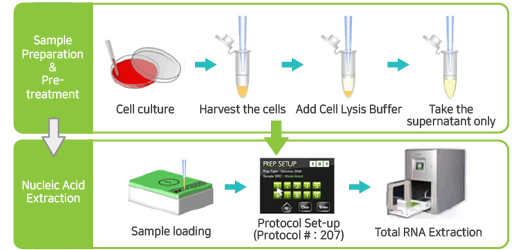

5. RNA extraction from cultured mammalian cells (HeLa).

• Sample volume: 1.0 X 10⁶ cells
• Protocol number: 207
• Average yield: Up to 10 µg
• Average RQS: 9.5 or more
