78001 Microdrill
The hand-held cranial drill can only take ⼀ seconds to drill. It is simple to operate and easy to master. With a flat head, it can also grind the skull thin. In the process of brain stereotaxic positioning, the first step is to open a hole in the skull, so that the injection needle, electrode sleeve, tube microdialysis catheter and so on can be easily implanted. The micro hand-held cranial drill can achieve this opening function, which can choose to hold a hole or fix it on the cranial drill holder of the brain stereotaxic instrument. The operation is simple and easy to master.
WhatsappOverview
Features
During the stereotactic positioning of the brain, first of all, the skull needs to be perforated so that the injection needle, electrode sleeve, and micro-dialysis catheter can be easily implanted. The micro-hand-held cranial drill can achieve this perforation function. It can be either hand-held drill or fixed to the cranial drill holder of the stereotactic instrument, which is simple to operate and easy to master
Technical Specifications
- Speed up to 35,000rpm.
- Forward or reverse available.

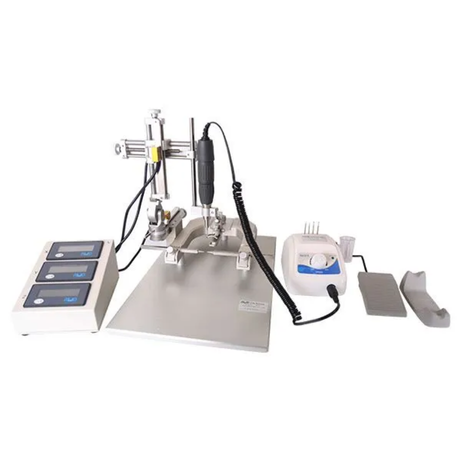

- Can be installed onto the stereotaxic instrument by the microdrill holder (Model: 68605) and controlled by the manipulator.
- Controlled manually or by foot pedal.
- Various drill bits available, diameter from 0.5-1.0mm.
Model Information
| Model | Product Description |
| 78001 | Microdrill (bits not included) |
| 78040 | Drill Bits HM1005 0.5mm, Round Tip, pkg of 5 |
| 78041 | Drill Bits HM1006 0.6mm, Round Tip, pkg of 5 |
| 78042 | Drill Bits HM1008 0.8mm, Round Tip, pkg of 5 |
| 78043 | Drill Bits HM1010 1.0mm, Round Tip, pkg of 5 |
| 78060 | Drill Bits HM31008 0.8mm, Flat Tip, pkg of 5 |
