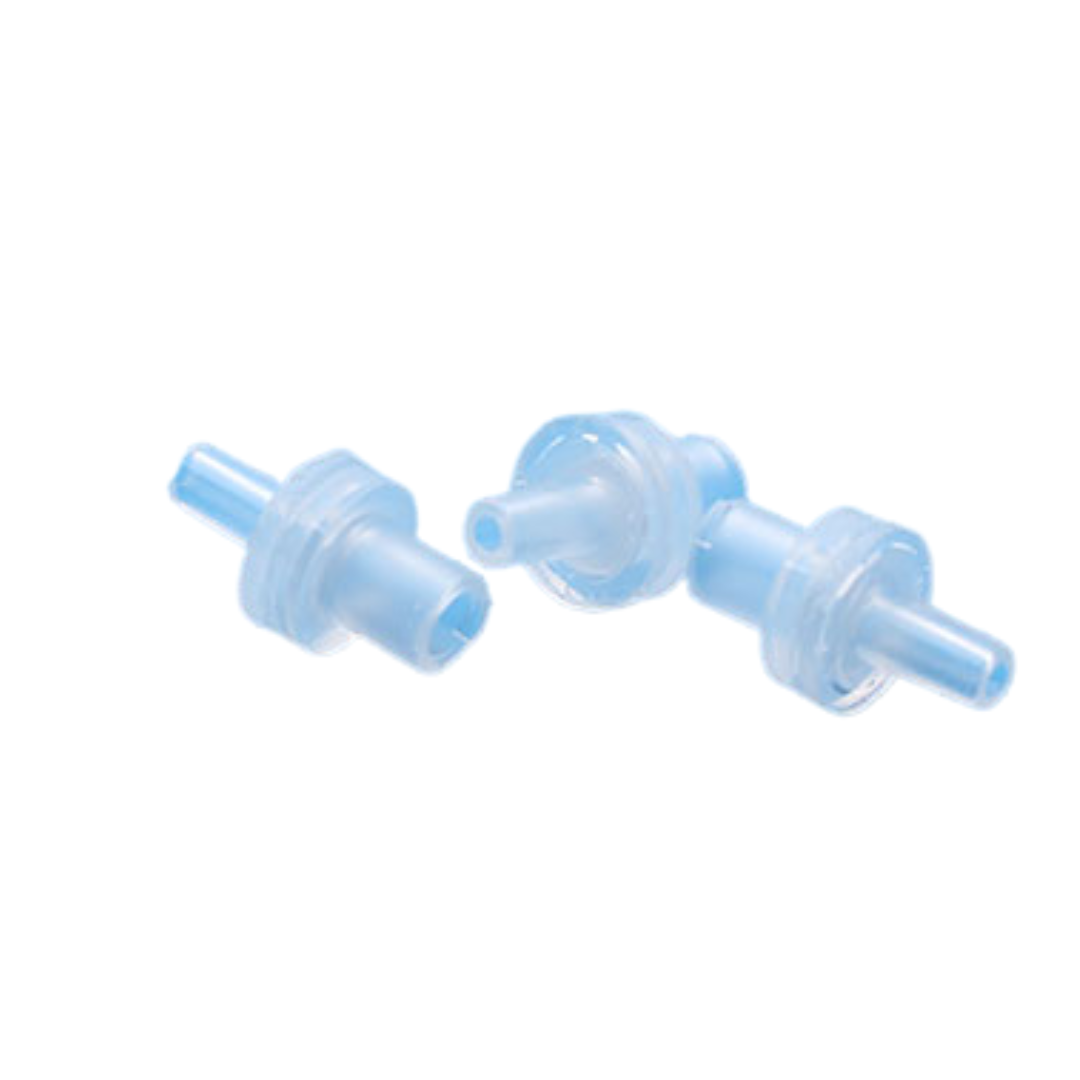

4mm Syringe Filter
Microlab Scientific 4mm Syringe Filters are specially designed for sample volumes less than 1ml and bring the highest levels of performance and purity to your research.
WhatsappOverview
Introduction
Microlab Scientific 4mm Syringe Filters are specially designed for sample volumes less than 1ml and bring the highest levels of performance and purity to your research. The filter membrane is available in Nylon, PTFE, PVDF, PES, CA, and RC.
Features
- 4 mm diameter syringe filter
- Sample volume up to 1 mL
- Low hold-up volume <10 µL ensures maximum sample recovery
- Medical PP housing raw material
- Non sterile and gamma sterile
Specifications
| Membrane Type | Nylon, Hydrophobic PTFE, Hydrophobic PVDF, PES, CA, RC, Hydrophilic PTFE, Hydrophilic PVDF |
| Pore Size (µm) | 0.22, 0.45 |
| Diameter (mm) | 4 |
| Housing Material | Medical PP |
| Connector (inlet/outlet) | Female Luer Lock/Male Luer Slip |
| Burst Pressure (psi) | 75 |
| Retain Volume (µL) | 10 |
| Sample Volume (mL) | 1 |
Applications
- HPLC samples containing low solid content
- Capillary Electrophoresis samples
- Sterile filtration of low volume samples
- UV/Vis samples
- Minimizing non-specific binding to membrane
Order Information
| Item | Description | Package |
| S04NY022 | Nonsterile Nylon Syringe Filters, Pore:0.22(μm), Housing Diameter:4(mm) | 200 |
| S04NY045 | Nonsterile Nylon Syringe Filters, Pore:0.45(μm), Housing Diameter:4(mm) | 200 |
| S04PTB022 | Nonsterile Hydrophobic PTFE Syringe Filters, Pore:0.22(μm), Housing Diameter:4(mm) | 200 |
| S04PTB045 | Nonsterile Hydrophobic PTFE Syringe Filters, Pore:0.45(μm), Housing Diameter:4(mm) | 200 |
| S04PTL022 | Nonsterile Hydrophilic PTFE Syringe Filters, Pore:0.22(μm), Housing Diameter:4(mm) | 200 |
| S04PTL045 | Nonsterile Hydrophilic PTFE Syringe Filters, Pore:0.45(μm), Housing Diameter:4(mm) | 200 |
| S04CA022 | Nonsterile CA Syringe Filters, Pore:0.22(μm), Housing Diameter:4(mm) | 200 |
| S04CA045 | Nonsterile CA Syringe Filters, Pore:0.45(μm), Housing Diameter:4(mm) | 200 |
| S04PVB022 | Nonsterile PVDF Syringe Filters, Pore:0.22(μm), Housing Diameter:4(mm) | 200 |
| S04PVB045 | Nonsterile PVDF Syringe Filters, Pore:0.45(μm), Housing Diameter:4(mm) | 200 |
| S04PES022 | Nonsterile PES Syringe Filters, Pore:0.22(μm), Housing Diameter:4(mm) | 200 |
| S04PES045 | Nonsterile PES Syringe Filters, Pore:0.45(μm), Housing Diameter:4(mm) | 200 |
| S04PVL022 | Nonsterile Hydrophilic PVDF Syringe Filters, Pore:0.22(μm), Housing Diameter:4(mm) | 200 |
| S04PVL045 | Nonsterile Hydrophilic PVDF Syringe Filters, Pore:0.45(μm), Housing Diameter:4(mm) | 200 |
| S04RC022 | Nonsterile Hydrophilic RC Syringe Filters, Pore:0.22(μm), Housing Diameter:4(mm) | 200 |
| S04RC045 | Nonsterile Hydrophilic RC Syringe Filters, Pore:0.45(μm), Housing Diameter:4(mm) | 200 |
** Sterile one and other pore size are available.
