Nitrogen Evaporator

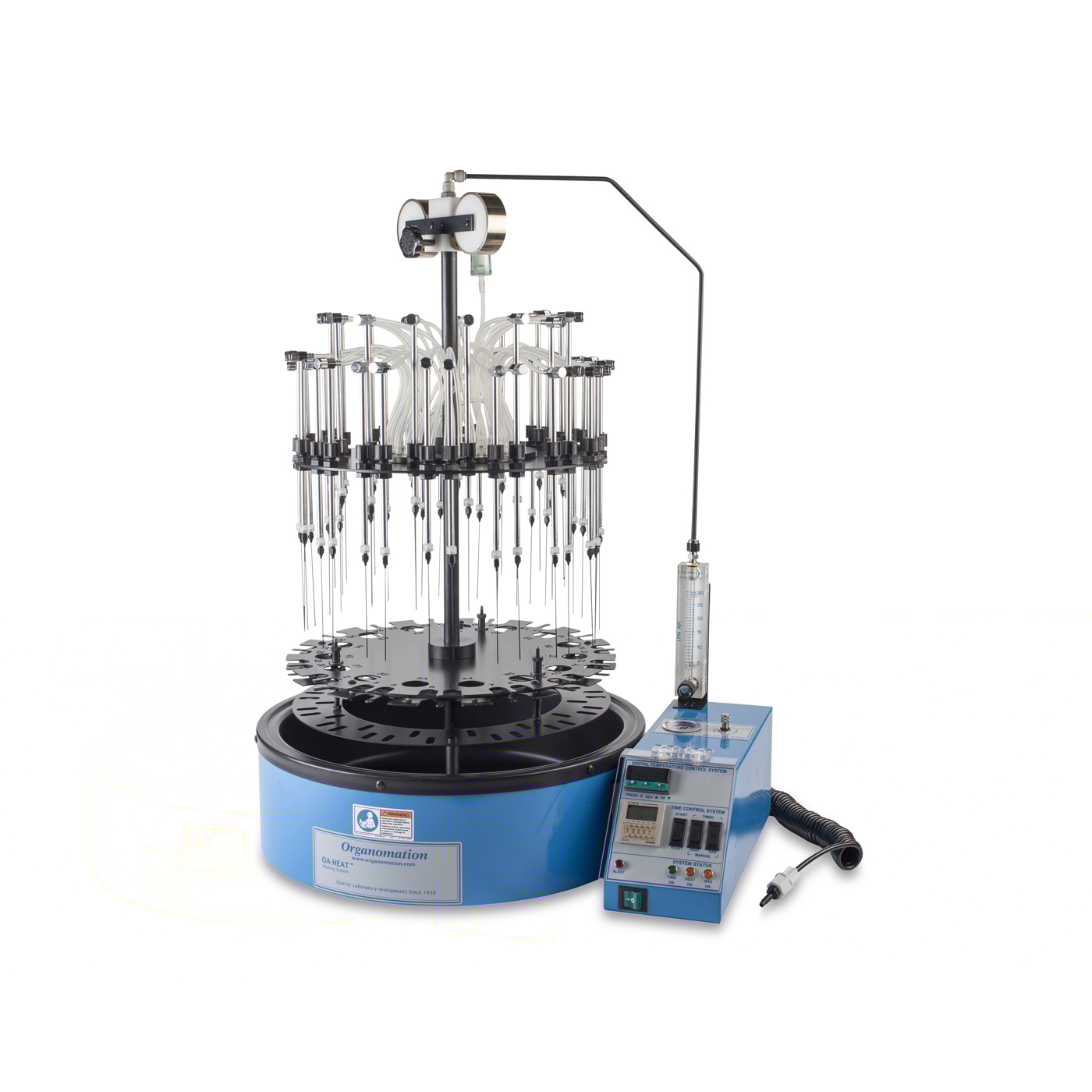

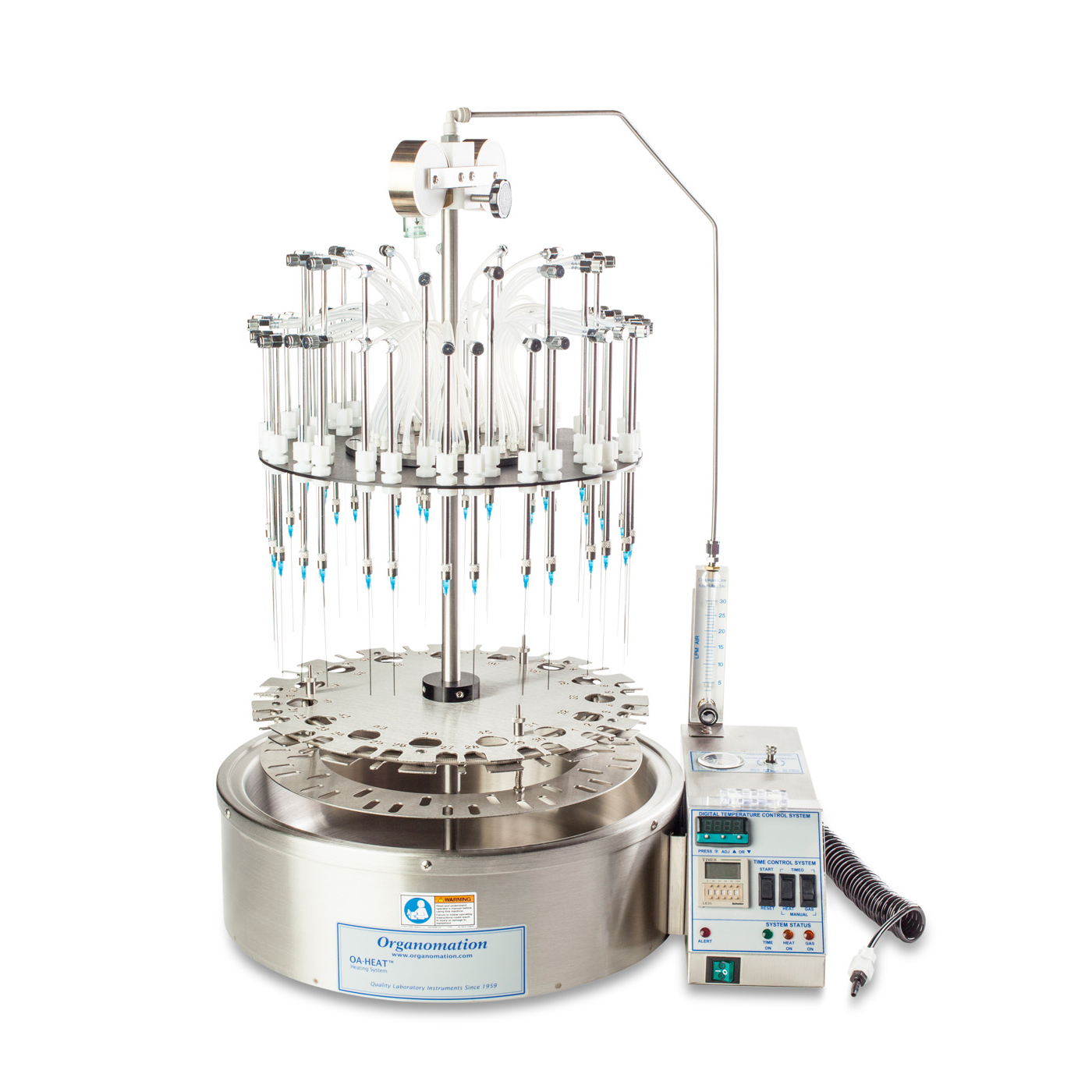

The 45 Position N-EVAP Nitrogen Evaporator (Catalog # 11645) offers the largest number of sample positions in our N-EVAP line. The sample holder has dual circular rings. The outer ring has 30 positions and can accommodate samples with an outside diameter of 10-19 mm The inner ring has 15 positions and can accommodate samples with an outside diameter of 10-30 mm.

This time-tested, durable system provides the least expensive price per position of all our N-EVAPs. The evaporative system, along with the standard flow control and pressure reducing regulator, enables the operator to achieve the desired level of concentration with efficient nitrogen usage. Our unique dual band spring hoist assembly ensures easy and effective operator use. Additionally, the 45 position N-EVAP includes a side control box. Timed, digitally controlled water bath temperatures provide even evaporation rates. The pressure regulator and timer combine to allow timed automatic gas flow cut off which slows evaporation to a minimum once the timed cycle has been completed. The heat can also be shut off with the gas after a timed cycle.



Gentle

N-EVAP nitrogen evaporators combine nitrogen blow down with a heated bath to gently concentrate delicate samples

Flexible

An adjustable sample holder design fits a wide variety of sample tubes and vials at once

Precise

Digital controls allow exact temperature regulation

Individualized Control

Optimize evaporation of diverse samples with individual gas flow control at each vial



Features

• Nitrogen filter

• Adjustable flow meter, 0-30 lpm

• Built-in pressure reducing regulator

• Side control box

• Digital temperature controller

• Electronic timer

• Safety control cover plate

• High pressure phthalate free tubing

• High temperature limit switch for safety

• Dual band spring hoist assembly (except in dry bath model)

• Precision needle valve tube assembly

• Needles, 4-inch x 19 gauge with brass plated hub and stainless-steel shaft



Options

• 220v wiring harness (Option Code# -2)

• Z-Purge/positive pressure purge case (Option Code# -Z)

• Acid resistant coating on instrument and needles (Option Code# -RT)



Specifications

Instrumental Name	45 Position N-EVAP	45 Position N-EVAP
Bath Type	Water	None
Instrumental Catalog Number	11645	11645-O
Number of Sample Positions	45	45
Overall Dimension (w x d x h)	24 x 19 x 34 in 61 x 48 x 86 cm	24 x 19 x 32 in 61 x 48 x 81 cm
Sample Holder Layout	Circular	Circular
Gas Manifold Layout	Dual Rings	Dual Rings
Outer Circle Sample Holder Test Tube Range	10-19mm OD	10-19mm OD
Inner Circle Sample Holder Test Tube Range	10-30 mm OD	10-30 mm OD
Gas Flow Meter	0-30 L/min	0-30 L/min
Stainless Steel Needles (Length & Gauge)	4.0 in x 19 ga 102 mm x 19 ga	4.0 in x 19 ga 102 mm x 19 ga
Sample Tray Lift Mechanism	Dual Band Spring Hoist Assembly	Dual Band Spring Hoist Assembly
Rotating, Leak Tight Gas Fitting	Standard	Standard
Built-in Nitrogen Gauge Input	30-110 psig	30-110 psig
Acid Resistant Coating	Optional	Optional

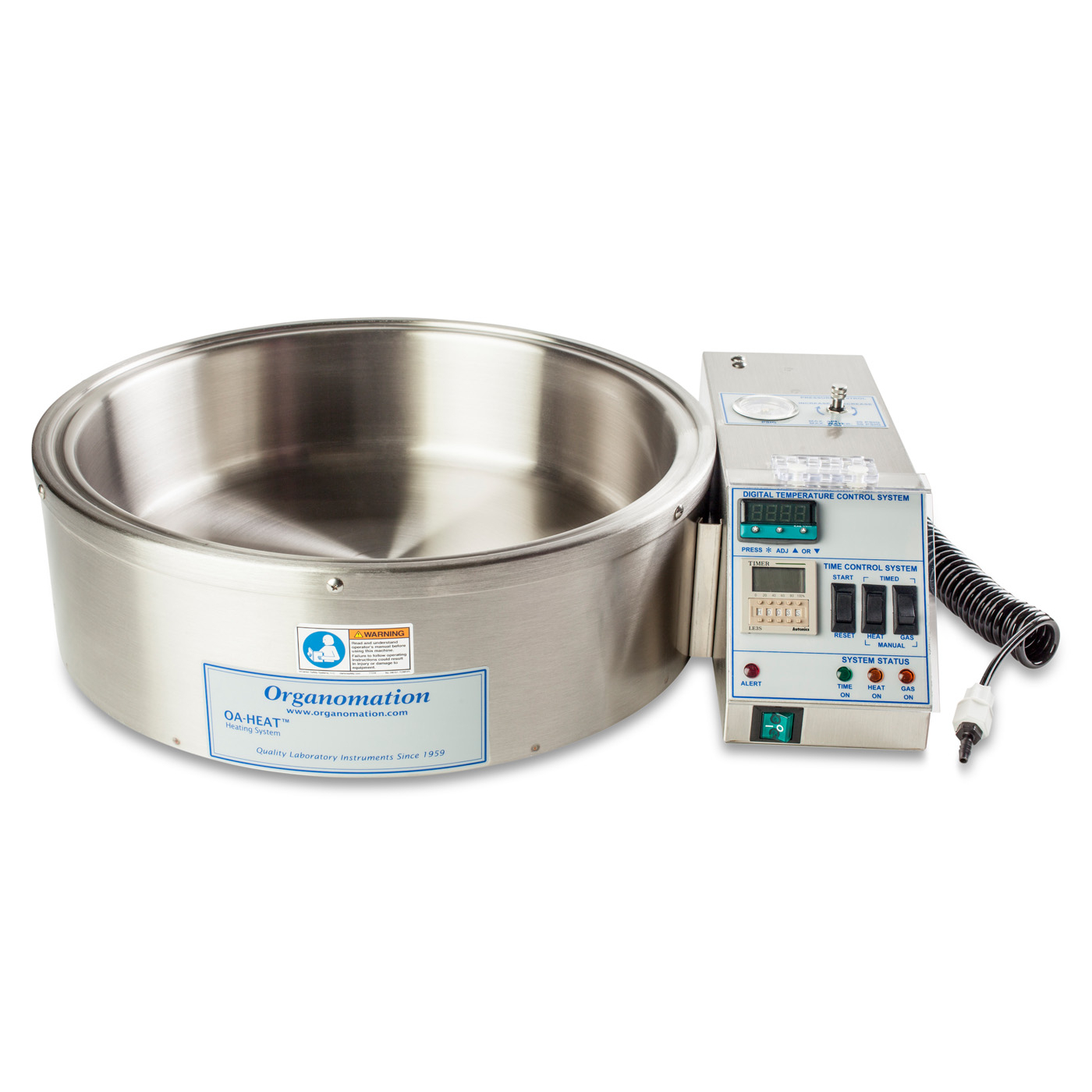

Heating Device Specs
Model Number	13165	N/A
Heating Medium	Water	None
Inside Dimensions (Diameter x Depth)	16.0 x 4.5 in 40.6 x 11.4 cm	N/A
Outside Dimensions (w x d x h)	24 x 19 x 6 in 61 x 48 x 15 cm	N/A
Total Wattage	1300 W	N/A
Bath Temperature Range	30-90 °C	N/A
Temperature Controller Type	Digital Electronic with LED Display	N/A
Controller Accuracy	+/- 2 °C	N/A
Side Mount Control Box with Timer for Nitrogen & Heat	Standard	N/A



Models

Catalog Number	Bath Type
116455	Water Bath
11645-O	No Bath*

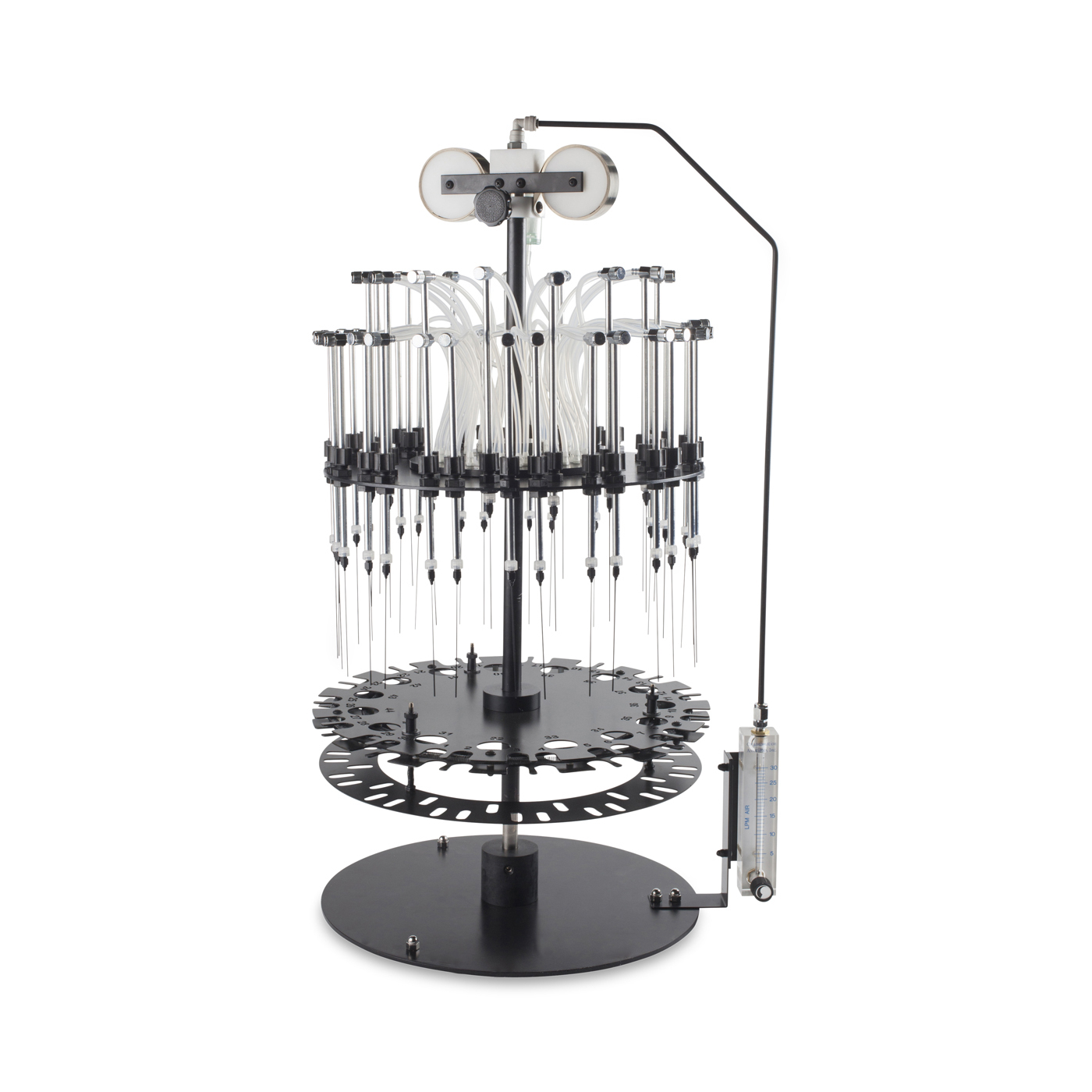

*All “-O” models come with a base and stand assembly instead of a heated bath. These instruments are designed for evaporation procedures performed at ambient temperature.
